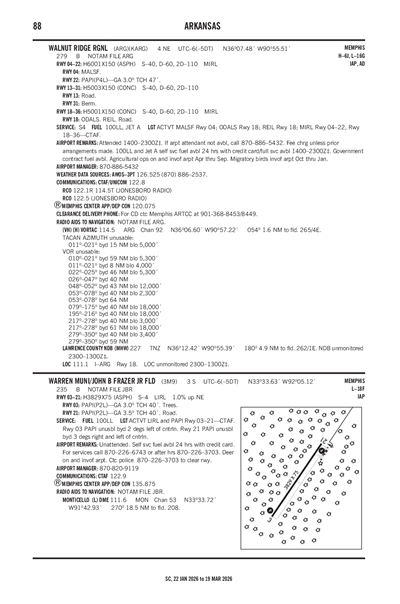

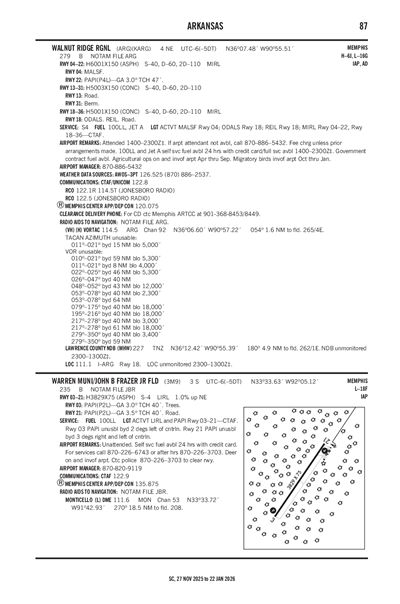

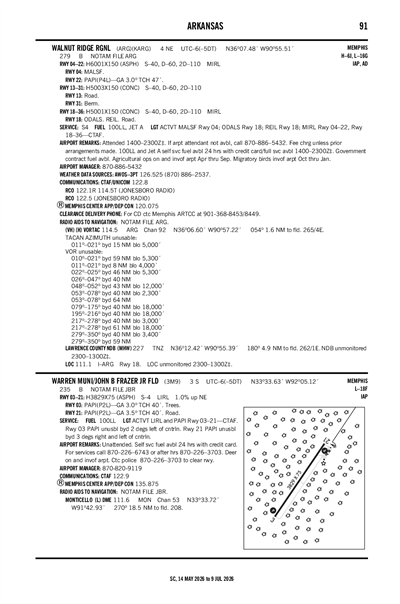

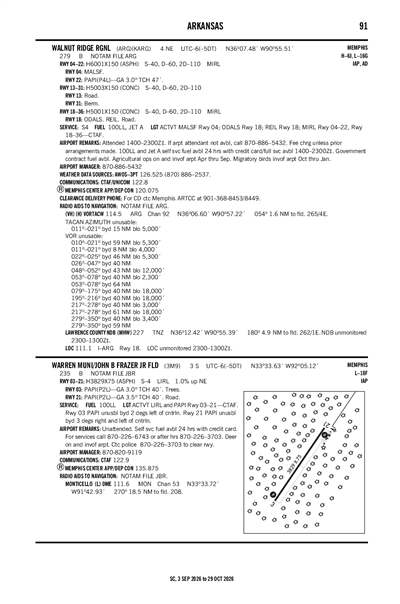

WARREN MUNI/JOHN B FRAZER JR FLD - Airport Diagram

3M9

Local 3M9

WARREN MUNI/JOHN B FRAZER JR FLD

PublicPUB

3 miles S of WARREN, AR, US

View on Map

Status

Operational

Coordinates

33° 33' 38"N 92° 05' 07"W

Elevation

235' MSL

Pattern Alt

1235' MSL

Mag Variation

0°

Declination

0°

Fuel

100LL

FSS

JONESBORO (JBR)

Sectional

MEMPHIS

ARTCC

MEMPHIS (ZME)

Data Effective

9/3/26-10/1/26

KLLQ (17nm) VFR

10:53 PM CDT RAW

Few 10,000'

Viz

10sm

Temp

80°F

Dew

74°F

Pres

29.88"Hg

Wind

Calm

RMK

AO2 SLP115 T02670233

METAR KLLQ 070353Z AUTO 00000KT 10SM FEW100 27/23 A2988 RMK AO2 SLP115 T02670233

Add Your Business

3M9 FBOs

Promote Listing

Warren Municipal Airport

Phone: (870) 226-6743

0 Reviews (Read | Sign In To Write)

Independent

As of 8/20	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.75
Full Serve

Fuel Notes

Prices include tax
Assistance is available for self-serve 100LL.

Your Information

Business

Common

CTAF	122.9
ACTVT LIRL & PAPI RWY 03/21 - CTAF

Center

MEMPHIS CENTER	135.875
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 135.875/269.35 (GREENVILLE RCAG & PINE BLUFF RCAG).
MEMPHIS CENTER	135.875
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 135.875/269.35 (GREENVILLE RCAG & PINE BLUFF RCAG).

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

TAKEOFF MINIMUMS

Instrument Approach

Terminal Area Forecast

KLLQ (17nm)

RAW

Reported

Sun, 9/6 6:20 PM CDT

Valid

Sun, 9/6 7:00 PM CDT - Mon, 9/7 7:00 PM CDT

VFR

7:00 PM CDT - 10:00 AM CDT

Sky Clear

Viz

6sm

Wind

VRB° 4kts

VFR

10:00 AM CDT - 7:00 PM CDT

Few 6,000'

Viz

6sm

Wind

060° 6kts

TAF KLLQ 062320Z 0700/0724 VRB04KT P6SM SKC
FM071500 06006KT P6SM FEW060

3M9

No NOTAM Available

ATC Tower

Attendance

UNATNDD
FOR SERVICES CALL 870-226-6743 OR AFT HRS 870-226-3703.

Owner

CITY OF WARREN
PO BOX 352
WARREN, AR 71671
Phone: 870-226-6743

Manager

DR. JOE WHARTON
10 SYLVAN HILLS DR.
WARREN, AR 71671
Phone: 870-820-9119

FSS

JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF

NOTAM

JBR

Light Schedule

Lights

ACTVT LIRL & PAPI RWY 03/21 - CTAF

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 03/21

Dimensions

3829 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

LOW

Pavement Class

Single Wheel

4,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 03	Runway 21
True Heading	34°	214°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	33° 33' 22"N	33° 33' 53"N
Longitude	92° 05' 20"W	92° 04' 55"W
Elevation	197'	235'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3.5°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110*G	THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2	DEER ON & INVOF ARPT. CTC POLICE 870-226-3703 TO CLEAR RWY.
A14	COMMISSION CHAIRMAN.
A17-M1	FOR SERVICES CALL 870-226-6743 OR AFT HRS 870-226-3703.
A43-03	PAPI UNUSBL BYD 2 DEGS LEFT OF CNTRLN.
A43-21	PAPI UNUSBL BYD 3 DEGS RIGHT AND LEFT OF CNTRLN.
A70-100LL	SELF SVC FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APT	ACTVT LIRL & PAPI RWY 03/21 - CTAF

WARREN MUNI/JOHN B FRAZER JR FLD (IATA: 3M9) is a public airport located in WARREN, AR, US.
