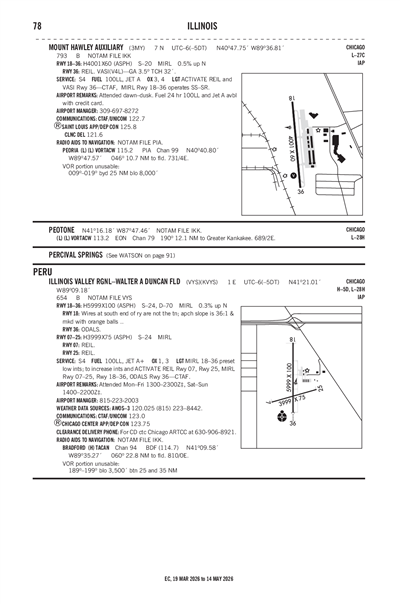

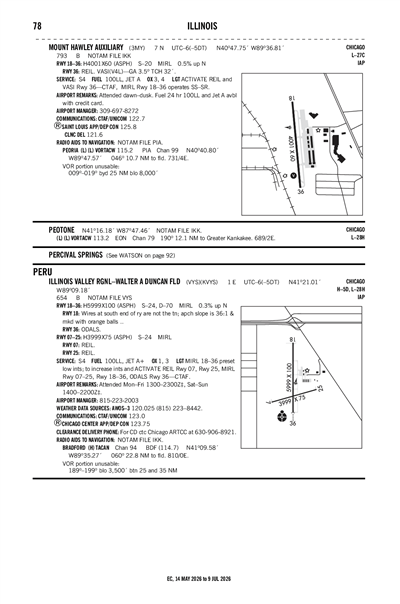

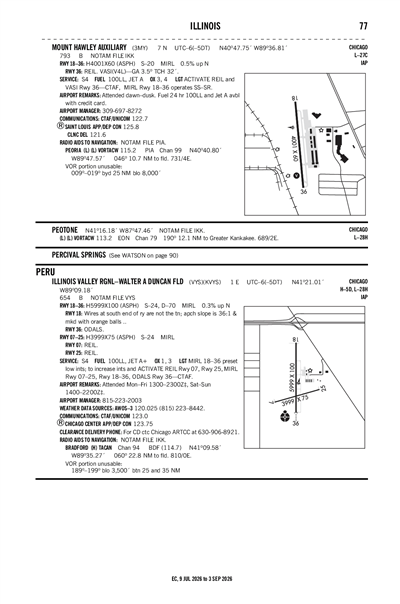

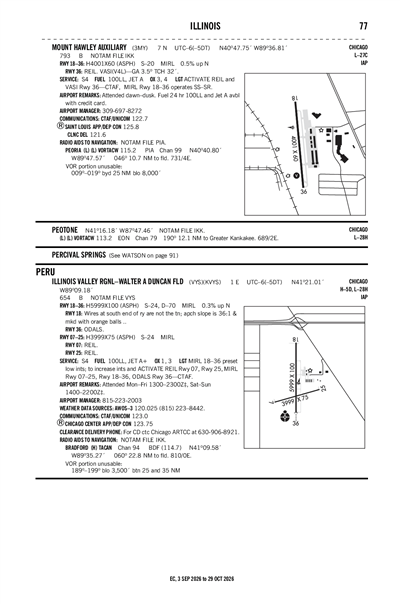

MOUNT HAWLEY AUXILIARY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3MY
MOUNT HAWLEY AUXILIARY
PublicPUB

7 miles N of PEORIA, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 47' 45"N 89° 36' 48"W
793' MSL
1793' MSL
02W
JET A, 100LL
KANKAKEE (IKK)
CHICAGO
CHICAGO (ZAU)
11/27/25-12/25/25
KPIA (8nm) VFR
3:54 AM CST
Few 5,500'
10sm
4°F
1°F
30.10"Hg
200° 5kts
AO2 SLP208 T11561172
METAR KPIA 050954Z 20005KT 10SM FEW055 M16/M17 A3010 RMK AO2 SLP208 T11561172
+ Add Your Business

3MY FBOs

Promote Listing
Mount Hawley Auxiliary Airport
UNICOM: 122.7
Phone: (309) 693-2372
Other: (309) 303-1001
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 11/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.00 4.00
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPIA (8nm)
Thu, 12/4 11:55 PM CST
Fri, 12/5 12:00 AM CST - Sat, 12/6 12:00 AM CST
VFR
12:00 AM CST - 10:00 AM CST
Sky Clear
6sm
170° 4kts
VFR
10:00 AM CST - 8:00 PM CST
Scattered 25,000'
6sm
200° 10kts
VFR
8:00 PM CST - 12:00 AM CST
Broken 6,000'
6sm
200° 5kts
TAF KPIA 050555Z 0506/0606 17004KT P6SM SKC
   FM051600 20010KT P6SM SCT250
   FM060200 20005KT P6SM BKN060
3MY
EffectiveExpiresCategoryNOTAM
Domestic
12/6/25
0100Z
12/6/25
1600Z
!IKK 12/045 3MY AD AP FUEL NOT AVBL 2512060100-2512061600
12/4/25
2113Z
12/5/25
2113Z
!IKK 12/079 3MY APRON ALL FICON ICE 4FT SN PILES OBS AT 2512042113. 2512042113-2512052113
12/4/25
2112Z
12/5/25
2112Z
!IKK 12/078 3MY TWY ALL FICON PATCHY ICE 4FT SN PILES OBS AT 2512042112. 2512042112-2512052112
11/14/25
1608Z
1/14/26
2359Z
!IKK 11/079 3MY OBST TOWER LGT (ASR 1257577) 404455.40N0892728.70W (7.6NM ESE 3MY) 1021.0FT (257.9FT AGL) U/S 2511141608-2601142359
11/9/25
1257Z
3/9/26
1257Z
!IKK 11/041 3MY OBST TOWER LGT (ASR 1226558) 404257.10N0892750.40W (8.3NM SE 3MY) 1066.9FT (265.1FT AGL) U/S 2511091257-2603091257
11/6/25
2146Z
3/31/26
2359Z
!IKK 11/031 3MY OBST TOWER LGT (ASR 1009534) 404300.00N0892556.00W (9.5NM ESE 3MY) 1094.2FT (310.0FT AGL) U/S 2511062146-2603312359
11/5/25
1825Z
2/3/26
2359Z
!IKK 11/020 3MY OBST TOWER LGT (ASR 1009532) 404523.00N0893529.00W (2.6NM SSE 3MY) 1027.9FT (232.9FT AGL) U/S 2511051825-2602032359
10/28/25
1922Z
1/28/26
2359Z
!IKK 10/188 3MY OBST TOWER LGT (ASR 1008043) 404620.00N0892632.00W (7.9NM E 3MY) 1122.0FT (321.5FT AGL) U/S 2510281922-2601282359
No
DAWN-DUSK
METROPOLITAN AIRPORT AUTH OF PEORIA
GEN DOWNING PEORIA INTL ARPT, 6100 W. DIRKSEN PKWY
PEORIA, IL 61607
Phone: 309-697-8272
GENE OLSON
GEN DOWNING PEORIA INTL ARPT, 6100 W. DIRKSEN PKWY
PEORIA, IL 61607
Phone: 309-697-8272
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
IKK
--
ACTVT REIL & VASI RY 36.- CTAF, MIRL RWY 18/36 OPERATES SS-SR.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

4001 ft. x 60 ft.
ASPH
Good
NONE
MED

20,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 175°355°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 40° 48' 05"N 40° 47' 25"N
Longitude 89° 36' 51"W 89° 36' 46"W
Elevation 793' 774'
Threshold Crossing Height -- 32 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
No remarks are listed for this airport.
MOUNT HAWLEY AUXILIARY (IATA: 3MY) is a public airport located in PEORIA, IL.
