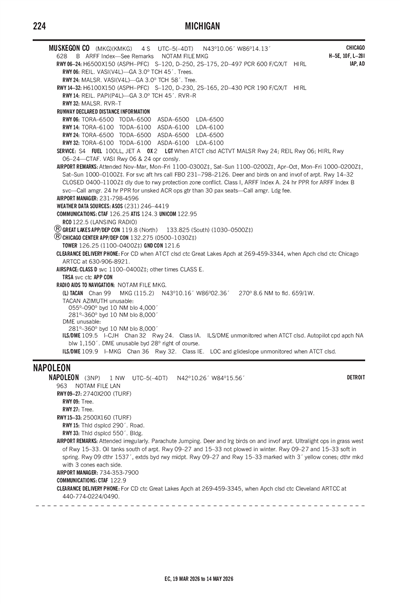

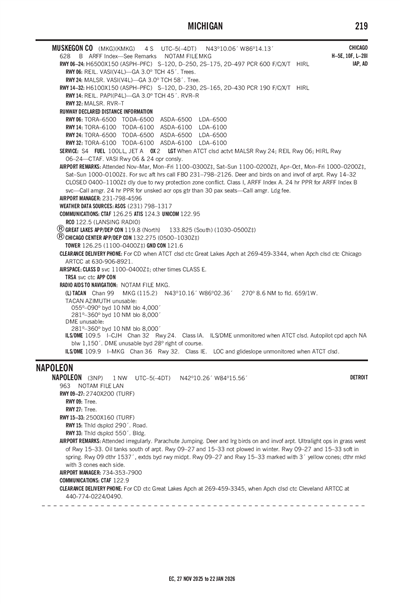

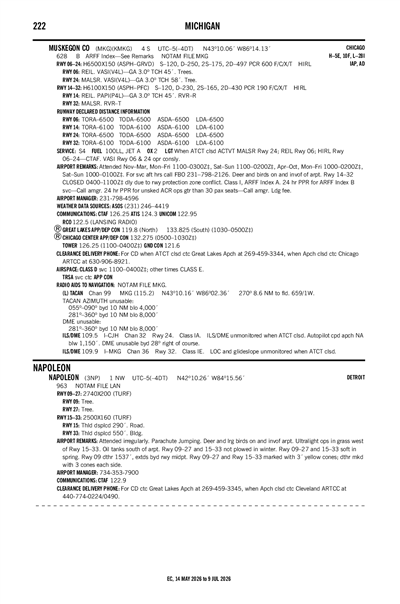

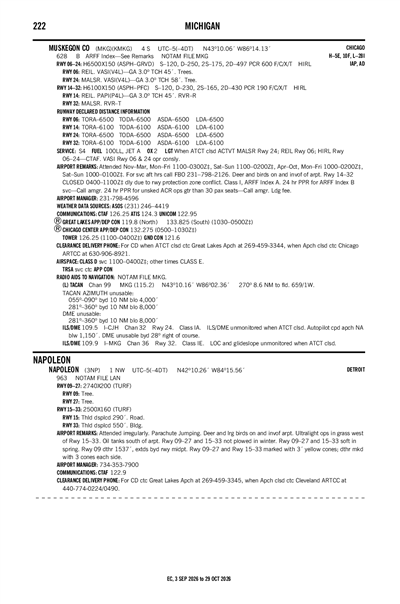

NAPOLEON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3NP
Local 3NP
NAPOLEON
PublicPUB

1 miles NW of NAPOLEON, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 10' 16"N 84° 15' 34"W
Elevation
963' MSL
Pattern Alt
1963' MSL
Mag Variation
7°W
Declination
5°W
Fuel
None Listed
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KJXN (10nm) VFR
10:56 AM EDT
Clear
10sm
40°F
25°F
29.70"Hg
100° 12kts
Gusts 25kts
AO2 SLP065 T00441039 58050
METAR KJXN 151456Z 10012G25KT 10SM CLR 04/M04 A2970 RMK AO2 SLP065 T00441039 58050
+ Add Your Business

3NP FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KJXN (10nm)
Sun, 3/15 7:20 AM EDT
Sun, 3/15 8:00 AM EDT - Mon, 3/16 8:00 AM EDT
VFR
8:00 AM EDT - 9:00 AM EDT
Broken 8,000'
6sm
110° 16kts
Gusts 26kts
VFR
9:00 AM EDT - 1:00 PM EDT
Few 4,000'
6sm
140° 15kts
Gusts 25kts
VFR
1:00 PM EDT - 6:00 PM EDT
Scattered 4,000'
6sm
170° 20kts
Gusts 38kts
VFR
6:00 PM EDT - 12:00 AM EDT
Light Showers and Rain
Broken 4,000'
6sm
180° 19kts
Gusts 32kts
IFR
9:00 PM EDT - 12:00 AM EDT
Thunderstorm and Rain and Mist
Broken 3,000'
2sm
190° 22kts
Gusts 40kts
MVFR
12:00 AM EDT - 8:00 AM EDT
Light Showers and Rain and Mist
Broken 1,000'
4sm
200° 15kts
Gusts 28kts
TAF KJXN 151120Z 1512/1612 11016G26KT P6SM BKN080 WS020/13048KT
   FM151300 14015G25KT P6SM FEW040
   FM151700 17020G38KT P6SM SCT040
   FM152200 18019G32KT P6SM -SHRA BKN040 WS015/18050KT
   PROB30 1601/1604 19022G40KT 2SM TSRA BR BKN030CB
   FM160400 20015G28KT 4SM -SHRA BR BKN010
3NP
No NOTAM Available
No
UNATNDD
BSC REALTY, LLC
211 N UNION ST
TECUMSEH, MI 49286
Phone: 517-499-8421
SAMUEL OWEN KELLY
211 N UNION ST
TECUMSEH, MI 49286
Phone: 734-353-7900
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Parachute Jump Activity

Runway 09/27

2740 ft. x 200 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left
Markings
Markings Condition
Latitude 42° 10' 16"N 42° 10' 16"N
Longitude 84° 15' 47"W 84° 15' 11"W
Elevation 963' 963'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

2500 ft. x 160 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 153°333°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 10' 26"N 42° 10' 04"N
Longitude 84° 15' 46"W 84° 15' 31"W
Elevation 963' 963'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1OIL TANKS SOUTH OF ARPT.
A110-2ULTRALIGHT OPS IN GRASS WEST OF RWY 15/33.
A110-4DEER & LRG BIRDS ON & INVOF ARPT.
A110-6FOR CD CTC GREAT LAKES APCH AT 269-459-3345, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A110-7RWY 09 DTHR 1537 FT, EXTDS BYD RWY MIDPT.
A30-09/27NOT PLOWED IN WINTER.
A30-15/33NOT PLOWED IN WINTER.
A33-09/27_CONDSOFT IN SPRING.
A33-15/33_CONDSOFT IN SPRING.
A42-09_MARK3 FT YELLOW CONES; DTHR MKD WITH 3 CONES EACH SIDE.
A42-15_MARK3 FT YELLOW CONES; DTHR MKD WITH 3 CONES EACH SIDE.
A42-27_MARK3 FT YELLOW CONES.
A42-33_MARK3 FT YELLOW CONES; DTHR MKD WITH 3 CONES EACH SIDE.
A52-33ALSO +11 FT PARKED VEHICLES & +4 FT FENCE AT THR.
A57-09APCH RATIO 17:1 TO DTHR OVR 111 FT TREE, 1971 FT DIST, 113 FT R.
A57-15APCH RATIO 4:1 TO DTHR OVR 41 FT TREE, 183 FT DIST, 134 FT R.
A57-33APCH RATIO 19:1 TO DTHR OVR 83 FT TREE, 1586 FT DIST, 207 FT L.
E111ESTABD BFR 1959.
NAPOLEON (IATA: 3NP) is a public airport located in NAPOLEON, MI, US.
