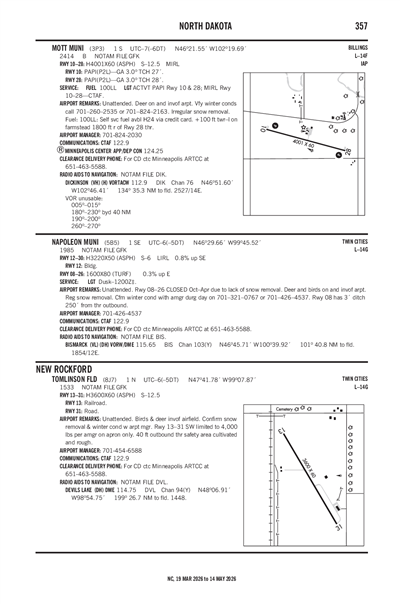

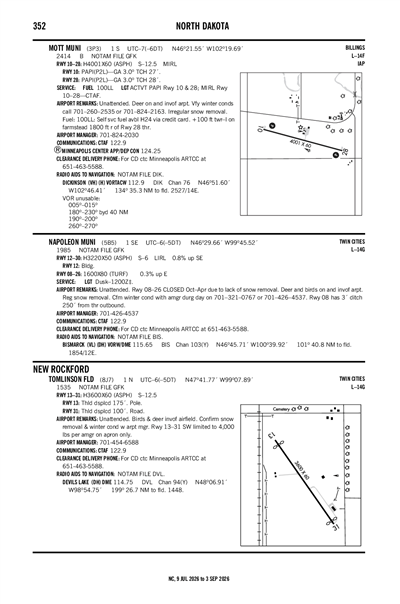

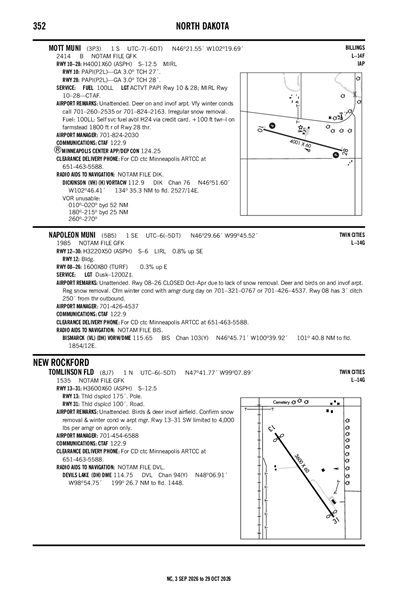

MOTT MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3P3
Local 3P3
MOTT MUNI
PublicPUB

1 miles S of MOTT, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 21' 33"N 102° 19' 42"W
Elevation
2414' MSL
Pattern Alt
3414' MSL
Mag Variation
7°E
Declination
7°E
Fuel
100LL
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/14/26-6/11/26
KHEI (25nm) MVFR
11:53 PM MDT
Mist
Clear
5sm
49°F
48°F
29.99"Hg
Calm
AO2 SLP154 T00940089 10222 20083 58000 $
METAR KHEI 040553Z AUTO 00000KT 5SM BR CLR 09/09 A2999 RMK AO2 SLP154 T00940089 10222 20083 58000 $
+ Add Your Business

3P3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.

Center

MINNEAPOLIS CENTER 124.25
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC (ZMP) ON FREQS 124.25/236.825 (DICKINSON RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDIK (33nm)
Wed, 6/3 11:32 PM MDT
Thu, 6/4 12:00 AM MDT - Fri, 6/5 12:00 AM MDT
VFR
12:00 AM MDT - 6:00 AM MDT
Sky Clear
6sm
280° 5kts
VFR
6:00 AM MDT - 9:00 AM MDT
Broken 20,000'
Scattered 5,000'
6sm
260° 6kts
VFR
9:00 AM MDT - 3:00 PM MDT
Broken 20,000'
Broken 8,000'
6sm
330° 5kts
VFR
3:00 PM MDT - 9:00 PM MDT
Light Showers and Rain
Overcast 6,000'
N/A
Calm
VFR
3:00 PM MDT - 9:00 PM MDT
Overcast 10,000'
Broken 6,000'
6sm
VRB° 6kts
VFR
9:00 PM MDT - 12:00 AM MDT
Overcast 10,000'
Broken 6,000'
6sm
340° 5kts
TAF KDIK 040532Z 0406/0506 28005KT P6SM SKC
   FM041200 26006KT P6SM SCT050 BKN200
   FM041500 33005KT P6SM BKN080 BKN200
   FM042100 VRB06KT P6SM BKN060 OVC100
   PROB30 0421/0503 -SHRA OVC060
   FM050300 34005KT P6SM BKN060 OVC100
3P3
EffectiveExpiresCategoryNOTAM
Domestic
6/3/26
0017Z
7/4/26
1700Z
!GFK 06/032 3P3 OBST TOWER LGT (ASR 1241612) 462717.80N1021913.10W (5.8NM NE 3P3) 3083.0FT (478.0FT AGL) U/S 2606030017-2607041700
No
UNATNDD
MOTT AIRPORT AUTHORITY
406 MEADOW LANE
MOTT, ND 58646
Phone: 701-260-3525
DEREK MAYER
406 MEADOW LANE
MOTT, ND 58646
Phone: 701-824-2030
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 10/28

4001 ft. x 60 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 106°286°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 21' 38"N 46° 21' 28"N
Longitude 102° 20' 09"W 102° 19' 14"W
Elevation 2,410' 2,411'
Threshold Crossing Height 27 ft. AGL 28 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11OWEN BLICKENSDERFER CHRMN APT AUTH 701-567-3861.
A110-1+100 FT TWR - L ON FARMSTEAD 1800 FT R OF RWY 28 THR.
A110-2VFY WINTER CONDS CALL 701-260-2535 OR 701-824-2163.
A110-3DEER ON & INVOF ARPT.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A14ADDL CTC DEREK MAYER 701-260-3525.
A70-100LLSELF SVC FUEL AVBL H24 VIA CREDIT CARD.
A81-APTACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
MOTT MUNI (IATA: 3P3) is a public airport located in MOTT, ND, US.
