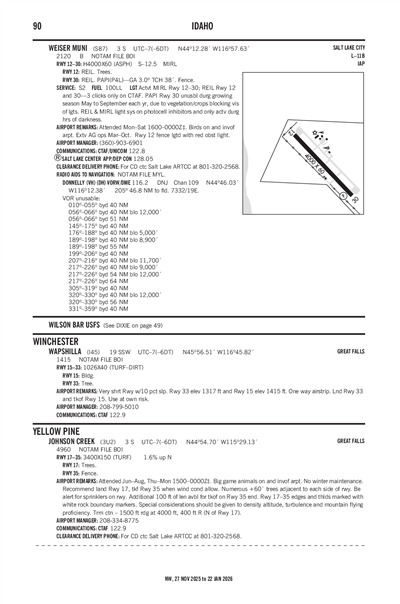

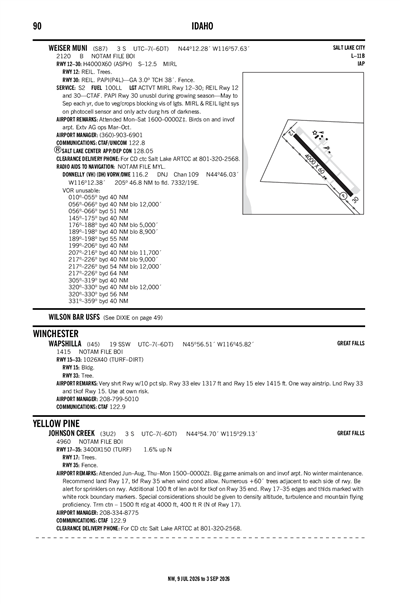

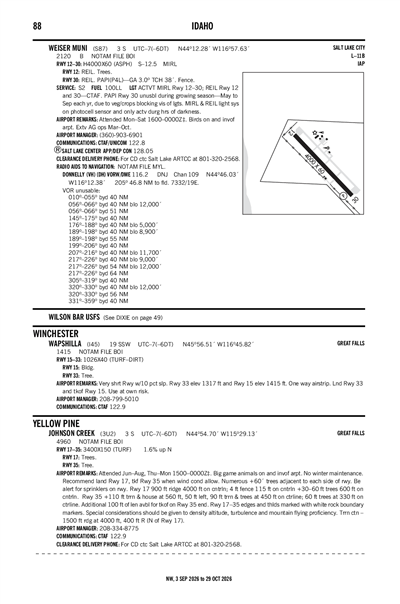

JOHNSON CREEK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3U2
Local 3U2
JOHNSON CREEK
PublicPUB

3 miles S of YELLOW PINE, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 54' 42"N 115° 29' 08"W
Elevation
4960' MSL
Pattern Alt
5960' MSL
Mag Variation
13°E
Declination
17°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
10/1/26-10/29/26
KMYL (26nm) VFR
10:51 AM MDT
Clear
10sm
50°F
31°F
30.29"Hg
Calm
AO2 SLP255 T01001006 $
METAR KMYL 171651Z AUTO 00000KT 10SM CLR 10/M01 A3029 RMK AO2 SLP255 T01001006 $
+ Add Your Business

3U2 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KMYL (26nm)
Sat, 10/17 5:20 AM MDT
Sat, 10/17 6:00 AM MDT - Sun, 10/18 6:00 AM MDT
VFR
6:00 AM MDT - 1:00 PM MDT
Scattered 25,000'
6sm
VRB° 3kts
VFR
1:00 PM MDT - 7:00 PM MDT
Scattered 25,000'
6sm
200° 11kts
VFR
7:00 PM MDT - 6:00 AM MDT
Scattered 25,000'
6sm
VRB° 3kts
TAF KMYL 171120Z 1712/1812 VRB03KT P6SM SCT250
   FM171900 20011KT P6SM SCT250
   FM180100 VRB03KT P6SM SCT250
3U2
No NOTAM Available
No
JUN-AUG THU-MON 0800-1700
CARETAKER IN ATTENDANCE DURG SUMMER MONTHS.
STATE OF ID/ITD-DIV OF AERONAUTICS
BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
ID DIV OF AERONAUTICS
BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 17/35

3400 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 192°12°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 44° 54' 59"N 44° 54' 26"N
Longitude 115° 29' 03"W 115° 29' 13"W
Elevation 4,960' 4,906'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ADDNL 100 FT OF LEN AVBL FOR TKOF ON RWY 35 END.
A110-10RWY 17: 900 FT RIDGE 4000 FT ON CNTRLN; 4 FT FENCE 115 FT ON CNTRLN + 30-60 FT TREES 600 FT ON CNTRLN.
A110-11RWY 35: +110 FT TRRN & HOUSE AT 560FT, 50FT LEFT, 90FT TRRN & TREES AT 450 FT ON CTRLINE; 60 FT TREES AT 330 FT ON CTRLINE.
A110-2NO WINTER MAINTENANCE.
A110-3NUMEROUS +60' TREES ADJACENT TO EACH SIDE OF RY.
A110-4BE ALERT FOR SPRINKLERS ON RY.
A110-5RECOMMEND LAND RWY 17; TKOF RWY 35 WHEN WIND CONDITIONS ALLOW.
A110-6BIG GAME ANIMALS ON & INVOF AIRPORT.
A110-7SPECIAL CONSIDERATIONS SHOULD BE GIVEN TO DENSITY ALTITUDE, TURBULENCE, AND MOUNTAIN FLYING PROFICIENCY.
A110-8FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-9TRRN CTN - 1500 FT RDG AT 4000 FT, 400 FT R (N OF RWY 17).
A17-M1CARETAKER IN ATTENDANCE DURG SUMMER MONTHS.
A42-17_MARK17/35 EDGES & THRS MARKED WITH WHITE ROCK BOUNDARY MARKERS.
A52-1745 FT TREES AT 50 FT, 85FT LEFT.
A52-3525 FT TREE @30 FT, 100 RT.
A57-17RISING TRRN AND NUMEROUS 60 FT-80 FT TREES ARE PRESENT IN ALL QUADRANTS OF THE ARPT.
A57-35RISING TRRN AND NUMEROUS 60 FT - 80 FT TREES ARE PRESENT IN ALL QUADRANTS OF THE ARPT.
A841/2 SEGMENTED CIRCLE.
E111ESTAB PRIOR TO OCT 1959.
JOHNSON CREEK (IATA: 3U2) is a public airport located in YELLOW PINE, ID, US.
