3U3
BOWMAN FLD
Public
PUB
3 miles NE of ANACONDA, MT
View on
Map
Status
Operational
Coordinates
46° 09' 12"N
112° 52' 04"W
Elevation
5034' MSL
Pattern Alt
6034' MSL
Mag Variation
14E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
4/18/24-5/16/24
K3U3
VFR
2:15 AM MDT
RAW
No Clouds
Viz
10sm
Temp
43°F
Dew
28°F
Pres
29.76"Hg
Wind
Calm
K3U3 260815Z AUTO 00000KT 10SM 06/M02 A2976
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
3U3 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
3U3 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
3U3 Hotels
No hotels are listed for this airport.
3U3 Restaurants
No restaurants are listed for this airport.
3U3 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
AWOS-AV
AWOS-AV
406-563-8275
122.8

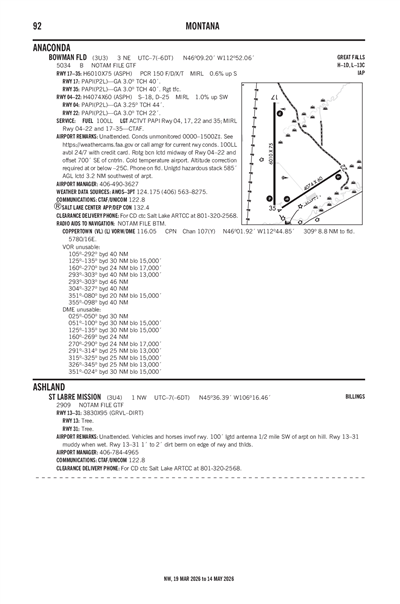

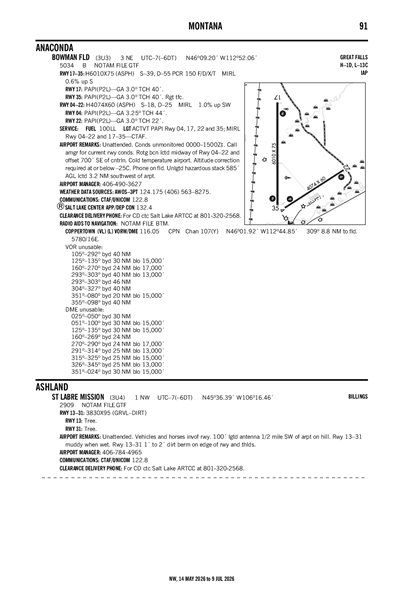

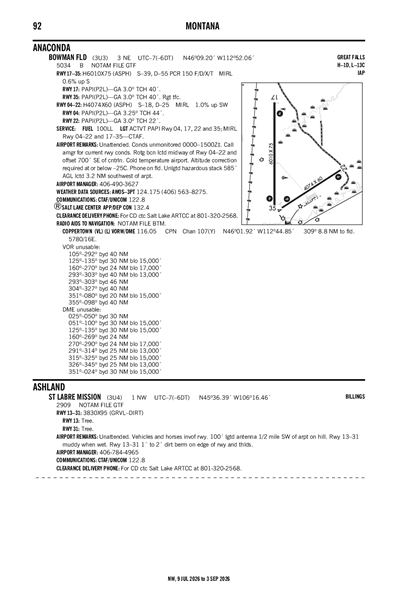

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS)-B
VOR-A
Terminal Area Forecast
KBTM (19nm)
RAW
Reported
Thu, 4/25 11:20 PM MDT
Valid
Fri, 4/26 12:00 AM MDT - Sat, 4/27 12:00 AM MDT
VFR
12:00 AM MDT - 1:00 AM MDT
Broken 11,000'
Viz
6sm
Wind
160° 6kts
VFR
1:00 AM MDT - 11:00 AM MDT
Overcast 10,000'
Broken 5,000'
Viz
6sm
Wind
150° 5kts
MVFR
11:00 AM MDT - 6:00 PM MDT
Light Rain and Mist
Overcast 2,500'
Viz
5sm
Wind
330° 8kts
IFR
6:00 PM MDT - 12:00 AM MDT
Light Rain and Mist
Overcast 2,000'
Viz
2sm
Wind
340° 10kts
KBTM 260520Z 2606/2706 16006KT P6SM BKN110
FM260700 15005KT P6SM BKN050 OVC100
FM261700 33008KT 5SM -RA BR OVC025
FM270000 34010KT 2SM -RA BR OVC020
3U3
No NOTAM Available
ATC Tower
No
Attendance
UNATNDD
Owner
ANACONDA DEERLODGE COUNTY
800 S. MAIN ST
ANACONDA, MT 59711
Phone: 406-563-4000
Manager
MONTE BELGARDE
800 S MAIN ST
ANACONDA, MT 59711
Phone: 406-490-3627
FSS
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
NOTAM
GTF
Light Schedule
--
Lights
ACTVT PAPI RWY 04, 17, 22, & 35; MIRL RWY 04/22 & 17/35 - CTAF.
Beacon
N/A
ROTG BCN LCTD MIDWAY OF RY 04/22 & OFFSET 700 FT SE OF CNTRLN.
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
9
# Multi Engine
2
# Jets
0
# Helicopters
1
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Air Ambulance
Runway 04/22
Dimensions
4074 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
18,000lbs
Double Wheel
25,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 04
Runway 22
True Heading
57°
237°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
46° 08' 49"N
46° 09' 11"N
Longitude
112° 52' 10"W
112° 51' 21"W
Elevation
5,030'
4,989'
Threshold Crossing Height
44 ft. AGL
22 ft. AGL
Visual Glide Path Angle
3.25°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 17/35
Dimensions
6010 ft. x 75 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 17
Runway 35
True Heading
180°
360°
Traffic Pattern
Right
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
46° 09' 50"N
46° 08' 51"N
Longitude
112° 52' 16"W
112° 52' 16"W
Elevation
4,998'
5,033'
Threshold Crossing Height
40 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3
UNLIGHTED HAZARDOUS STACK; 585 FT AGL LCTD 3.2 NM SW OF ARPT.
A110-4
COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -25C.
A110-5
AWOS AVBL - CTAF. CLICK MIC FOUR TIMES.
A110-6
FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
BOWMAN FLD (IATA: 3U3) is a public airport located in ANACONDA, MT.
