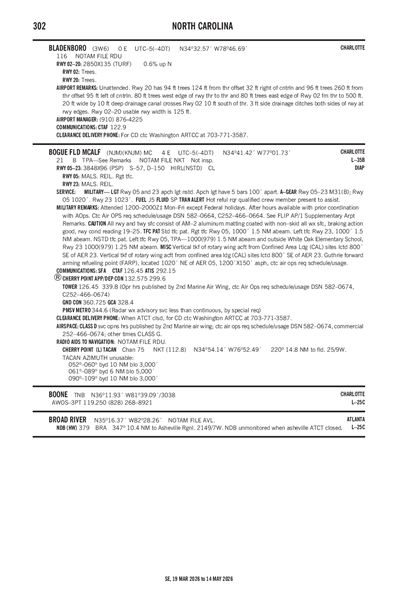

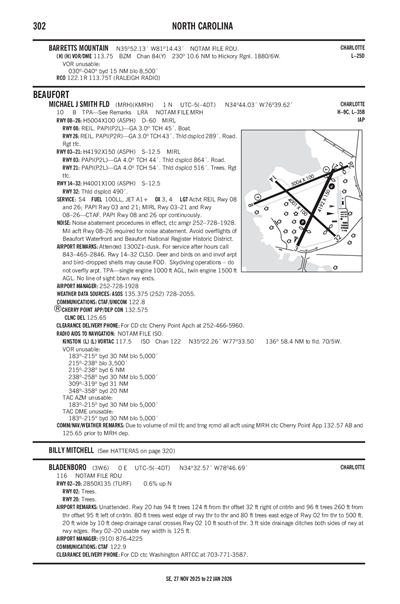

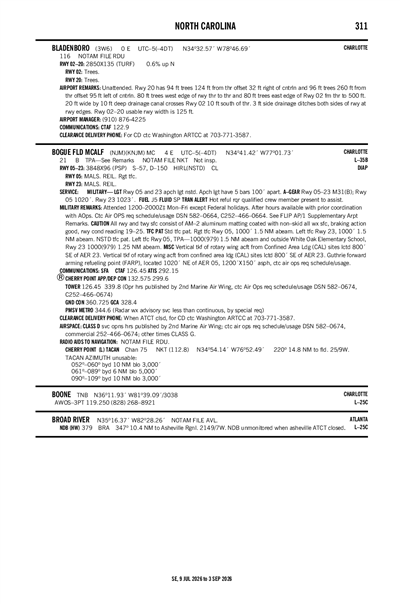

BLADENBORO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3W6
Local 3W6
BLADENBORO
PublicPUB

0 miles E of BLADENBORO, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 32' 34"N 78° 46' 41"W
Elevation
116' MSL
Pattern Alt
1116' MSL
Mag Variation
9°W
Declination
7°W
Fuel
None Listed
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
6/11/26-7/9/26
KEYF (11nm) VFR
5:35 PM EDT
Clear
10sm
89°F
62°F
30.04"Hg
190° 6kts
AO2 T03160164
METAR KEYF 252135Z AUTO 19006KT 10SM CLR 32/16 A3004 RMK AO2 T03160164
+ Add Your Business

3W6 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KLBT (14nm)
Thu, 6/25 1:20 PM EDT
Thu, 6/25 2:00 PM EDT - Fri, 6/26 2:00 PM EDT
VFR
2:00 PM EDT - 6:00 PM EDT
Broken 7,000'
6sm
190° 5kts
VFR
6:00 PM EDT - 2:00 PM EDT
Scattered 25,000'
Few 7,000'
6sm
190° 3kts
TAF KLBT 251720Z 2518/2618 19005KT P6SM BKN070
   FM252200 19003KT P6SM FEW070 SCT250
3W6
EffectiveExpiresCategoryNOTAM
Domestic
6/24/26
1123Z
10/22/26
1123Z
!RDU 06/336 3W6 OBST TOWER LGT (ASR 1289741) 343959.30N0785321.00W (9.1NM NW 3W6) 464.9FT (310.0FT AGL) U/S 2606241123-2610221123
6/14/26
2359Z
9/12/26
2359Z
!RDU 06/190 3W6 OBST TOWER LGT (ASR 1234525) 343513.20N0785424.70W (6.8NM WNW 3W6) 416.0FT (305.1FT AGL) U/S 2606142359-2609122359
No
UNATNDD
REYNOLD HESTER
PO BOX 125
BLADENBORO, NC 28320
Phone: 910-876-4225
REYNOLD HESTER
13442 N.C. 131
BLADENBORO, NC 28320
Phone: (910) 876-4225
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
RDU
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 02/20

2850 ft. x 135 ft.
TURF
Good
NONE


--
--
--
--
  Runway 02 Runway 20
True Heading 19°199°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 34° 32' 21"N 34° 32' 48"N
Longitude 78° 46' 47"W 78° 46' 36"W
Elevation 100' 116'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 20 HAS 94 FT TREES 124 FT FROM THR OFFSET 32 FT RIGHT OF CNTRLN AND 96 FT TREES 260 FT FROM THR OFFSET 95 FT LEFT OF CNTRLN.
A110-380 FT TREES WEST EDGE OF RWY THR TO THR & 80 FT TREES EAST EDGE OF RWY 02 FM THR TO 500 FT.
A110-420 FT WIDE BY 10 FT DEEP DRAINAGE CANAL CROSSES RWY 02 10 FT SOUTH OF THR.
A110-53 FT SIDE DRAINAGE DITCHES BOTH SIDES OF RWY AT RWY EDGES.
A110-6FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A32-02/20USABLE RWY WIDTH IS 125 FT.
A57-02CTLNG OBSTN EXCEEDS A 45 DEG SLP.
E111ESTABLISHED PRIOR TO 1959.
BLADENBORO (IATA: 3W6) is a public airport located in BLADENBORO, NC, US.
