iFlightPlanner



...
EUREKA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3W8
Local 3W8
EUREKA MUNI
PublicPUB

2 miles N of EUREKA, SD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 47' 60"N 99° 38' 34"W
Elevation
1935' MSL
Pattern Alt
2935' MSL
Mag Variation
5°E
Declination
8°E
Fuel
None Listed
FSS
HURON (HON)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
9/3/26-10/1/26
KMBG (36nm) VFR
9:52 PM CDT
Clear
10sm
73°F
64°F
29.91"Hg
130° 13kts
AO2 SLP116 T02280178 53017 $
METAR KMBG 070252Z AUTO 13013KT 10SM CLR 23/18 A2991 RMK AO2 SLP116 T02280178 53017 $
+ Add Your Business

3W8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT PAPI RWY 12 &30; MIRL RWY 12/30 - CTAF.

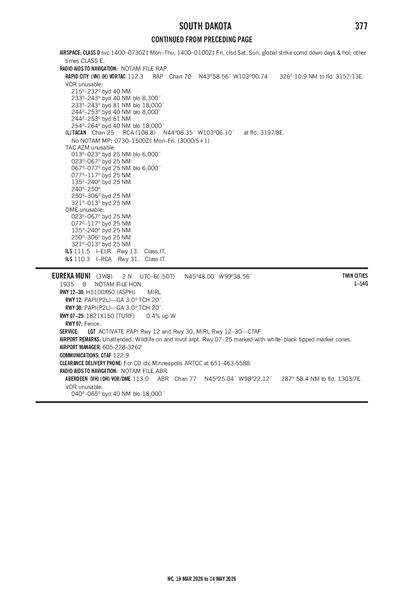

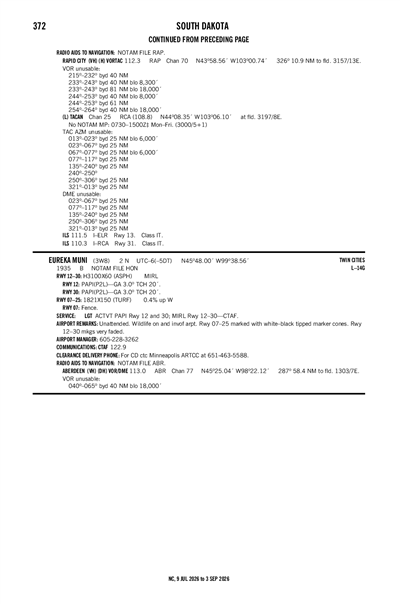

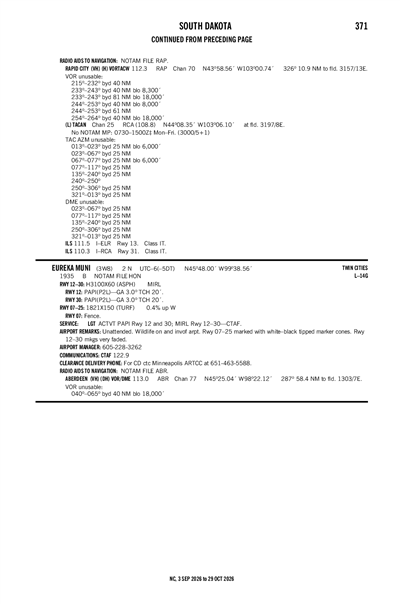

FAA A/FD Pages

Terminal Area Forecast

KMBG (36nm)
Sun, 9/6 9:18 PM CDT
Sun, 9/6 9:00 PM CDT - Mon, 9/7 7:00 PM CDT
VFR
9:00 PM CDT - 5:00 AM CDT
Broken 15,000'
6sm
130° 13kts
Gusts 17kts
VFR
5:00 AM CDT - 8:00 AM CDT
Overcast 10,000'
6sm
130° 13kts
Gusts 22kts
MVFR
7:00 AM CDT - 8:00 AM CDT
Light Showers and Rain
Overcast 2,500'
4sm
Calm
MVFR
8:00 AM CDT - 1:00 PM CDT
Light Showers and Rain
Overcast 1,500'
4sm
Calm
MVFR
8:00 AM CDT - 1:00 PM CDT
Overcast 2,200'
6sm
140° 15kts
Gusts 25kts
VFR
1:00 PM CDT - 2:00 PM CDT
Light Showers and Rain
Broken 3,500'
6sm
170° 16kts
Gusts 26kts
MVFR
2:00 PM CDT - 6:00 PM CDT
Light Showers and Rain
Overcast 2,500'
4sm
Calm
VFR
2:00 PM CDT - 7:00 PM CDT
Broken 10,000'
6sm
160° 16kts
Gusts 26kts
TAF KMBG 070218Z 0702/0724 13013G17KT P6SM BKN150
   FM071000 13013G22KT P6SM OVC100
   PROB30 0712/0713 4SM -SHRA OVC025
   FM071300 14015G25KT P6SM OVC022
   PROB30 0713/0718 4SM -SHRA OVC015
   FM071800 17016G26KT 6SM -SHRA BKN035
   FM071900 16016G26KT P6SM BKN100
   PROB30 0719/0723 4SM -SHRA OVC025
3W8
No NOTAM Available
No
UNATNDD
CITY OF EUREKA
PO BOX 655
EUREKA, SD 57437
Phone: 605-284-2441
ERIC ODENBACH
PO BOX 655
EUREKA, SD 57437
Phone: 605-228-3262
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
HON
--
ACTVT PAPI RWY 12 &30; MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
Crop Dusting

Runway 07/25

1821 ft. x 150 ft.
TURF
Good
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 83°263°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 47' 55"N 45° 47' 57"N
Longitude 99° 38' 39"W 99° 38' 13"W
Elevation 1,933' 1,927'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

3100 ft. x 60 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR FAIR
Latitude 45° 48' 13"N 45° 47' 51"N
Longitude 99° 38' 54"W 99° 38' 23"W
Elevation 1,931' 1,935'
Threshold Crossing Height 20 ft. AGL 20 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON AND INVOF ARPT.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A42-07_MARKRWY 07/25 MKD WITH WHITE BLACK TIPPED MKR CONES.
A42-12_CONDRWY 12/30 MKGS VERY FADED.
A81-APTACTVT PAPI RWY 12 &30; MIRL RWY 12/30 - CTAF.
EUREKA MUNI (IATA: 3W8) is a public airport located in EUREKA, SD, US.
