ISABEL MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

3Y7
Local 3Y7
ISABEL MUNI
PublicPUB

0 miles SW of ISABEL, SD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 23' 23"N 101° 26' 15"W
Elevation
2398' MSL
Pattern Alt
3398' MSL
Mag Variation
6°E
Declination
10°E
Fuel
None Listed
FSS
HURON (HON)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
9/3/26-10/1/26
KD07 (33nm) VFR
8:56 PM MDT
No Clouds
N/A
77°F
63°F
29.87"Hg
130° 18kts
AO1 PK WND 13028/0232 SLP094 T02500172 53002 $
METAR KD07 070256Z AUTO 13018KT 25/17 A2987 RMK AO1 PK WND 13028/0232 SLP094 T02500172 53002 $
+ Add Your Business

3Y7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

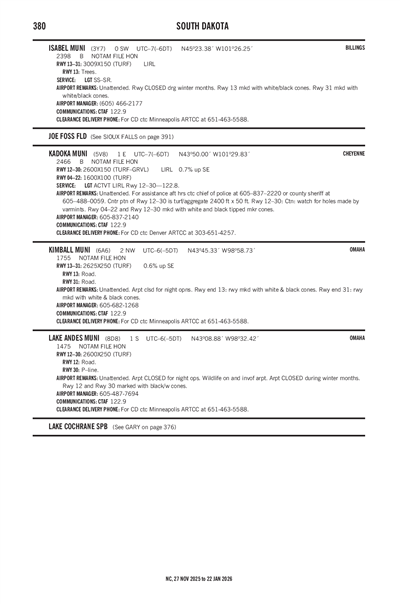

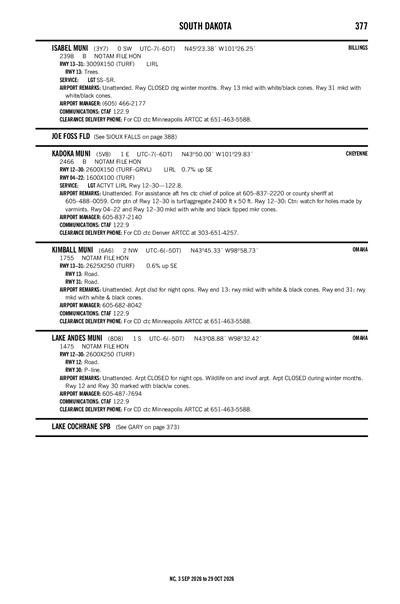

FAA A/FD Pages

Terminal Area Forecast

KMBG (45nm)
Sun, 9/6 9:18 PM CDT
Sun, 9/6 9:00 PM CDT - Mon, 9/7 7:00 PM CDT
VFR
9:00 PM CDT - 5:00 AM CDT
Broken 15,000'
6sm
130° 13kts
Gusts 17kts
VFR
5:00 AM CDT - 8:00 AM CDT
Overcast 10,000'
6sm
130° 13kts
Gusts 22kts
MVFR
7:00 AM CDT - 8:00 AM CDT
Light Showers and Rain
Overcast 2,500'
4sm
Calm
MVFR
8:00 AM CDT - 1:00 PM CDT
Light Showers and Rain
Overcast 1,500'
4sm
Calm
MVFR
8:00 AM CDT - 1:00 PM CDT
Overcast 2,200'
6sm
140° 15kts
Gusts 25kts
VFR
1:00 PM CDT - 2:00 PM CDT
Light Showers and Rain
Broken 3,500'
6sm
170° 16kts
Gusts 26kts
MVFR
2:00 PM CDT - 6:00 PM CDT
Light Showers and Rain
Overcast 2,500'
4sm
Calm
VFR
2:00 PM CDT - 7:00 PM CDT
Broken 10,000'
6sm
160° 16kts
Gusts 26kts
TAF KMBG 070218Z 0702/0724 13013G17KT P6SM BKN150
   FM071000 13013G22KT P6SM OVC100
   PROB30 0712/0713 4SM -SHRA OVC025
   FM071300 14015G25KT P6SM OVC022
   PROB30 0713/0718 4SM -SHRA OVC015
   FM071800 17016G26KT 6SM -SHRA BKN035
   FM071900 16016G26KT P6SM BKN100
   PROB30 0719/0723 4SM -SHRA OVC025
3Y7
No NOTAM Available
No
UNATNDD
CITY OF ISABEL
PO BOX 268
ISABEL, SD 57633
Phone: 605-466-2177
RYAN MAHER
PO BOX 268
ISABEL, SD 57633
Phone: (605) 466-2177
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
HON
Sunset to Sunrise
--
N/A
No
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 13/31

3009 ft. x 150 ft.
TURF
Fair
NONE
LOW

--
--
--
--
  Runway 13 Runway 31
True Heading 140°320°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 45° 23' 34"N 45° 23' 12"N
Longitude 101° 26' 29"W 101° 26' 02"W
Elevation 2,386' 2,383'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RWY CLSD DRG WINTER MONTHS.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A42-13_MARKMKD WITH WHITE/BLACK CONES.
A42-31_MARKMKD WITH WHITE/BLACK CONES.
ISABEL MUNI (IATA: 3Y7) is a public airport located in ISABEL, SD, US.
