iFlightPlanner



...

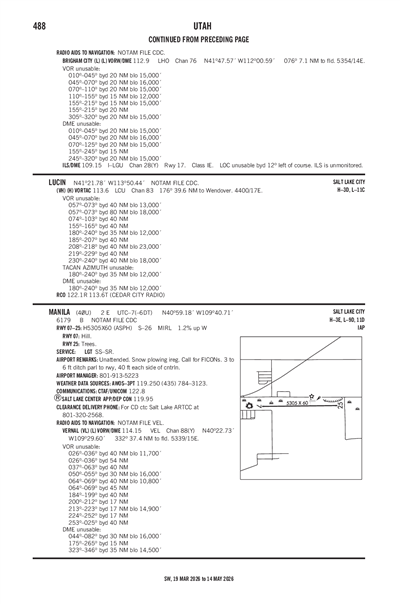

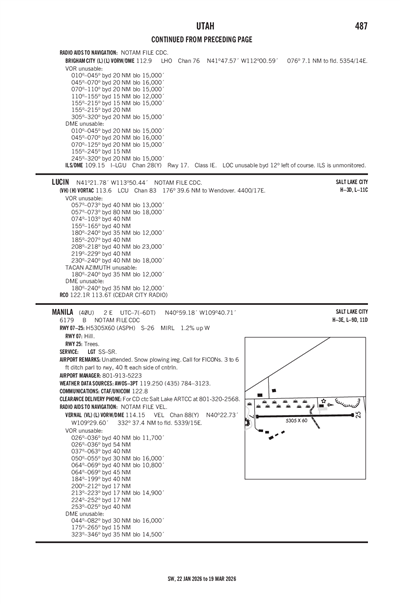

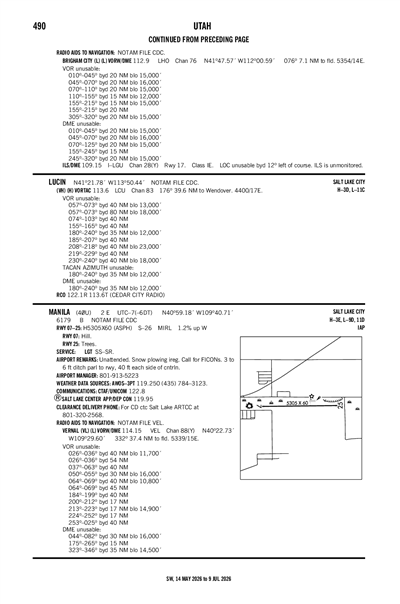

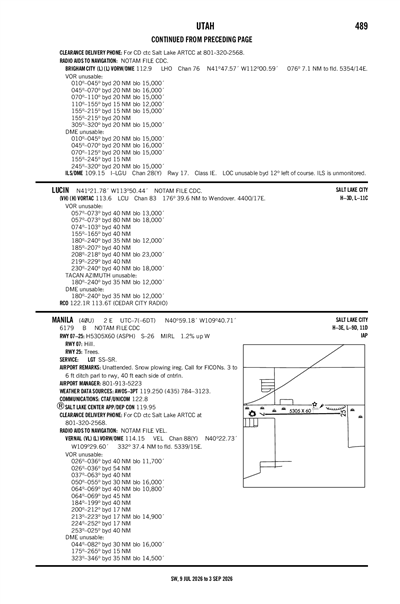

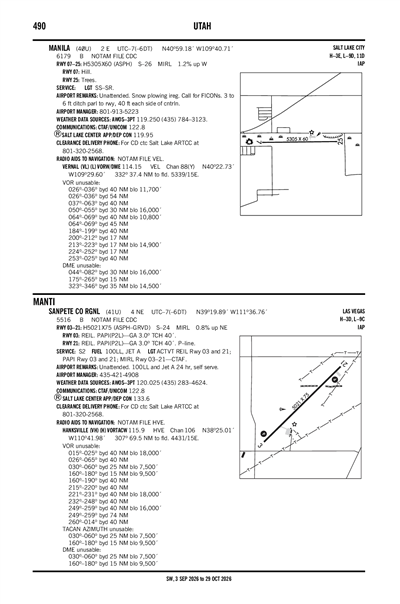

MANILA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

40U
Local 40U
MANILA
PublicPUB

2 miles E of MANILA, UT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 59' 11"N 109° 40' 43"W
Elevation
6179' MSL
Pattern Alt
7179' MSL
Mag Variation
10°E
Declination
10°E
Fuel
None Listed
FSS
CEDAR CITY (CDC)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
9/3/26-10/1/26
KVEL (34nm) VFR
8:53 PM MDT
Light Rain
Overcast 9,000'
10sm
60°F
55°F
30.15"Hg
340° 7kts
AO2 SLP159 P0000 60003 T01560128 53008
METAR KVEL 070253Z AUTO 34007KT 10SM -RA OVC090 16/13 A3015 RMK AO2 SLP159 P0000 60003 T01560128 53008
+ Add Your Business

40U FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.25
(435) 784-3123

Common

CTAF 122.8
UNICOM 122.8

Center

SALT LAKE CENTER 119.95
LOW/HIGH, APCH/DEP SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON FREQS 119.95/377.15 (MYTON RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KVEL (34nm)
Sun, 9/6 5:40 PM MDT
Sun, 9/6 6:00 PM MDT - Mon, 9/7 6:00 PM MDT
VFR
Temporary 6:00 PM MDT - 8:00 PM MDT
Light Thunderstorm and Rain
Overcast 7,000'
N/A
VRB° 15kts
Gusts 25kts
VFR
6:00 PM MDT - 8:00 PM MDT
Thunderstorm in vicinity
Overcast 11,000'
Broken 9,000'
6sm
240° 10kts
Gusts 18kts
VFR
8:00 PM MDT - 12:00 AM MDT
Light Thunderstorm and Rain
Broken 5,000'
N/A
Calm
VFR
8:00 PM MDT - 12:00 AM MDT
Light Showers and Rain
Overcast 8,000'
Scattered 7,000'
6sm
210° 6kts
VFR
12:00 AM MDT - 4:00 AM MDT
Light Showers and Rain
Broken 5,000'
N/A
Calm
VFR
12:00 AM MDT - 12:00 PM MDT
Showers in vicinity
Overcast 8,000'
Scattered 5,000'
6sm
VRB° 4kts
VFR
12:00 PM MDT - 6:00 PM MDT
Scattered 25,000'
6sm
230° 10kts
Gusts 20kts
TAF KVEL 062340Z 0700/0724 24010G18KT P6SM VCTS BKN090CB OVC110
   TEMPO 0700/0702 VRB15G25KT -TSRA OVC070CB
   FM070200 21006KT P6SM -SHRA SCT070 OVC080
   PROB30 0702/0706 -TSRA BKN050CB
   FM070600 VRB04KT P6SM VCSH SCT050 OVC080
   PROB30 0706/0710 -SHRA BKN050
   FM071800 23010G20KT P6SM SCT250
40U
EffectiveExpiresCategoryNOTAM
Domestic
7/24/26
2355Z
10/24/26
2359Z
Runway!CDC 07/328 40U RWY 25 PAPI U/S 2607242355-2610242359
7/24/26
2355Z
10/24/26
2359Z
Runway!CDC 07/327 40U RWY 07 PAPI U/S 2607242355-2610242359
7/24/26
2354Z
1/24/27
2359Z
!CDC 07/326 40U SVC PCL NOW 122.8 2607242354-2701242359
No
UNATTND
DAGGETT COUNTY
95 N. 1ST W PO BOX 219
MANILA, UT 84046
Phone: 435-784-3154
KENT BOND
95 NORTH 1ST WEST PO BOX 219
MANILA, UT 84046
Phone: 801-913-5223
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
CDC
Sunset to Sunrise
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 07/25

5305 ft. x 60 ft.
ASPH
Good
NONE
MED

26,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 89°269°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 59' 11"N 40° 59' 11"N
Longitude 109° 41' 17"W 109° 40' 08"W
Elevation 6,179' 6,115'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-13 TO 6 FT DITCH PARL TO RWY, 40 FT EACH SIDE OF CNTRLN.
A110-2FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-3SN PLOWING IREG. CALL FOR FICONS.
A14COUNTY CLERK/ARPT MGR.
A57-07CTLG OBSTN EXCEEDS A 45 DEG SLP.
A58-254-15 FT TREES, 0-199 FT DSTC, 0-125 FT R.
MANILA (IATA: 40U) is a public airport located in MANILA, UT, US.
