43D
ODESSA MUNI
Public
PUB
1 miles N of ODESSA, WA
View on
Map
Status
Operational
Coordinates
47° 20' 51"N
118° 40' 38"W
Elevation
1738' MSL
Pattern Alt
2738' MSL
Mag Variation
19E
Fuel
None Listed
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
4/18/24-5/16/24
KMWH (28nm)
VFR
1:52 PM PDT
RAW
Clear
Viz
10sm
Temp
64°F
Dew
40°F
Pres
29.80"Hg
Wind
Calm
RMK
AO2 SLP093 T01780044 58005
KMWH 262052Z 00000KT 10SM CLR 18/04 A2980 RMK AO2 SLP093 T01780044 58005
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
43D FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
43D Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
43D Hotels
No hotels are listed for this airport.
43D Restaurants
No restaurants are listed for this airport.
43D Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.
FAA A/FD Pages
FAA A/FD Page

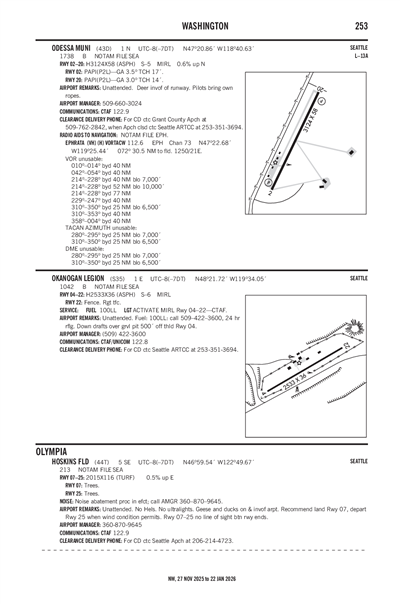

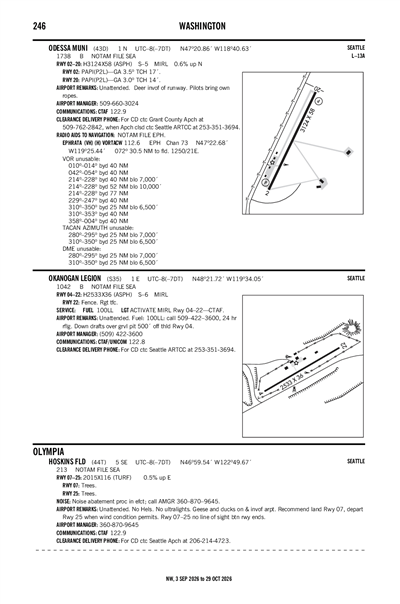

Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KMWH (28nm)
RAW
Reported
Fri, 4/26 10:48 AM PDT
Valid
Fri, 4/26 11:00 AM PDT - Sat, 4/27 11:00 AM PDT
VFR
11:00 AM PDT - 8:00 PM PDT
Overcast 12,000'
Scattered 7,000'
Viz
6sm
Wind
210° 4kts
VFR
8:00 PM PDT - 5:00 AM PDT
Scattered 7,000'
Viz
6sm
Wind
190° 3kts
VFR
5:00 AM PDT - 11:00 AM PDT
Overcast 7,000'
Viz
6sm
Wind
190° 5kts
KMWH 261748Z 2618/2718 21004KT P6SM SCT070 OVC120
FM270300 19003KT P6SM SCT070
FM271200 19005KT P6SM OVC070
43D
Domestic
4/7/24
0435Z
!SEA 04/067 43D OBST TOWER LGT (ASR 1032999) 472128.50N1184204.00W (1.1NM WNW 43D) 2190.9FT (290.0FT AGL) U/S 2404070435-2405072300
ATC Tower
No
Attendance
UNATNDD
Owner
CITY OF ODESSA
PO BOX 218
ODESSA, WA 99159
Phone: 509-982-2401
Manager
STAN DAMMEL
P.O. BOX 186
ODESSA, WA 99159
Phone: 509-660-3024
FSS
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
NOTAM
SEA
Light Schedule
Sunset to Sunrise
Lights
--
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
10
# Multi Engine
1
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
1
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Crop Dusting
Runway 02/20
Dimensions
3124 ft. x 58 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
5,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 02
Runway 20
True Heading
41°
221°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
47° 20' 40"N
47° 21' 03"N
Longitude
118° 40' 53"W
118° 40' 23"W
Elevation
1,724'
1,737'
Threshold Crossing Height
17 ft. AGL
14 ft. AGL
Visual Glide Path Angle
3.5°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
DEER INVOF OF RUNWAY.
A110-3
FOR CD CTC GRANT COUNTY APCH AT 509-762-2842, WHEN APCH CLSD CTC SEATTLE ARTCC AT 253-351-3694.
ODESSA MUNI (IATA: 43D) is a public airport located in ODESSA, WA.
