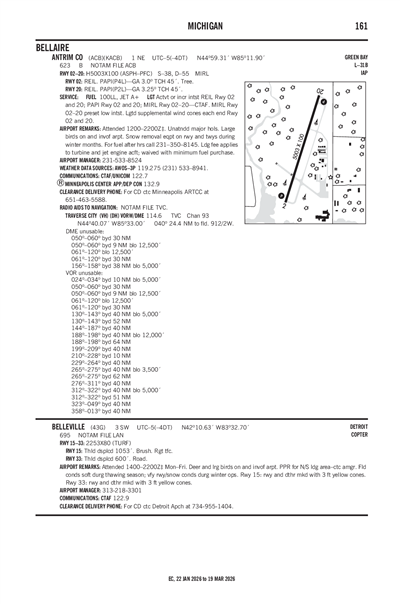

BELLEVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

43G
Local 43G
BELLEVILLE
PublicPUB

3 miles SW of BELLEVILLE, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 10' 38"N 83° 32' 42"W
Elevation
695' MSL
Pattern Alt
1695' MSL
Mag Variation
7°W
Declination
5°W
Fuel
None Listed
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
9/3/26-10/1/26
KYIP (4nm) VFR
10:53 PM EDT
Clear
10sm
64°F
55°F
30.14"Hg
040° 5kts
AO2 SLP200 T01780128 51018 $
METAR KYIP 070253Z 04005KT 10SM CLR 18/13 A3014 RMK AO2 SLP200 T01780128 51018 $
+ Add Your Business

43G FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KYIP (4nm)
Sun, 9/6 7:23 PM EDT
Sun, 9/6 8:00 PM EDT - Mon, 9/7 8:00 PM EDT
VFR
8:00 PM EDT - 9:00 AM EDT
Scattered 25,000'
6sm
040° 5kts
VFR
9:00 AM EDT - 12:00 PM EDT
Scattered 25,000'
Scattered 2,500'
6sm
040° 5kts
VFR
12:00 PM EDT - 6:00 PM EDT
Broken 25,000'
Scattered 6,000'
6sm
100° 7kts
VFR
6:00 PM EDT - 8:00 PM EDT
Scattered 25,000'
6sm
120° 5kts
TAF KYIP 062323Z 0700/0724 04005KT P6SM SCT250
   FM071300 04005KT P6SM SCT025 SCT250
   FM071600 10007KT P6SM SCT060 BKN250
   FM072200 12005KT P6SM SCT250
43G
EffectiveExpiresCategoryNOTAM
Domestic
5/26/26
0236Z
9/23/26
0236Z
!LAN 05/333 43G OBST TOWER LGT (ASR 1060230) 421106.00N0833222.00W (0.5NM NNE 43G) 855.0FT (158.1FT AGL) U/S 2605260236-2609230236
No
MON-FRI 0900-1700
FARMER AVIATION LLC
7790 RAWSONVILLE RD
BELLEVILLE, MI 48111
Phone: 313-218-3301
KENNEY FARMER
7790 RAWSONVILLE RD
BELLEVILLE, MI 48111
Phone: 313-218-3301
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

2253 ft. x 80 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 151°331°
Traffic Pattern Right
Markings
Markings Condition
Latitude 42° 10' 48"N 42° 10' 28"N
Longitude 83° 32' 49"W 83° 32' 35"W
Elevation 695' 690'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FLD CONDS SOFT DURG THAWING SEASON; VFY RWY/SNOW CONDS DURG WINTER OPS.
A110-3FOR CD CTC DETROIT APCH AT 734-955-1404.
A110-4DEER & LRG BIRDS ON & INVOF ARPT.
A110-5PPR FOR N/S LDG AREA - CTC AMGR.
A42-15_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-33_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A57-15CTLG OBSTN EXCEEDS A 45 DEG SLP. APCH RATIO 20:1 TO DTHR.
A57-33CTLG OBSTN EXCEEDS A 45 DEG SLP. APCH RATIO 17:1 TO DTHR OVR +44 FT TREE, 784 FT DIST, 55 FT R.
E111ESTABD BFR 1959.
BELLEVILLE (IATA: 43G) is a public airport located in BELLEVILLE, MI, US.
