iFlightPlanner



...

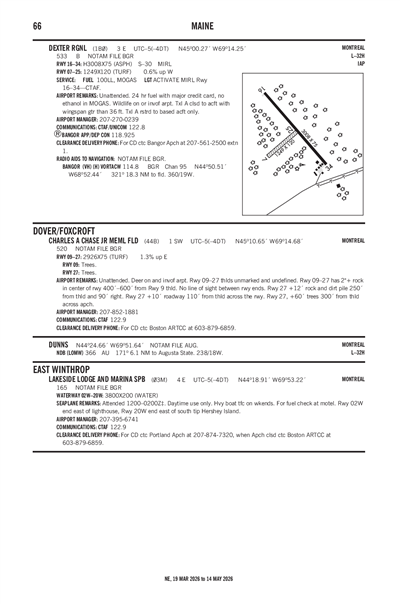

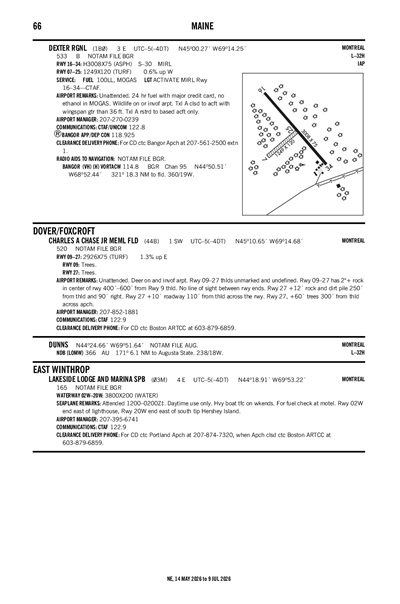

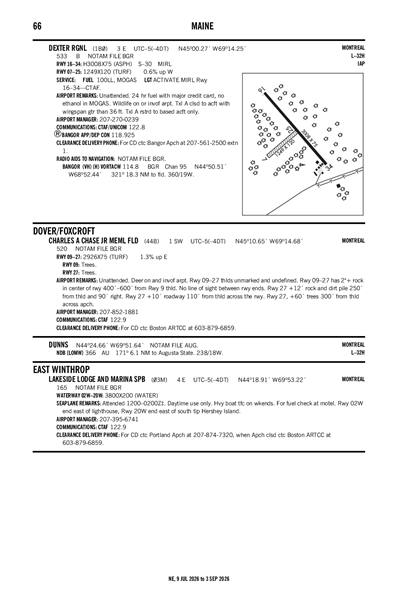

CHARLES A CHASE JR MEML FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

44B
CHARLES A CHASE JR MEML FLD
PublicPUB

1 miles SW of DOVER/FOXCROFT, ME
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 10' 39"N 69° 14' 41"W
520' MSL
1520' MSL
19W
None Listed
BANGOR (BGR)
MONTREAL
BOSTON (ZBW)
11/27/25-12/25/25
KGNR (22nm) VFR
5:56 PM EST
No Clouds
N/A
19°F
10°F
29.93"Hg
Calm
AO1 SLP166 T10721122 $
METAR KGNR 162256Z AUTO 00000KT M07/M12 A2993 RMK AO1 SLP166 T10721122 $
+ Add Your Business

44B FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KBGR (29nm)
Tue, 12/16 12:36 PM EST
Tue, 12/16 1:00 PM EST - Wed, 12/17 1:00 PM EST
VFR
1:00 PM EST - 12:00 AM EST
Few 25,000'
6sm
240° 7kts
VFR
12:00 AM EST - 1:00 PM EST
Broken 10,000'
6sm
200° 8kts
TAF KBGR 161736Z 1618/1718 24007KT P6SM FEW250
   FM170500 20008KT P6SM BKN100 WS020/22040KT
44B
EffectiveExpiresCategoryNOTAM
Domestic
12/6/25
0212Z
2/5/26
2359Z
!BGR 12/161 44B OBST TOWER LGT (ASR 1263135) 450535.00N0690505.60W (8.4NM SE 44B) 1121.7FT (255.9FT AGL) U/S 2512060212-2602052359
12/6/25
0154Z
2/5/26
2359Z
!BGR 12/158 44B OBST TOWER LGT (ASR 1276018) 450905.00N0692527.50W (7.7NM WSW 44B) 980.6FT (255.9FT AGL) U/S 2512060154-2602052359
No
UNATNDD
TOWN OF DOVER-FOXCROFT
48 MORTON AVE, SUITE A
DOVER-FOXCROFT, ME 04426
Phone: 207-564-3318
CHRIS ARNO
TOWN OF DOVER-FOXCROFT, 48 MORTON AVE. SUITE A
DOVER-FOXCROFT, ME 04425
Phone: 207-852-1881
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

2926 ft. x 75 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 85°265°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 45° 10' 38"N 45° 10' 40"N
Longitude 69° 15' 01"W 69° 14' 20"W
Elevation 478' 517'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2DEER ON & INVOF ARPT.
A110-3NO LINE OF SIGHT BTWN RY ENDS.
A110-4RY 27 +12 FT ROCK AND DIRT PILE 250 FM THLD AND 90 FT R.
A110-5RUNWAY 9-27 HAS 2+INCH ROCK IN CENTER OF RUNWAY 400 FT-600 FT FROM RUNWAY 9 THRESHOLD.
A110-6RUNWAY 27 +10 FT. ROADWAY 110 FT. FROM THRESHOLD ACROSS THE RUNWAY.,
A110-7RUNWAY 27, +60 FT. TREES 300 FT. FROM THRESHOLD ACROSS APPROACH.
A110-8FOR CD CTC BOSTON ARTCC AT 603-879-6859.
CHARLES A CHASE JR MEML FLD (IATA: 44B) is a public airport located in DOVER/FOXCROFT, ME.
