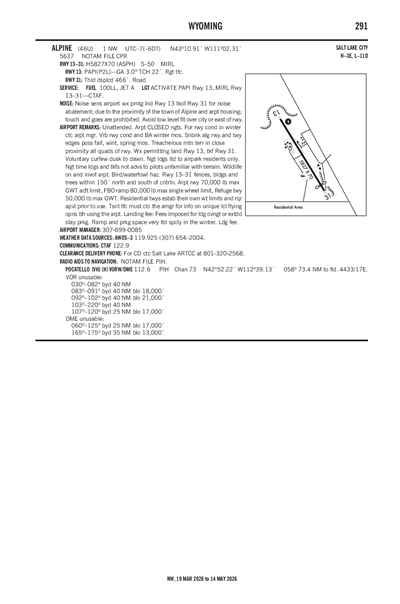

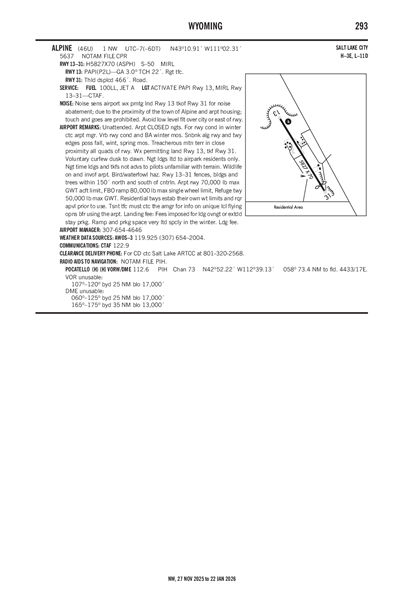

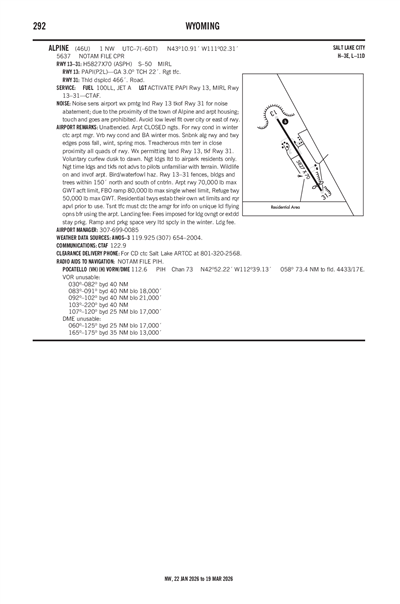

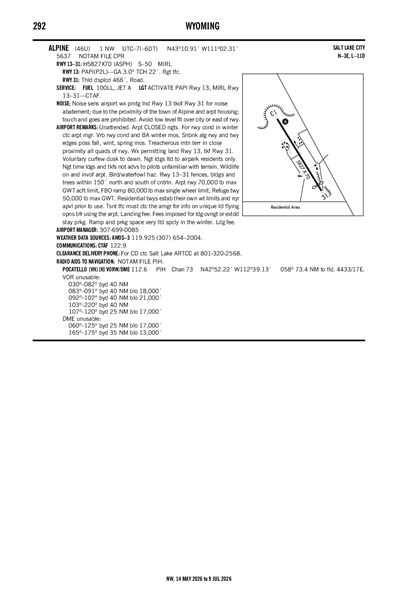

ALPINE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

46U
Local 46U
ALPINE
PublicPUB

1 miles NW of ALPINE, WY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 10' 54"N 111° 02' 19"W
Elevation
5637' MSL
Pattern Alt
6637' MSL
Mag Variation
11°E
Declination
11°E
Fuel
JET A, 100LL
FSS
CASPER (CPR)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
4/16/26-5/14/26
K46U MVFR
4:15 AM MDT
Broken 4,500'
Broken 1,200'
10sm
23°F
21°F
29.91"Hg
Calm
A01
METAR K46U 251015Z AUTO 00000KT 10SM BKN012 BKN045 M05/M06 A2991 RMK A01
+ Add Your Business

46U FBOs

Promote Listing
Alpine Airpark
UNICOM: 122.9
Phone: (307) 654-4646
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 4/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.95 7.18
Full Serve 6.95 7.18
Fuel Notes
Prices include tax
Prist (FSII) is available upon request.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.925
(307) 654-2004

Common

CTAF 122.9
ACTVT PAPI RWY 13; MIRL RWY 13/31 - CTAF

FAA A/FD Pages

Terminal Area Forecast

KJAC (29nm)
Fri, 4/24 11:20 PM MDT
Sat, 4/25 12:00 AM MDT - Sun, 4/26 12:00 AM MDT
VFR
12:00 AM MDT - 11:00 AM MDT
Few 5,000'
6sm
020° 6kts
VFR
11:00 AM MDT - 2:00 PM MDT
Few 8,000'
6sm
200° 7kts
VFR
2:00 PM MDT - 10:00 PM MDT
Scattered 8,000'
6sm
230° 8kts
VFR
10:00 PM MDT - 12:00 AM MDT
Scattered 15,000'
Few 10,000'
6sm
010° 5kts
TAF KJAC 250520Z 2506/2606 02006KT P6SM FEW050
   FM251700 20007KT P6SM FEW080
   FM252000 23008KT P6SM SCT080
   FM260400 01005KT P6SM FEW100 SCT150
46U
No NOTAM Available
No
UNATNDD
ALPINE AIRPARK, LLC
PO BOX 3625 UNIT 3
ALPINE, WY 83128
Phone: 307-699-0085
ISAAC MILLER
810 OLD ALPINE ROAD
ALPINE, WY 83128
Phone: 307-699-0085
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
CPR
--
ACTVT PAPI RWY 13; MIRL RWY 13/31 - CTAF
N/A
Yes
No
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 13/31

5827 ft. x 70 ft.
ASPH
Good
NONE
MED

50,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 142°322°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 11' 17"N 43° 10' 32"N
Longitude 111° 02' 43"W 111° 01' 55"W
Elevation 5,624' 5,637'
Threshold Crossing Height 22 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT CLSD NGTS
A110-10AVOID LOW LEVEL FLT OVER CITY OR EAST OF RWY,
A110-12NOISE SENS ARPT WX PMTG LND RWY 13 TKOF RWY 31 FOR NOISE ABATEMENT; DUE TO THE PROXIMITY OF THE TOWN OF ALPINE & ARPT HOUSING; TOUCH & GOES ARE PROHIBITED.
A110-13RESIDENTIAL TWYS ESTAB THEIR OWN WT LMTS & RQR APVL PRIOR TO USE.
A110-14FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A110-15TSNT TFC MUST CTC THE AMGR FOR INFO ON UNIQUE LCL FLYING OPNS BFR USING THE ARPT.
A110-6VOLUNTARY CURFEW DUSK TO DAWN. NGT LDGS LMTD TO AIRPARK RESIDENTS ONLY. NGT TIME LDGS AND TKFS NOT ADVS TO PILOTS UNFAMILIAR WITH TRRN. WILDLIFE ON AND INVOF OF ARPT. BIRD/WATERFOWL HAZ.
A110-8FOR RWY COND IN WINTER CTC - AMGR.
A110-9VRB RWY COND AND BA WINTER MOS. SNBNK ALG RWY & TWY EDGES POSS FALL, WINT, SPRING MOS. TREACHEROUS MTN TERR IN CLOSE PROXIMITY ALL QUADS OF RWY.
A24FEES IMPOSED FOR LDG OVNGT OR EXTDD STAY PRKG. RAMP & PRKG SPACE VERY LTD SPCLY IN THE WINTER.
A30A-31RWY 13/31 FENCES, BLDGS & TREES WI 150 FT N & S OF CNTRLN.
A57-31RWY 31 FM DSPLCD THLD 20:1 TO 45 FT TREE 480 FT EOR 75 FT L.
A58-13+3 FT VEGETATION & +5 FT DROP 60 FT FROM RWY END ACRS BOTH SIDES OF CNTRLN.
A58-3116 FT PAVED ROAD 106 FT FM RWY END CROSSES RWY END.
A70-A24 HR SELF SVC FUEL AVBL WITH CREDIT CARD; FULL SVC JET A & AVGAS ALSO AVBL ARNGD IN ADVN PHONE 307-654-4646.
A75-TPRKG FEES BASED ON SIZE OF ACFT WILL APPLY.
A81-APTACTVT PAPI RWY 13; MIRL RWY 13/31 - CTAF
ALPINE (IATA: 46U) is a public airport located in ALPINE, WY, US.
