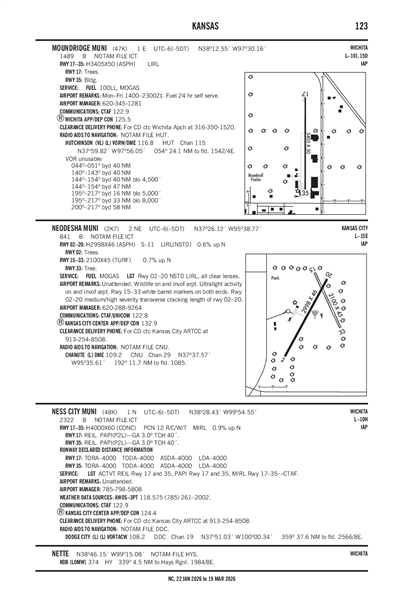

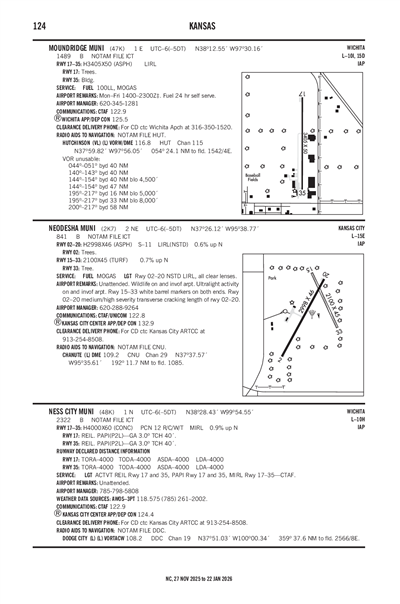

MOUNDRIDGE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

47K
Local 47K
MOUNDRIDGE MUNI
PublicPUB

1 miles E of MOUNDRIDGE, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 12' 33"N 97° 30' 10"W
Elevation
1489' MSL
Pattern Alt
2489' MSL
Mag Variation
3°E
Declination
7°E
Fuel
100LL, MOGAS
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
6/11/26-7/9/26
KMPR (12nm) VFR
4:35 PM CDT
Overcast 6,000'
10sm
72°F
66°F
29.92"Hg
080° 13kts
AO2 P0001 T02200189
METAR KMPR 252135Z AUTO 08013KT 10SM OVC060 22/19 A2992 RMK AO2 P0001 T02200189
+ Add Your Business

47K FBOs

Promote Listing
Moundridge Municipal Airport
UNICOM: 122.9
Phone: (620) 345-8246
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 6/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.56 5.85
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Approach

WICHITA APPROACH 125.5

Departure

WICHITA DEPARTURE 125.5

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KHUT (19nm)
Thu, 6/25 12:23 PM CDT
Thu, 6/25 1:00 PM CDT - Fri, 6/26 1:00 PM CDT
VFR
1:00 PM CDT - 2:00 PM CDT
Broken 4,000'
Scattered 2,500'
Few 1,500'
6sm
VRB° 6kts
IFR
Temporary 1:00 PM CDT - 2:00 PM CDT
Thunderstorm and Rain
Broken 2,500'
Scattered 1,500'
2sm
Calm
VFR
2:00 PM CDT - 11:00 PM CDT
Broken 4,000'
Scattered 2,500'
Few 1,500'
6sm
100° 11kts
MVFR
5:00 PM CDT - 11:00 PM CDT
Thunderstorm and Rain
Broken 2,500'
Scattered 1,500'
3sm
Calm
MVFR
11:00 PM CDT - 1:00 PM CDT
Broken 2,500'
Scattered 1,500'
6sm
030° 7kts
TAF KHUT 251723Z 2518/2618 VRB06KT P6SM FEW015 SCT025 BKN040
   TEMPO 2518/2519 2SM TSRA SCT015 BKN025CB
   FM251900 10011KT P6SM FEW015 SCT025 BKN040
   PROB30 2522/2604 3SM TSRA SCT015 BKN025CB
   FM260400 03007KT P6SM SCT015 BKN025
47K
EffectiveExpiresCategoryNOTAM
Domestic
6/21/26
1126Z
9/19/26
1126Z
!ICT 06/625 47K OBST TOWER LGT (ASR 1274866) 380938.60N0972607.30W (4.3NM SE 47K) 1746.7FT (259.8FT AGL) U/S 2606211126-2609191126
6/21/26
1126Z
9/19/26
1126Z
!ICT 06/624 47K OBST TOWER LGT (ASR 1238773) 381120.90N0972821.10W (1.9NM SE 47K) 1692.9FT (213.9FT AGL) U/S 2606211126-2609191126
6/14/26
0436Z
7/29/26
0435Z
!ICT 06/391 47K OBST TOWER LGT (ASR 1258717) 382226.40N0972740.20W (10.1NM NE 47K) 1919.9FT (339.9FT AGL) U/S 2606140436-2607290435
FDC
9/12/25
1544Z
!FDC 5/2758 47K IAP MOUNDRIDGE MUNI, MOUNDRIDGE, KS.
RNAV (GPS) RWY 17, ORIG...
RNAV (GPS) RWY 35, ORIG...
CIRCLING CAT B CMDA 2040/ HAA 551.
2509121544-2709121543EST
No
MON - FRI 0800-1700
CITY OF MOUNDRIDGE
225 SOUTH CHRISTIAN AVENUE
MOUNDRIDGE, KS 67107
Phone: 620-345-8246
MIKE STRAUSZ
225 SOUTH CHRISTIAN AVENUE
MOUNDRIDGE, KS 67107
Phone: 620-345-1281
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
--
N/A
Yes
No
No
Hanger, Tie-Down
No
None
None
None
None
Crop Dusting
Charter Service
Aircraft Sales

Runway 17/35

3405 ft. x 50 ft.
ASPH
Good
NONE
LOW

--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 38° 12' 50"N 38° 12' 16"N
Longitude 97° 30' 10"W 97° 30' 10"W
Elevation 1,489' 1,488'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC WICHITA APCH AT 316-350-1520.
A13AMGR CELL.
A57-1720 FT BLDG, 0-199 FT DSTC, 204 FT R. 55 FT RTG BCN, 67 FT DSTC, 214 FT L.
A70-100LLFUEL 24 HR SELF SERVE.
E111PROVIDED APCH TO EACH RWY IS MAINTAINED FOR A MIN 20:1 GLIDE SLOPE AND THE TRANSITIONAL SURFACE BE MAINTAINED FOR A 7:1 SLOPE.
MOUNDRIDGE MUNI (IATA: 47K) is a public airport located in MOUNDRIDGE, KS, US.
