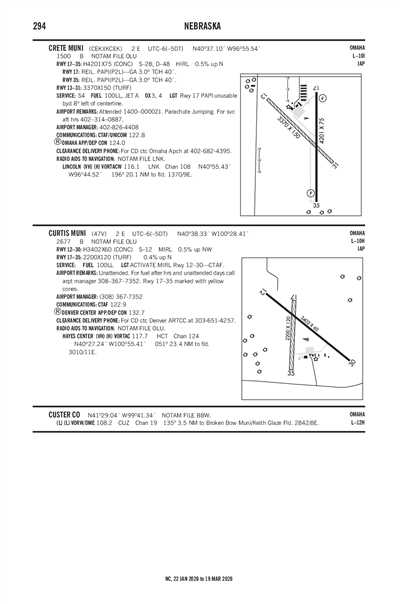

CURTIS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

47V
Local 47V
CURTIS MUNI
PublicPUB

2 miles E of CURTIS, NE, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 38' 20"N 100° 28' 24"W
Elevation
2677' MSL
Pattern Alt
3677' MSL
Mag Variation
5°E
Declination
6°E
Fuel
100LL
FSS
COLUMBUS (OLU)
Sectional
OMAHA
ARTCC
DENVER (ZDV)
Data Effective
4/16/26-5/14/26
KCSB (24nm) VFR
10:35 PM CDT
Clear
10sm
61°F
34°F
29.69"Hg
130° 10kts
AO2
METAR KCSB 250335Z AUTO 13010KT 10SM CLR 16/01 A2969 RMK AO2
+ Add Your Business

47V FBOs

Promote Listing
Curtis Municipal Airport
Phone: (308) 367-7352
Other: (308) 367-8772
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/15
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.50
Full Serve
Fuel Notes
Prices include tax
Assistance is available for self-serve 100LL.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RY 12/30 - CTAF.

Center

DENVER CENTER 132.7
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.7/226.675 (NORTH PLATTE RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMCK (27nm)
Fri, 4/24 6:20 PM CDT
Fri, 4/24 7:00 PM CDT - Sat, 4/25 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 PM CDT
Scattered 10,000'
6sm
160° 22kts
Gusts 32kts
VFR
10:00 PM CDT - 1:00 AM CDT
Scattered 10,000'
6sm
160° 15kts
Gusts 25kts
VFR
1:00 AM CDT - 7:00 AM CDT
Scattered 11,000'
6sm
080° 13kts
MVFR
7:00 AM CDT - 7:00 PM CDT
Overcast 1,500'
6sm
080° 18kts
TAF KMCK 242320Z 2500/2524 16022G32KT P6SM SCT100
   FM250300 16015G25KT P6SM SCT100
   FM250600 08013KT P6SM SCT110
   FM251200 08018KT P6SM OVC015
47V
EffectiveExpiresCategoryNOTAM
Domestic
4/22/26
1445Z
7/22/26
2359Z
!OLU 04/069 47V AD AP FUEL NOT AVBL 2604221445-2607222359
4/22/26
1445Z
7/22/26
2359Z
!OLU 04/068 47V APRON ALL CLSD 2604221445-2607222359
4/22/26
1445Z
7/22/26
2359Z
!OLU 04/067 47V TWY ALL CLSD 2604221445-2607222359
4/21/26
2128Z
6/5/26
2128Z
!OLU 04/062 47V OBST TOWER LGT (ASR 1290461) 404940.40N1004542.60W (17.4NM NW 47V) 3326.1FT (305.1FT AGL) U/S 2604212128-2606052128
No
UNATNDD
CURTIS AIRPORT AUTHORITY
PO BOX 11
CURTIS, NE 69025
Phone: (308) 362-7088
TOM BROWN
PO BOX 131
CURTIS, NE 69025
Phone: (308) 367-7352
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
OLU
--
ACTVT MIRL RY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

3402 ft. x 60 ft.
CONC
Good
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 129°309°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 38' 31"N 40° 38' 10"N
Longitude 100° 28' 39"W 100° 28' 05"W
Elevation 2,677' 2,661'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

2200 ft. x 120 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 182°2°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 38' 29"N 40° 38' 07"N
Longitude 100° 28' 28"W 100° 28' 29"W
Elevation 2,676' 2,668'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11RYAN PATE, CHAIRMAN OF AIRPORT AUTHORITY.
A110-1FOR CD CTC DENVER ARTCC AT 303-651-4257.
A30-17/35RY 17/35 MKD WITH YELLOW CONES.
A52-17OBSTRUCTION MAY BE CROPS DURING GROWING SEASON.
A58-12CROPS 5 FT TALL ON BOTH SIDES OF THE RWY, 125 FT L & R AND GOING OUT TO 250 FT L & R FM RWY END.
A58-30CROPS 5 FT TALL AT THE END OF RWY, 125 FT L AND EXTDG TO 250 FT L.
A70-100LLFOR FUEL AFT HRS & UNATNDD DAYS CALL AMGR (308) 367-7352.
A81-APTACTVT MIRL RY 12/30 - CTAF.
E111EXISTED PRIOR TO 1959.
CURTIS MUNI (IATA: 47V) is a public airport located in CURTIS, NE, US.
