4H1
Local 4H1
SCHAUMBURG MUNI HELISTOP
PublicPUB

24 miles NW of CHICAGO/SCHAUMBURG, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 02' 52"N 88° 03' 10"W
Elevation
730' MSL
Pattern Alt
1730' MSL
Mag Variation
4°W
Declination
1°W
Fuel
None Listed
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
K06C (4nm) VFR
10:35 AM CDT
Overcast 9,000'
Broken 8,000'
Scattered 6,000'
10sm
53°F
43°F
29.41"Hg
180° 10kts
Gusts 17kts
AO2 T01150059
METAR K06C 151535Z AUTO 18010G17KT 10SM SCT060 BKN080 OVC090 12/06 A2941 RMK AO2 T01150059
+ Add Your Business

4H1 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

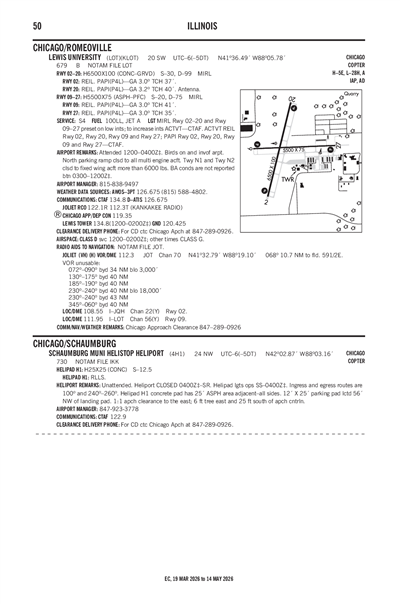

FAA A/FD Pages

Terminal Area Forecast

KORD (8nm)
Sun, 3/15 9:51 AM CDT
Sun, 3/15 10:00 AM CDT - Mon, 3/16 1:00 PM CDT
MVFR
Temporary 10:00 AM CDT - 12:00 PM CDT
Thunderstorm and Rain
Broken 3,000'
3sm
Calm
VFR
10:00 AM CDT - 12:00 PM CDT
Light Showers and Rain
Broken 4,000'
Scattered 3,000'
6sm
190° 15kts
Gusts 25kts
MVFR
12:00 PM CDT - 8:00 PM CDT
Showers in vicinity
Overcast 4,000'
Broken 2,500'
6sm
190° 24kts
Gusts 40kts
IFR
Temporary 5:00 PM CDT - 8:00 PM CDT
Thunderstorm and Rain
Broken 2,500'
1.5sm
230° 25kts
Gusts 40kts
IFR
8:00 PM CDT - 2:00 AM CDT
Light Showers and Rain and Mist
Overcast 1,200'
Broken 800'
4sm
300° 15kts
Gusts 25kts
MVFR
2:00 AM CDT - 6:00 AM CDT
Light Snow
Overcast 2,500'
Broken 1,500'
3sm
300° 18kts
Gusts 28kts
MVFR
6:00 AM CDT - 1:00 PM CDT
Light Showers and Snow
Broken 2,500'
6sm
300° 22kts
Gusts 39kts
TAF KORD 151451Z 1515/1618 19015G25KT P6SM -SHRA SCT030 BKN040
   TEMPO 1515/1517 3SM TSRA BKN030CB
   FM151700 19024G40KT P6SM VCSH BKN025 OVC040
   TEMPO 1522/1601 23025G40KT 1 1/2SM TSRA BKN025CB
   FM160100 30015G25KT 4SM -SHRA BR BKN008 OVC012
   FM160700 30018G28KT 3SM -SN BKN015 OVC025
   FM161100 30022G39KT 6SM -SHSN BKN025
4H1
EffectiveExpiresCategoryNOTAM
Domestic
12/30/25
2336Z
3/30/26
0500Z
!IKK 12/300 4H1 OBST TOWER LGT (ASR 1223365) 420020.00N0880249.30W (2.6NM S 4H1) 873.0FT (132.9FT AGL) U/S 2512302336-2603300500
No
UNATNDD
VILLAGE OF SCHAUMBURG
101 SCHAUMBURG CT
SCHAUMBURG, IL 60193
Phone: 847-895-0007
ERIC TRYDEL
101 SCHAUMBURG COURT
SCHAUMBURG, IL 60193
Phone: 847-923-3778
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
IKK
--
SS-2200
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway H1

25 ft. x 25 ft.
CONC
Good
NONE


12,000lbs
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 42° 02' 52"N N/A
Longitude 88° 03' 10"W N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights RLLS
Centerline Lights
Runway End Identifier Lights
A110-1INGRESS/EGRESS ROUTES ARE 100 DEGS & 240-260 DEGS.
A110-2HELIPORT CLSD 2200-SR.
A110-3(E111-1) NO NGT OPS UNLESS WIND INDICATOR LGTD & BCN INSTALLED; UNAUTHORIZED PERSONS SEGREGATED FM ACCESS DURG FLT OPS BY NON-OBSTG SAFETY BARRIER.
A110-4FOR CD CTC CHICAGO APCH AT 847-289-0926.
A110-51:1 APCH CLEARANCE TO THE EAST; 6 FT TREE EAST & 25 FT SOUTH OF APCH CNTRLN.
A31-H1CONC PAD HAS 25 FT ASPH AREA ADJACENT - ALL SIDES. 12 FT X 25 FT PARKING PAD LOCATED 56 FT NW OF LANDING PAD.
A52-H1H1 HAS 25 FT BLDGS 400 FT & 500 FT NORTH; 25 FT BLDGS 800 FT & 900 FT NORTHWEST; 25 FT BLDG 800 FT & 1000 FT SOUTHWEST; 65 FT BLDG 1000 FT SOUTHEAST; 63 FT BLDG 550 FT WESTSOUTHWEST; 73 FT BLDG 585 FT W & 42 FT BLDG 378 FT EAST; 57 FT BLDG 316 FT SOUTH.
A81-APTSS-2200
E111PRVDD ALL APCH/DEPOPNS FM 080-100 DEGS & FM 240-260 DEGS; TKOF/LDG AREA APROPLY MKD; NON-OBSTNG WIND WIND INDICATOR MAINTD; AVOID OVERFLIGHT OF RESIDENTIAL AREA 2000 FT W.
SCHAUMBURG MUNI HELISTOP (IATA: 4H1) is a public heliport located in CHICAGO/SCHAUMBURG, IL, US.
