4N1
Local
4N1
GREENWOOD LAKE
Public
PUB
1 miles E of WEST MILFORD, NJ, US
View on
Map
Status
Operational
Coordinates
41° 07' 42"N
74° 20' 47"W
Elevation
790' MSL
Pattern Alt
1790' MSL
Mag Variation
13°W
Declination
13°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
7/9/26-8/6/26
KFWN (13nm)
VFR
10:53 PM EDT
RAW
Broken 9,000'
Scattered 5,500'
Few 2,300'
Viz
10sm
Temp
75°F
Dew
71°F
Pres
29.79"Hg
Wind
Calm
RMK
AO2 RAB10E26 SLP084 P0000 60000 T02390217 58012 $
METAR KFWN 030253Z AUTO 00000KT 10SM FEW023 SCT055 BKN090 24/22 A2979 RMK AO2 RAB10E26 SLP084 P0000 60000 T02390217 58012 $
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
4N1 FBOs
Promote Listing
Greenwood Lake Airport
UNICOM: 122.9
Phone: (973) 728-7721
0 Reviews
(
Read
|
Sign In To Write
)
Titan
As of
7/29
100LL
JET
A
JET
A (FSII)
MOGAS
UL94
Self Serve
6.39
7.89
Full Serve
6.69
7.89
Fuel Notes
Prices include tax
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
Common
CTAF
122.9
AUTOMATED UNICOM; 3 CLICKS TO ACTVT.; ACTVT MIRL RWY 06/24 - CTAF, 5 CLICKS. PAPI RWY 24 OPR CONSLY.
Approach
NEWARK APPROACH
127.6
Departure
NEWARK DEPARTURE
127.6

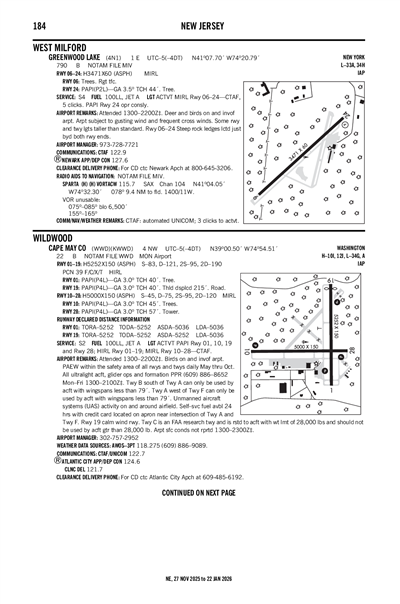

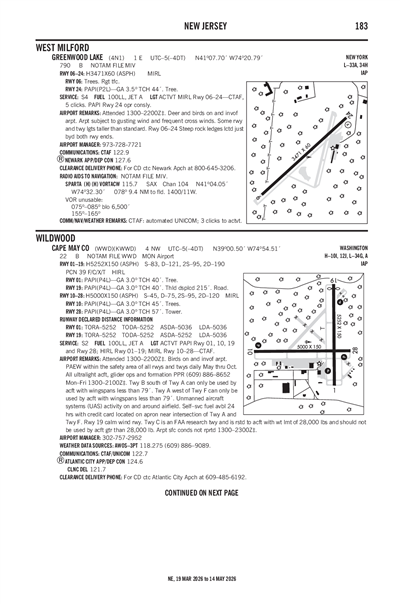

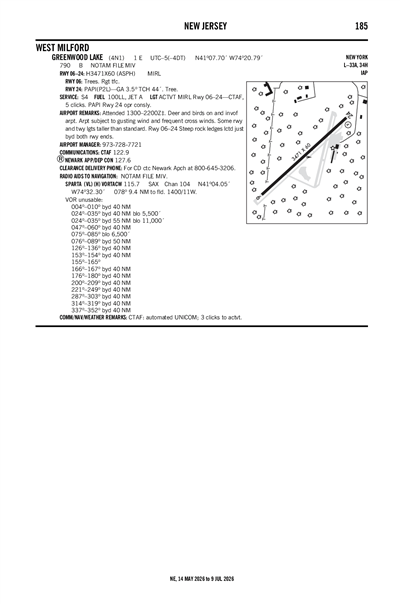

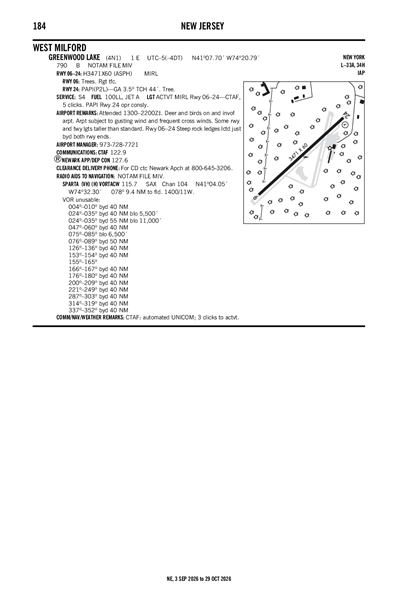

FAA A/FD Pages
FAA A/FD Page
Airport Minimums
TAKEOFF MINIMUMS
Instrument Approach
RNAV (GPS) RWY 06
RNAV (GPS) RWY 24
Terminal Area Forecast
KTEB (21nm)
RAW
Reported
Sun, 8/2 10:31 PM EDT
Valid
Sun, 8/2 11:00 PM EDT - Tue, 8/4 2:00 AM EDT
MVFR
11:00 PM EDT - 5:00 AM EDT
Light Showers and Rain
Overcast 1,500'
Viz
6sm
Wind
160° 7kts
IFR
Temporary
5:00 AM EDT - 9:00 AM EDT
Thunderstorm and Rain and Mist
Overcast 1,200'
Scattered 900'
Viz
2sm
Wind
Calm
MVFR
5:00 AM EDT - 11:00 AM EDT
Showers and Rain and Mist
Overcast 1,200'
Scattered 900'
Viz
3sm
Wind
190° 9kts
IFR
Temporary
11:00 AM EDT - 2:00 PM EDT
Thunderstorm and Rain
Broken 2,500'
Viz
2sm
Wind
Calm
MVFR
11:00 AM EDT - 3:00 PM EDT
Showers and Rain and Mist
Broken 2,500'
Scattered 1,500'
Viz
3sm
Wind
210° 11kts
Gusts 19kts
IFR
3:00 PM EDT - 6:00 PM EDT
Thunderstorm and Rain
Broken 3,500'
Viz
2sm
Wind
Calm
VFR
3:00 PM EDT - 6:00 PM EDT
Broken 10,000'
Broken 5,000'
Scattered 3,500'
Viz
6sm
Wind
230° 10kts
Gusts 17kts
VFR
6:00 PM EDT - 9:00 PM EDT
Scattered 25,000'
Scattered 5,000'
Few 3,500'
Viz
6sm
Wind
250° 7kts
VFR
9:00 PM EDT - 2:00 AM EDT
Broken 25,000'
Scattered 5,000'
Viz
6sm
Wind
340° 6kts
TAF KTEB 030231Z 0303/0406 16007KT 6SM -SHRA OVC015
FM030900 19009KT 3SM SHRA BR SCT009 OVC012
TEMPO 0309/0313 2SM TSRA BR SCT009 OVC012CB
FM031500 21011G19KT 3SM SHRA BR SCT015 BKN025
TEMPO 0315/0318 2SM TSRA BKN025CB
FM031900 23010G17KT P6SM SCT035 BKN050 BKN100
PROB30 0319/0322 2SM TSRA BKN035CB
FM032200 25007KT P6SM FEW035 SCT050 SCT250
FM040100 34006KT P6SM SCT050 BKN250
4N1
Effective
Expires
Category
NOTAM
FDC
11/7/24
2040Z
!FDC 4/0951 4N1 ODP GREENWOOD LAKE, WEST MILFORD, NJ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKE-OFF MINIMUMS: RWY 24, 500-2 3/4 WITH MINIMUM CLIMB OF 220 FPNM TO 1400; OR 1300-2 3/4 FOR CLIMB IN VISUAL CONDITIONS.
ALL OTHER DATA REMAINS AS PUBLISHED. 2411072040-2611072038EST
ATC Tower
No
Attendance
0800-1700
Owner
N.J. DEPT. TRANSPORTATION
1035 PARKWAY AVE. P.O. BOX 610
TRENTON, NJ 08625
Phone: 609-963-2100
Manager
TIM WAGNER
126A AIRPORT RD BOX 1
WEST MILFORD, NJ 07480
Phone: 973-728-7721
FSS
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
NOTAM
MIV
Light Schedule
--
Lights
ACTVT MIRL RWY 06/24 - CTAF, 5 CLICKS. PAPI RWY 24 OPR CONSLY.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Air Ambulance
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales
Runway 06/24
Dimensions
3471 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 06
Runway 24
True Heading
48°
228°
Traffic Pattern
Right
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
41° 07' 31"N
41° 07' 54"N
Longitude
74° 21' 04"W
74° 20' 31"W
Elevation
789'
789'
Threshold Crossing Height
--
44 ft. AGL
Visual Glide Path Angle
--
3.5°
Visual Slope Indicator
--
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
No
No
A110-1
RY 06/24 STEEP ROCK LEDGES LCTD JUST BYD BOTH RY ENDS.
A110-2
ARPT SUBJECT TO GUSTING WIND & FREQUENT CROSSWINDS.
A110-3
SOME RWY AND TWY LGTS TALLER THAN STANDARD.
A110-5
DEER AND BIRDS ON AND INVOF ARPT.
A110-6
FOR CD CTC NEWARK APCH AT 800-645-3206.
A110-7
DROP ZONE LCTD SE SIDE OF RWY.
A52-06
TREES BELOW RWY END, CLIFF.
A81-APT
ACTVT MIRL RWY 06/24 - CTAF, 5 CLICKS. PAPI RWY 24 OPR CONSLY.
E100
AUTOMATED UNICOM; 3 CLICKS TO ACTVT.
E111
RECOMMENDED THAT WIRES RWY 6 APCH BE MKD WITH PLASTIC BALLS OR PUT UNDERGND (WIRES NOW MKD & LGTS MOUNTED ON POLES).
GREENWOOD LAKE (IATA: 4N1) is a public airport located in WEST MILFORD, NJ, US.
