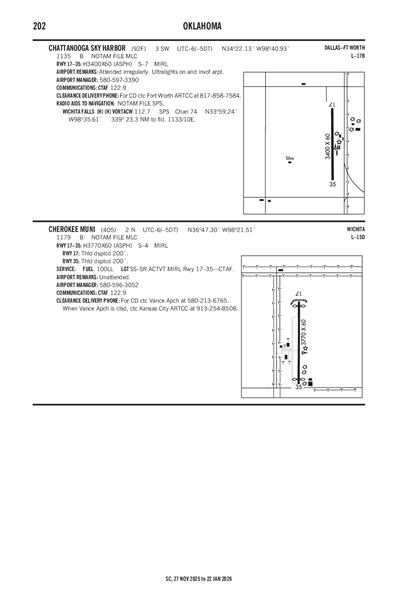

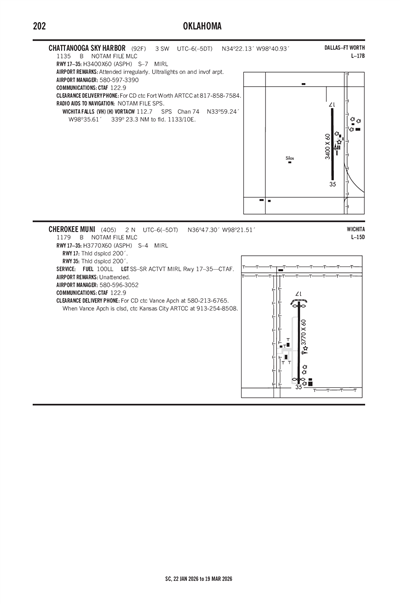

CHEROKEE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4O5
Local 4O5
CHEROKEE MUNI
PublicPUB

2 miles N of CHEROKEE, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 47' 18"N 98° 21' 30"W
Elevation
1179' MSL
Pattern Alt
2179' MSL
Mag Variation
4°E
Declination
7°E
Fuel
100LL
FSS
MC ALESTER (MLC)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
6/11/26-7/9/26
KAVK (15nm) VFR
4:35 PM CDT
Clear
10sm
86°F
75°F
29.80"Hg
110° 14kts
Gusts 20kts
A01
METAR KAVK 252135Z AUTO 11014G20KT 10SM CLR 30/24 A2980 RMK A01
+ Add Your Business

4O5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
SS-SR ACTVT MIRL RY 17/35 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KEND (34nm)
Thu, 6/25 1:00 PM CDT
Thu, 6/25 1:00 PM CDT - Fri, 6/26 7:00 PM CDT
VFR
Becoming 1:00 PM CDT - 5:00 PM CDT
Broken 5,000'
6sm
29.65"Hg
150° 15kts
Gusts 25kts
MVFR
1:00 PM CDT - 7:00 PM CDT
Showers in vicinity
Broken 1,500'
6sm
29.76"Hg
120° 15kts
Gusts 25kts
VFR
Becoming 5:00 PM CDT - 12:00 AM CDT
Few 15,000'
6sm
29.68"Hg
190° 15kts
Gusts 25kts
MVFR
Temporary 10:00 PM CDT - 1:00 AM CDT
Thunderstorm and Rain
Broken 2,500'
3.73sm
VRB° 25kts
Gusts 35kts
IFR
Becoming 12:00 AM CDT - 1:00 AM CDT
Mist
Broken 2,500'
2.98sm
29.73"Hg
VRB° 6kts
LIFR
Becoming 1:00 AM CDT - 9:00 AM CDT
Mist
Overcast 1,000'
Broken 300'
2.24sm
29.73"Hg
VRB° 5kts
IFR
Becoming 9:00 AM CDT - 3:00 PM CDT
Mist
Overcast 2,000'
Broken 1,200'
2.98sm
29.79"Hg
VRB° 6kts
MVFR
Becoming 3:00 PM CDT - 7:00 PM CDT
Mist
Overcast 10,000'
Broken 2,500'
3.73sm
29.73"Hg
VRB° 4kts
TAF KEND 251800Z 2518/2624 12015G25KT 9999 VCSH BKN015 QNH2977INS
   BECMG 2518/2520 15015G25KT 9999 NSW BKN050 QNH2966INS
   BECMG 2522/2523 19015G25KT 9999 FEW150 QNH2967INS
   TEMPO 2603/2606 VRB25G35KT 6000 TSRA BKN025CB
   BECMG 2605/2606 VRB06KT 4800 BR BKN025 QNH2973INS
   BECMG 2606/2608 VRB05KT 3600 BR BKN003 OVC010 QNH2974INS
   BECMG 2614/2615 VRB06KT 4800 BR BKN012 OVC020 QNH2978INS
   BECMG 2620/2621 VRB04KT 6000 BR BKN025 OVC100 QNH2974INS TX31/2521Z TN21/2611Z
4O5
No NOTAM Available
No
UNATNDD
CITY OF CHEROKEE
121 N GRAND
CHEROKEE, OK 73728
Phone: 580-596-3052
CHAD ROACH
112 N GRAND
CHEROKEE, OK 73728
Phone: 580-596-3052
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
SS-SR ACTVT MIRL RY 17/35 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 17/35

3770 ft. x 60 ft.
ASPH
Good
NONE
MED

4,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 181°1°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 36° 47' 37"N 36° 46' 59"N
Longitude 98° 21' 30"W 98° 21' 30"W
Elevation 1,178' 1,179'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC VANCE APCH AT 580-213-6765. WHEN VANCE APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
A58-178 FT FENCE 50 FT FM RWY END 47:1 CLNC SLOPE TO DTHR.
A58-3515' ROAD 130' FM RWY END CROSSES EXT CL; 8' FENCE 50' FM RWY END 47:1 CLC SLOPE TO DISP THRLD
A81-APTSS-SR ACTVT MIRL RY 17/35 - CTAF.
CHEROKEE MUNI (IATA: 4O5) is a public airport located in CHEROKEE, OK, US.
