iFlightPlanner



...
GOLD BEACH MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4S1
Local 4S1
GOLD BEACH MUNI
PublicPUB

0 miles W of GOLD BEACH, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 24' 55"N 124° 25' 30"W
Elevation
21' MSL
Pattern Alt
1021' MSL
Mag Variation
14°E
Declination
14°E
Fuel
100LL
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
5/14/26-6/11/26
K4S1 VFR
6:15 AM PDT
Scattered 5,000'
10sm
50°F
48°F
30.27"Hg
050° 8kts
AO2
METAR K4S1 161315Z AUTO 05008KT 10SM SCT050 10/09 A3027 RMK AO2
+ Add Your Business

4S1 FBOs

Promote Listing
Gold Beach Municipal Airport
UNICOM: 122.8
Phone: (541) 247-6269
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.70
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.15
(541) 247-2518

Common

CTAF 122.8
ACTVT REIL RWY 16 & 34; PAPI 16; MIRL RWY 16/34 - CTAF.
UNICOM 122.8
UNICOM UNMON.

Center

SEATTLE CENTER 127.55
LOW, APCH/DEP CTL SVC PRVDD BY SEATTLE ARTCC (ZSE) ON 127.55/254.35 (HORTON RCAG ).

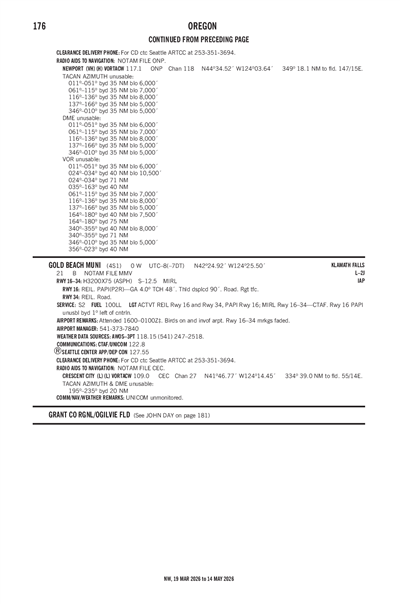

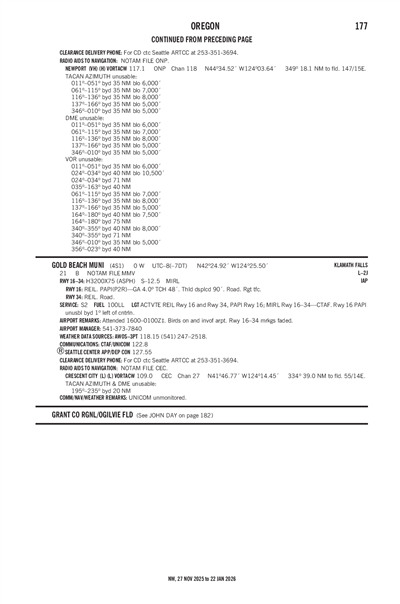

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KCEC (39nm)
Sat, 5/16 4:26 AM PDT
Sat, 5/16 5:00 AM PDT - Sun, 5/17 5:00 AM PDT
VFR
5:00 AM PDT - 9:00 AM PDT
Broken 4,000'
6sm
350° 7kts
VFR
9:00 AM PDT - 11:00 AM PDT
Broken 5,000'
6sm
330° 10kts
VFR
11:00 AM PDT - 2:00 PM PDT
Scattered 25,000'
6sm
340° 12kts
Gusts 22kts
VFR
2:00 PM PDT - 10:00 PM PDT
Few 20,000'
6sm
330° 20kts
Gusts 30kts
VFR
10:00 PM PDT - 1:00 AM PDT
Sky Clear
6sm
350° 17kts
Gusts 24kts
VFR
1:00 AM PDT - 5:00 AM PDT
Scattered 25,000'
6sm
360° 14kts
TAF KCEC 161126Z 1612/1712 35007KT P6SM BKN040
   FM161600 33010KT P6SM BKN050
   FM161800 34012G22KT P6SM SCT250
   FM162100 33020G30KT P6SM FEW200
   FM170500 35017G24KT P6SM SKC
   FM170800 36014KT P6SM SCT250
4S1
EffectiveExpiresCategoryNOTAM
Domestic
5/14/26
0538Z
!MMV 05/108 4S1 SVC AUTOMATED WX BCST SYSTEM UNREL 2605140538-2606042000EST
4/20/26
0303Z
8/18/26
0303Z
!MMV 04/110 4S1 OBST TOWER LGT (ASR 1252599) 422624.40N1242502.10W (1.5NM NNE 4S1) 848.1FT (146.0FT AGL) U/S 2604200303-2608180303
4/16/26
0325Z
6/15/26
2359Z
!MMV 04/095 4S1 OBST TOWER LGT (ASR 1034379) 422624.70N1242500.70W (1.5NM NNE 4S1) 833.0FT (136.2FT AGL) U/S 2604160325-2606152359
1/6/26
1420Z
Runway!MMV 01/034 4S1 RWY 16 RWY END ID LGT U/S 2601061420-2607062111EST
No
0800-1700
PORT OF GOLD BEACH
BOX 1126
GOLD BEACH, OR 97444
Phone: 541-247-6269
WALT SCHERBATH
BOX 1126
GOLD BEACH, OR 97444
Phone: 541-373-7840
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
--
ACTVT REIL RWY 16 & 34; PAPI 16; MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 16/34

3200 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 175°355°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 42° 25' 11"N 42° 24' 40"N
Longitude 124° 25' 31"W 124° 25' 28"W
Elevation 20' 20'
Threshold Crossing Height 48 ft. AGL --
Visual Glide Path Angle 4° --
Visual Slope Indicator P2R --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS ON AND INVOF ARPT.
A110-2FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A14OPS SCOTT PEARSON 541-373-7835.
A42-16_CONDFADED
A42-34_CONDFADED
A43-16UNUSBL BYD 1 DEG LEFT OF CNTRLN.
A57-16APCH RATIO 20:1 TO DTHR; TREES 4300 FT.
A81-APTACTVT REIL RWY 16 & 34; PAPI 16; MIRL RWY 16/34 - CTAF.
A82UNICOM UNMON.
GOLD BEACH MUNI (IATA: 4S1) is a public airport located in GOLD BEACH, OR, US.
