iFlightPlanner



...

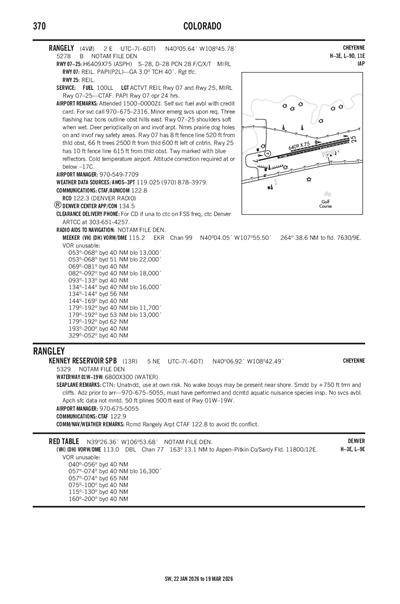

RANGELY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4V0
IATA RNGLocal 4V0
RANGELY
PublicPUB

2 miles E of RANGELY, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 05' 38"N 108° 45' 47"W
Elevation
5278' MSL
Pattern Alt
6278' MSL
Mag Variation
10°E
Declination
10°E
Fuel
100LL
FSS
DENVER (DEN)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
9/3/26-10/1/26
K4V0 VFR
2:55 PM MDT
Clear
10sm
88°F
46°F
30.05"Hg
270° 8kts
AO2 T03100080 PWINO
METAR K4V0 122055Z AUTO 27008KT 10SM CLR 31/08 A3005 RMK AO2 T03100080 PWINO
+ Add Your Business

4V0 FBOs

Promote Listing
Rangley Airport
UNICOM: 122.8
Phone: (970) 675-2316
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 9/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.75
Full Serve
Fuel Notes
Prices include tax

4V0 Flight Schools & Aircraft Rental

Promote Listing
Colorado Northwestern Community College - AMT
Phone: (970) 675-3271
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.025
(970) 878-3979

Common

CTAF 122.8
ACTVT REIL RWY 07 & 25; MIRL RWY 07/25 - CTAF. PAPI RWY 07 OPER 24 HRS.
UNICOM 122.8
AUTOMATED UNICOM.

Center

DENVER CENTER 134.5
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON 134.5/327.8 GRAND MESA/B/ RCAG.

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KVEL (40nm)
Sat, 9/12 11:40 AM MDT
Sat, 9/12 12:00 PM MDT - Sun, 9/13 12:00 PM MDT
VFR
12:00 PM MDT - 2:00 PM MDT
Few 10,000'
6sm
140° 7kts
VFR
2:00 PM MDT - 9:00 PM MDT
Few 10,000'
6sm
220° 10kts
Gusts 18kts
VFR
9:00 PM MDT - 6:00 AM MDT
Broken 12,000'
Scattered 8,000'
6sm
270° 8kts
VFR
6:00 AM MDT - 12:00 PM MDT
Scattered 12,000'
6sm
VRB° 4kts
TAF KVEL 121740Z 1218/1318 14007KT P6SM FEW100
   FM122000 22010G18KT P6SM FEW100
   FM130300 27008KT P6SM SCT080 BKN120
   FM131200 VRB04KT P6SM SCT120
4V0
EffectiveExpiresCategoryNOTAM
Domestic
8/25/26
1555Z
Runway!DEN 08/706 4V0 RWY 07 PAPI UNUSABLE 2608251555-2702252111EST
FDC
5/6/26
1530Z
!FDC 6/8371 4V0 IAP RANGELY, RANGELY, CO.
RNAV (GPS) RWY 7, ORIG...
LPV DA # 5614/HAT 365. LPV DA 6105/HAT 856.
2605061530-2805061530EST
No
0800-1700
FOR SERVCIE CALL 970-675-2316
RIO BLANCO COUNTY
CO COURTHOUSE PO BOX 599
MEEKER, CO 81641
Phone: 970-878-4001
ZACHARY GUTHRIE
2248 E MAIN
RANGELY, CO 81648
Phone: 970-549-7709
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT REIL RWY 07 & 25; MIRL RWY 07/25 - CTAF. PAPI RWY 07 OPER 24 HRS.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 07/25

6409 ft. x 75 ft.
ASPH
Fair
NONE
MED
28/F/C/X/T
28,000lbs
28,000lbs
--
--
  Runway 07 Runway 25
True Heading 77°257°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 05' 31"N 40° 05' 45"N
Longitude 108° 46' 27"W 108° 45' 07"W
Elevation 5,237' 5,278'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1THREE FLASHING HAZ BCNS OUTLINE OBSTN HILLS E.
A110-10COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -17C.
A110-11NMRS PRAIRIE DOG HOLES ON AND INVOF RWY SAFETY AREAS.
A110-2DEER PERIODICALLY ON & INVOF ARPT.
A110-4TWY MARKED WITH BLUE REFLECTORS.
A110-6RWY 07/25 SHOULDERS SOFT WHEN WET.
A110-7RWY 07 HAS 8 FT FENCE LINE 520 FT FM THLD OB, 66 FT TREES 2500 FT FM THLD 600 FT LEFT OF CNTRLN.
A110-8RWY 25 HAS 10 FT FENCE LINE 615 FT FM THLD OB.
A110-9FOR CD CTC DENVER ARTCC AT 303-651-4257.
A17-H1FOR SERVCIE CALL 970-675-2316
A70-100LLSELF SVC FUEL AVBL WITH CREDIT CARD.
A71MINOR EMERGENCY SERVICES UPON REQUEST.
A81-APTACTVT REIL RWY 07 & 25; MIRL RWY 07/25 - CTAF. PAPI RWY 07 OPER 24 HRS.
A82AUTOMATED UNICOM.
RANGELY (IATA: 4V0) is a public airport located in RANGELY, CO, US.
