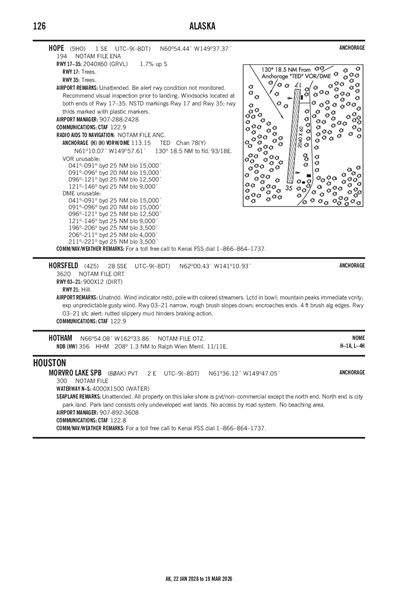

HORSFELD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4Z5
Local 4Z5
HORSFELD
PublicPUB

28 miles SSE of HORSFELD, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
62° 00' 26"N 141° 10' 56"W
Elevation
3620' MSL
Pattern Alt
4620' MSL
Mag Variation
18°E
Declination
29°E
Fuel
None Listed
FSS
NORTHWAY (ORT)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
6/11/26-7/9/26
CYXQ (26nm) VFR
3:00 PM MST
Overcast 25,000'
Broken 10,000'
Broken 4,000'
25sm
63°F
48°F
29.71"Hg
290° 6kts
CU5AC2CI1 /TR/LAST STFD OBS/NXT 261600Z/ SLP078 DENSITY ALT 3200FT
METAR CYXQ 252200Z 29006KT 25SM BKN040 BKN100 OVC250 17/09 A2971 RMK CU5AC2CI1 /TR/LAST STFD OBS/NXT 261600Z/ SLP078 DENSITY ALT 3200FT
+ Add Your Business

4Z5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAOR (61nm)
Thu, 6/25 9:20 AM AKDT
Thu, 6/25 10:00 AM AKDT - Fri, 6/26 10:00 AM AKDT
VFR
10:00 AM AKDT - 4:00 PM AKDT
Scattered 6,000'
6sm
320° 5kts
VFR
Temporary 4:00 PM AKDT - 8:00 PM AKDT
Light Thunderstorm and Rain
Broken 5,000'
6sm
090° 12kts
Gusts 20kts
VFR
4:00 PM AKDT - 1:00 AM AKDT
Thunderstorm in vicinity
Scattered 6,000'
6sm
310° 8kts
VFR
1:00 AM AKDT - 10:00 AM AKDT
Broken 10,000'
6sm
280° 7kts
TAF PAOR 251720Z 2518/2618 32005KT P6SM SCT060
   FM260000 31008KT P6SM VCTS SCT060CB
   TEMPO 2600/2604 09012G20KT 6SM -TSRA BKN050CB
   FM260900 28007KT P6SM BKN100
4Z5
No NOTAM Available
No
UNATNDD
PUBLIC DOMAIN

N/A
NORTHWAY FSS (ORT)
Toll Free: 1-800-478-6611
ORT
--
--
N/A
No
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 03/21

900 ft. x 12 ft.
DIRT
Poor
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2LCTD IN BOWL; MT PEAKS IMT VCNTY; EXP UNPREDICTABLE GUSTY WIND.
A30-03/21NARROW ROUGH BRUSH SLOPES DOWN; ENCROACHES ENDS. 4 FT BRUSH ALG EDGES.
A33-03/21_SURFALERT: RUTTED; SLIPPERY MUD HINDERS BA.
A83NSTD; POLE WITH COLORED STREAMERS.
HORSFELD (IATA: 4Z5) is a public airport located in HORSFELD, AK, US.
