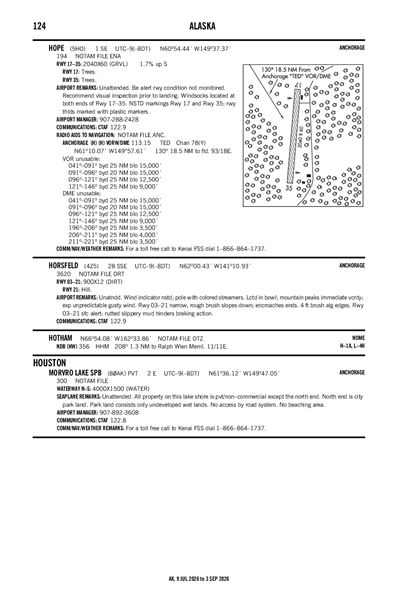

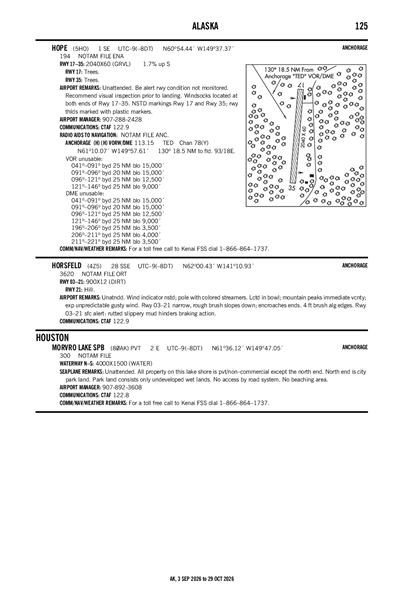

HORSFELD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

4Z5
Local 4Z5
HORSFELD
PublicPUB

28 miles SSE of HORSFELD, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
62° 00' 26"N 141° 10' 56"W
Elevation
3620' MSL
Pattern Alt
4620' MSL
Mag Variation
18°E
Declination
29°E
Fuel
None Listed
FSS
NORTHWAY (ORT)
Sectional
ANCHORAGE
ARTCC
ANCHORAGE (ZAN)
Data Effective
10/1/26-10/29/26
PAOR (61nm) VFR
3:53 PM AKDT
Overcast 11,000'
10sm
29°F
24°F
29.46"Hg
190° 4kts
AO2 SLP011 T10171044 11017 21050 58034 $
METAR PAOR 192353Z 19004KT 10SM OVC110 M02/M04 A2946 RMK AO2 SLP011 T10171044 11017 21050 58034 $
+ Add Your Business

4Z5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAOR (61nm)
Mon, 10/19 3:40 PM AKDT
Mon, 10/19 4:00 PM AKDT - Tue, 10/20 4:00 PM AKDT
VFR
4:00 PM AKDT - 9:00 PM AKDT
Showers in vicinity
Overcast 10,000'
6sm
140° 3kts
MVFR
9:00 PM AKDT - 1:00 PM AKDT
Light Showers and Rain and Showers and Snow
Overcast 5,000'
Broken 2,500'
6sm
VRB° 3kts
VFR
1:00 PM AKDT - 4:00 PM AKDT
Light Freezing Rain and Snow
No Clouds
N/A
Calm
MVFR
1:00 PM AKDT - 4:00 PM AKDT
Light Showers and Rain and Showers and Snow
Overcast 2,500'
6sm
320° 6kts
TAF PAOR 192340Z 2000/2024 14003KT P6SM VCSH OVC100
   FM200500 VRB03KT 6SM -SHRASN BKN025 OVC050
   FM202100 32006KT P6SM -SHRASN OVC025
   PROB30 2021/2024 -FZRASN
4Z5
No NOTAM Available
No
UNATNDD
PUBLIC DOMAIN

N/A
NORTHWAY FSS (ORT)
Toll Free: 1-800-478-6611
ORT
--
--
N/A
No
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 03/21

900 ft. x 12 ft.
DIRT
Poor
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2LCTD IN BOWL; MT PEAKS IMT VCNTY; EXP UNPREDICTABLE GUSTY WIND.
A30-03/21NARROW ROUGH BRUSH SLOPES DOWN; ENCROACHES ENDS. 4 FT BRUSH ALG EDGES.
A33-03/21_SURFALERT: RUTTED; SLIPPERY MUD HINDERS BA.
A83NSTD; POLE WITH COLORED STREAMERS.
HORSFELD (IATA: 4Z5) is a public airport located in HORSFELD, AK, US.
