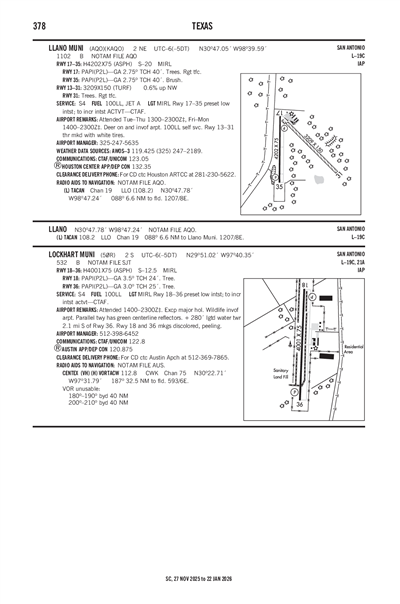

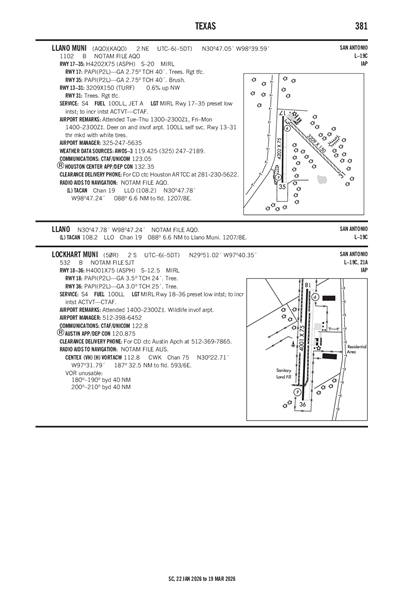

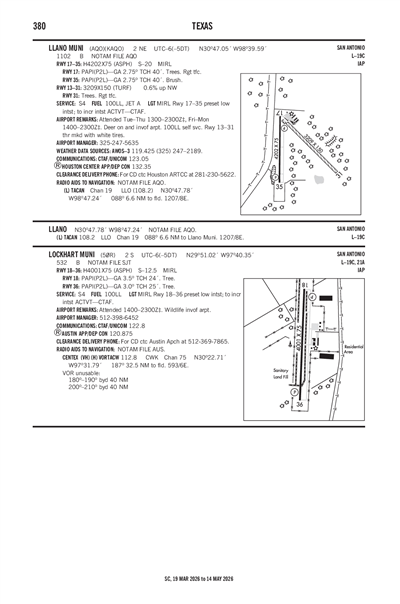

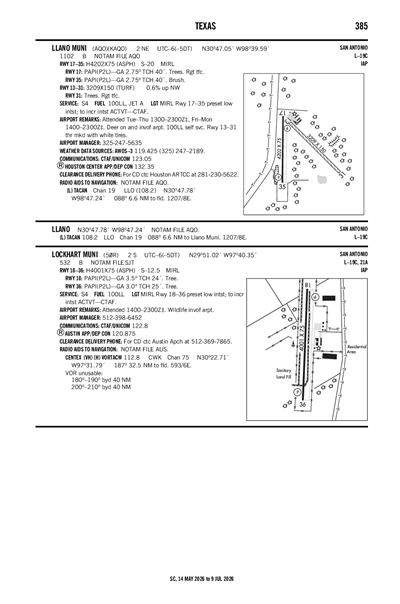

LOCKHART MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

50R
Local 50R
LOCKHART MUNI
PublicPUB

2 miles S of LOCKHART, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 51' 01"N 97° 40' 21"W
Elevation
532' MSL
Pattern Alt
1532' MSL
Mag Variation
3°E
Declination
7°E
Fuel
100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
HOUSTON (ZHU)
Data Effective
4/16/26-5/14/26
KHYI (10nm) VFR
3:56 PM CDT
Scattered 4,600'
10sm
89°F
70°F
29.71"Hg
180° 8kts
AO2 SLP052 T03170211 58020 $
METAR KHYI 242056Z 18008KT 10SM SCT046 32/21 A2971 RMK AO2 SLP052 T03170211 58020 $
+ Add Your Business

50R FBOs

Promote Listing
Martin & Martin Aviation
UNICOM: 122.8
Phone: (512) 376-9608
Other: (512) 740-8457
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.75
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
DUSK-DAWN. MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
UNICOM 122.8

Approach

AUSTIN APPROACH 120.875

Departure

AUSTIN DEPARTURE 120.875

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAUS (20nm)
Fri, 4/24 3:56 PM CDT
Fri, 4/24 4:00 PM CDT - Sat, 4/25 7:00 PM CDT
VFR
4:00 PM CDT - 2:00 AM CDT
Broken 20,000'
Scattered 4,000'
6sm
190° 5kts
Gusts 18kts
MVFR
2:00 AM CDT - 4:00 AM CDT
Overcast 1,500'
6sm
180° 7kts
IFR
4:00 AM CDT - 11:00 AM CDT
Overcast 700'
6sm
190° 5kts
VFR
11:00 AM CDT - 3:00 PM CDT
Broken 3,500'
Scattered 2,500'
6sm
190° 8kts
VFR
3:00 PM CDT - 7:00 PM CDT
Scattered 25,000'
6sm
170° 8kts
TAF KAUS 242056Z 2421/2524 19005G18KT P6SM SCT040 BKN200
   FM250700 18007KT P6SM OVC015
   FM250900 19005KT P6SM OVC007
   FM251600 19008KT P6SM SCT025 BKN035
   FM252000 17008KT P6SM SCT250
50R
EffectiveExpiresCategoryNOTAM
Domestic
3/26/26
2330Z
5/10/26
2329Z
!SJT 03/361 50R OBST TOWER LGT (ASR 1059907) 295329.10N0973945.20W (2.5NM NNE 50R) 906.8FT (378.9FT AGL) U/S 2603262330-2605102329
3/6/26
1604Z
6/4/26
0500Z
!SJT 03/064 50R OBST TOWER LGT (ASR 1206233) 294539.90N0973917.40W (5.4NM S 50R) 714.9FT (314.0FT AGL) U/S 2603061604-2606040500
2/1/26
2310Z
5/2/26
0500Z
!SJT 02/010 50R OBST TOWER LGT (ASR 1242973) 294718.30N0974357.00W (4.9NM SW 50R) 798.9FT (254.9FT AGL) U/S 2602012310-2605020500
FDC
8/12/25
1124Z
!FDC 5/5837 50R IAP LOCKHART MUNI, LOCKHART, TX.
RNAV (GPS) RWY 36, ORIG-C...
LNAV CAT A/B/C MDA 1080/HAT 550. VIS CAT C 1 5/8.
DISREGARD JOREN FIX AND JOREN FIX ALTITUDE.
ANTENNA TOWER, 737 MSL, 3.15 NM SOUTH OF RWY 36 (2025-ASW-7287-OE).
2508121124-2708121124EST
2/12/25
1652Z
!FDC 5/2346 50R IAP LOCKHART MUNI, LOCKHART, TX.
RNAV (GPS) RWY 18, ORIG-C...
CHANGE NOTE AT SEEDS TO READ: PROCEDURE NA FOR ARRIVALS AT SEEDS ON T256 EASTBOUND AND T466 SOUTHEAST BOUND.
2502121652-2702121652EST
No
0800-1700
CITY OF LOCKHART
PO BOX 239
LOCKHART, TX 78644
Phone: 512-398-3461
SEAN KELLEY
PO BOX 239
LOCKHART, TX 78644
Phone: 512-398-6452
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
--
DUSK-DAWN. MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 18/36

4001 ft. x 75 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 51' 21"N 29° 50' 41"N
Longitude 97° 40' 20"W 97° 40' 21"W
Elevation 532' 524'
Threshold Crossing Height 24 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-3WILDLIFE INVOF ARPT.
A110-4FOR CD CTC AUSTIN APCH AT 512-369-7865.
A14PUBLIC WORKS
A58-3610 FT TREE, 3 FT DSTC 172 FT L.
A81-APTDUSK-DAWN. MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
E111PRE DATES THE ACT.
LOCKHART MUNI (IATA: 50R) is a public airport located in LOCKHART, TX, US.
