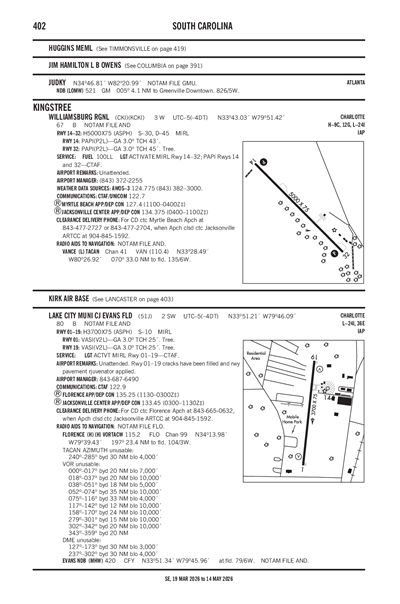

LAKE CITY MUNI CJ EVANS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

51J
Local 51J
LAKE CITY MUNI CJ EVANS FLD
PublicPUB

2 miles SW of LAKE CITY, SC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 51' 13"N 79° 46' 05"W
Elevation
80' MSL
Pattern Alt
1080' MSL
Mag Variation
8°W
Declination
6°W
Fuel
None Listed
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
4/16/26-5/14/26
KCKI (9nm) VFR
5:55 AM EDT
Clear
10sm
55°F
54°F
29.84"Hg
Calm
AO2
METAR KCKI 250955Z AUTO 00000KT 10SM CLR 13/12 A2984 RMK AO2
+ Add Your Business

51J FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 01/19 - CTAF.

Approach

FLORENCE APPROACH 135.25

Departure

FLORENCE DEPARTURE 135.25

Center

FLORENCE CENTER 133.45
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 133.45/306.3 (FLORENCE RCAG) WHEN FLORENCE APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KFLO (20nm)
Sat, 4/25 1:25 AM EDT
Sat, 4/25 2:00 AM EDT - Sun, 4/26 2:00 AM EDT
VFR
2:00 AM EDT - 11:00 AM EDT
Scattered 20,000'
6sm
240° 6kts
VFR
11:00 AM EDT - 4:00 PM EDT
Broken 20,000'
Broken 7,000'
6sm
250° 9kts
VFR
4:00 PM EDT - 12:00 AM EDT
Broken 12,000'
Scattered 7,000'
6sm
220° 12kts
MVFR
6:00 PM EDT - 12:00 AM EDT
Thunderstorm and Rain
Overcast 5,000'
4sm
Calm
MVFR
12:00 AM EDT - 2:00 AM EDT
Light Showers and Rain
Overcast 6,000'
Broken 3,000'
6sm
270° 5kts
TAF KFLO 250525Z 2506/2606 24006KT P6SM SCT200
   FM251500 25009KT P6SM BKN070 BKN200
   FM252000 22012KT P6SM SCT070 BKN120
   PROB30 2522/2604 4SM TSRA OVC050CB
   FM260400 27005KT 6SM -SHRA BKN030 OVC060
51J
EffectiveExpiresCategoryNOTAM
Domestic
4/25/26
0741Z
6/9/26
0616Z
!AND 04/263 51J OBST TOWER LGT (ASN 2023-ASO-24026-OE) 335129N0794542W (0.4NM NE 51J) 251FT (176FT AGL) U/S 2604250741-2606090616
4/20/26
1258Z
5/4/26
2359Z
!AND 04/195 51J OBST TOWER LGT (ASR 1331885) 335334.75N0794610.46W (1.7NM NE 51J) 335FT (255FT AGL) U/S 2604201258-2605042359
4/18/26
1810Z
7/17/26
0400Z
!AND 04/175 51J OBST TOWER LGT (ASR 1002969) 335540.50N0794910.70W (5.1NM NNW 51J) 476.7FT (386.8FT AGL) U/S 2604181810-2607170400
4/7/26
0000Z
7/5/26
0400Z
!AND 04/060 51J OBST TOWER LGT (ASR 1253718) 335350.40N0793608.90W (8.7NM ENE 51J) 378.9FT (307.1FT AGL) U/S 2604070000-2607050400
4/3/26
1904Z
6/3/26
2359Z
!AND 04/032 51J OBST TOWER LGT (ASR 1239212) 335407.60N0795951.30W (11.7NM WNW 51J) 615.2FT (500.0FT AGL) U/S 2604031904-2606032359
2/21/26
0600Z
6/1/26
2359Z
!AND 02/304 51J OBST TOWER LGT (ASR 1263360) 334739.60N0794038.30W (5.7NM SE 51J) 372.4FT (310.0FT AGL) U/S 2602210600-2606012359
2/21/26
0555Z
6/1/26
2359Z
!AND 02/297 51J OBST TOWER LGT (ASR 1266377) 335434.90N0800151.70W (13.4NM WNW 51J) 433.4FT (309.7FT AGL) U/S 2602210555-2606012359
FDC
2/19/26
1835Z
!FDC 6/6907 51J IAP LAKE CITY MUNI CJ EVANS FLD,
LAKE CITY, SC.
RNAV (GPS) RWY 1, ORIG-A...
LNAV CAT C VISIBILITY 1 3/8. DELETE NOTE DME/DME RNP-0.3 NA. PBN
REQUIREMENTS NOTE: RNP APCH - GPS. CHANGE ALTIMETER NOTE TO READ:
USE CKI ALTIMETER SETTING; WHEN NOT RECEIVED, USE FLO ALTIMETER
SETTING AND INCREASE ALL MDAS 40 FEET AND CIRCLING VISIBILITY CATS
B/C 1/4 SM. CHANGE CHART KINGSTREE AWOS-3 TO CHART CKI AWOS-3.
CHANGE CHART NOTE: STRAIGHT-IN MINIMUMS NA AT NIGHT TO CHART NOTE:
PROCEDURE NA AT NIGHT. CHANGE CHART NOTE: VISIBILITY REDUCTION BY
HELICOPTERS NA TO CHART NOTE: RWY 1 HELICOPTER VISIBILITY REDUCTION
BELOW 1 SM NOT AUTHORIZED.
THIS IS RNAV (GPS) RWY 1, ORIG-B. 2602191835-PERM
2/18/26
2138Z
!FDC 6/6256 51J IAP LAKE CITY MUNI CJ EVANS FLD, LAKE CITY, SC.
RNAV (GPS) RWY 19, ORIG-B...
DISREGARD STRAIGHT-IN RWY 19 NA AT NIGHT. PROCEDURE NA AT NIGHT.
2602182138-2802182136EST
No
UNATNDD
TOWN OF LAKE CITY
PO BOX 1329
LAKE CITY, SC 29560
Phone: (843) 374-5421
DUSAN FRIDL
PO BOX 1329
LAKE CITY, SC 29560
Phone: 843-687-6490
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
--
ACTVT MIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

3700 ft. x 75 ft.
ASPH
Good
NONE
MED

10,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 6°186°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 50' 55"N 33° 51' 31"N
Longitude 79° 46' 08"W 79° 46' 03"W
Elevation 80' 80'
Threshold Crossing Height 25 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11TOWN ADMIR IS STEPHANIE SNOWDEN.
A110-1RWY 19 TWO RDO TOWERS 1 1/2-1 3/4 MI. FROM END RIGHT OF CNTRLN; ALSO LGTD WATER TANK 3/4 MI FROM END.
A110-2FOR CD CTC FLORENCE APCH AT 843-665-0632, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A33-01/19_CONDCRACKS HAVE BEEN FILLED AND RWY PAVEMENT REJUVENATOR APPLIED.
A50-01CLOSE-IN TREELINE 169 FT L OF CNTRLN ON RWY 01 APCH.
A81-APTACTVT MIRL RWY 01/19 - CTAF.
E111EXISTED PRIOR TO 1958.
LAKE CITY MUNI CJ EVANS FLD (IATA: 51J) is a public airport located in LAKE CITY, SC, US.
