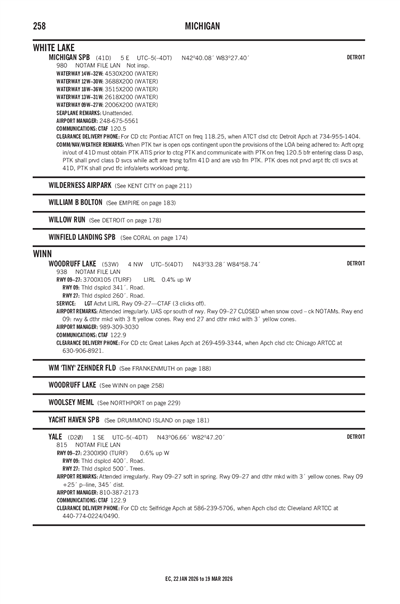

WOODRUFF LAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

53W
Local 53W
WOODRUFF LAKE
PublicPUB

4 miles NW of WINN, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 33' 17"N 84° 58' 44"W
Elevation
938' MSL
Pattern Alt
1938' MSL
Mag Variation
6°W
Declination
4°W
Fuel
None Listed
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CHICAGO (ZAU)
Data Effective
5/14/26-6/11/26
KMOP (11nm) VFR
4:35 AM EDT
Clear
10sm
41°F
39°F
30.00"Hg
Calm
AO2
METAR KMOP 150835Z AUTO 00000KT 10SM CLR 05/04 A3000 RMK AO2
+ Add Your Business

53W FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KMBS (39nm)
Fri, 5/15 1:20 AM EDT
Fri, 5/15 2:00 AM EDT - Sat, 5/16 2:00 AM EDT
VFR
2:00 AM EDT - 6:00 AM EDT
Scattered 25,000'
6sm
VRB° 3kts
VFR
6:00 AM EDT - 11:00 AM EDT
Broken 15,000'
6sm
200° 7kts
VFR
11:00 AM EDT - 7:00 PM EDT
Overcast 25,000'
Broken 10,000'
6sm
220° 11kts
VFR
7:00 PM EDT - 2:00 AM EDT
Scattered 25,000'
Scattered 10,000'
6sm
210° 6kts
TAF KMBS 150520Z 1506/1606 VRB03KT P6SM SCT250
   FM151000 20007KT P6SM BKN150
   FM151500 22011KT P6SM BKN100 OVC250
   FM152300 21006KT P6SM SCT100 SCT250
53W
No NOTAM Available
No
IREG
WOODRUFF LAKE AIRPORT ASSOCIATION
6438 W MILLBROOK RD
REMUS, MI 49340
Phone: 989-309-3030
WALTER BALLAUER
6438 W MILLBROOK RD
REMUS, MI 49340
Phone: 989-309-3030
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
--
N/A
Yes
No
No
None
No
None
None
None
None
None

Runway 09/27

3700 ft. x 105 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 88°268°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 33' 16"N 43° 33' 17"N
Longitude 84° 59' 09"W 84° 58' 19"W
Elevation 938' 924'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1UAS OPR SOUTH OF RWY.
A110-3FOR CD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A16CELL 989-400-9545.
A30-09/27CLSD WHEN SNOW COVD - CK NOTAMS.
A42-09_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A42-27_MARKRWY & DTHR MKD WITH 3 FT YELLOW CONES.
A52-09ALSO 17 FT ROAD, 134 FT DIST, 138 FT L/R; 10 FT ROAD, 80 FT DIST, 133 FT L/R.
A57-09APCH RATIO 7:1 TO DTHR OVR 50 FT TREE, 350 FT DIST, 125 FT R.
A57-27APCH RATIO 0:1 TO DTHR OVR 55 FT TREE, 0 FT DIST, 120 FT R.
E111PRVDD OBSTNS IN RWY APCH SFCS BE LWRD/REMOVED OR THRS DSPLCD & MKD TO PRVD MNM 20:1 APCH CLNC OVR ALL OBSTNS.
WOODRUFF LAKE (IATA: 53W) is a public airport located in WINN, MI, US.
