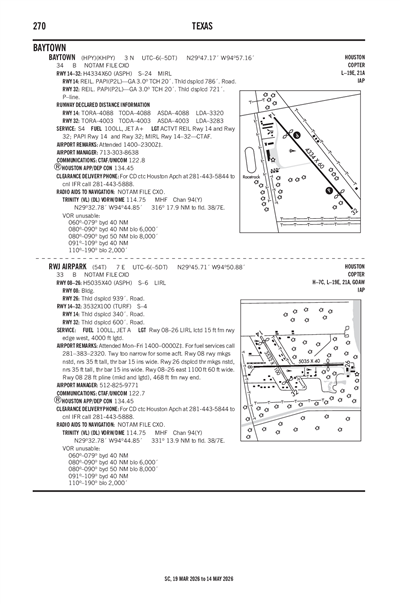

RWJ AIRPARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

54T
Local 54T
RWJ AIRPARK
PublicPUB

7 miles E of BAYTOWN, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 45' 43"N 94° 50' 53"W
Elevation
33' MSL
Pattern Alt
1033' MSL
Mag Variation
2°E
Declination
5°E
Fuel
JET A, 100LL
FSS
MONTGOMERY COUNTY (CXO)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KT41 (13nm) MVFR
7:35 AM CDT
Overcast 2,300'
Scattered 1,400'
10sm
69°F
65°F
29.76"Hg
200° 9kts
AO2 T02030186
METAR KT41 151235Z AUTO 20009KT 10SM SCT014 OVC023 20/19 A2976 RMK AO2 T02030186
+ Add Your Business

54T FBOs

Promote Listing
Bay Area Aviation
UNICOM: 122.7
Phone: (281) 383-2320
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 2/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.98 4.10
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
UNICOM 122.7

Arrival

BLUBELL STAR 124.225
CESAN STAR 121.3
HUDZY STAR 120.05
OHIIO STAR 120.05
SNDAY RNAV STAR 124.225
TKNIQ STAR 119.625
TSHIRT STAR 119.175
TSHRT STAR 119.175
WAPPL STAR 120.05

Approach

HOUSTON APPROACH 134.45

Departure

BLTWY RNAV DP 134.45
BORRN RNAV DP 134.45
DREMR DP 134.45
HOODO RNAV DP 134.45
HOUSTON DEPARTURE 134.45
KARRR RNAV DP 134.45
LURIC DP 134.45
MMALT RNAV DP 134.45
STRYA DP 134.45
STYCK DP 134.45
WATFO DP 134.45
WYLSN RNAV DP 134.45

Terminal Area Forecast

KEFD (19nm)
Sun, 3/15 7:00 AM CDT
Sun, 3/15 7:00 AM CDT - Mon, 3/16 1:00 PM CDT
MVFR
7:00 AM CDT - 2:00 PM CDT
Broken 2,000'
6sm
29.73"Hg
160° 7kts
VFR
Becoming 2:00 PM CDT - 10:00 PM CDT
Few 3,000'
6sm
29.65"Hg
210° 15kts
Gusts 35kts
Light Turbulence: 9,000 - 6,000'
MVFR
Becoming 10:00 PM CDT - 12:00 AM CDT
Light Showers and Rain
Broken 4,000'
Broken 2,000'
Scattered 1,500'
5.59sm
29.70"Hg
VRB° 6kts
Moderate, Clear Air, Occasional: 9,000 - 9,000'
Moderate, Clear Air, Occasional: 9,000 - 18,000'
VFR
Becoming 12:00 AM CDT - 1:00 PM CDT
Light Rain
Overcast 6,000'
Few 4,500'
5.59sm
29.85"Hg
020° 15kts
Gusts 35kts
Moderate, Clear Air, Occasional: 6,000 - 9,000'
Moderate, Clear Air, Occasional: 9,000 - 18,000'
TAF KEFD 151200Z 1512/1618 16007KT 9999 BKN020 QNH2973INS
   BECMG 1519/1520 21015G35KT 9999 FEW030 510006 QNH2966INS
   BECMG 1603/1604 VRB06KT 9000 -SHRA SCT015 BKN020 BKN040 520009 520909 QNH2970INS
   BECMG 1605/1606 02015G35KT 9000 -RA FEW045 OVC060 520009 520909 QNH2985INS TX27/1520Z TN11/1611Z
54T
EffectiveExpiresCategoryNOTAM
Domestic
2/10/26
2145Z
5/12/26
0500Z
!CXO 02/178 54T OBST TOWER LGT (ASR 1050738) 295031.80N0945159.70W (4.9NM N 54T) 294.0FT (255.9FT AGL) U/S 2602102145-2605120500
12/21/25
1409Z
3/21/26
0500Z
!CXO 12/420 54T OBST TOWER LGT (ASR 1233654) 294730.40N0945147.10W (1.9NM NNW 54T) 143.0FT (110.9FT AGL) U/S 2512211409-2603210500
FDC
10/31/25
2050Z
!FDC 5/9835 54T SID RWJ AIRPARK, BAYTOWN, TX.
HOODO SEVEN DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
LEV VORTAC OUT OF SERVICE. 2510312050-2612312050EST
10/31/25
2050Z
!FDC 5/9833 54T SID RWJ AIRPARK, BAYTOWN, TX.
HOODO SEVEN DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
LEV VORTAC OUT OF SERVICE. 2510312050-2612312050EST
3/12/25
1402Z
!FDC 5/2005 54T SID RWJ AIRPARK, BAYTOWN, TX.
KARRR SEVEN DEPARTURE (RNAV)...
CORPUS CHRISTI TRANSITION YOMOM TO CRP VORTAC MOCA 1600.
TRUAX TRANSITION,WWREN TRANSITION KAVCY TO RIIGG MOCA 2100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2503121402-2703121402EST
No
MON-FRI 0800-1800
RWJ PROPERTY OWNERS ASSOCIATION
15814 SUNDOWNER
MOUNT BELVIEU, TX 77580
Phone: 281-573-9609
DENNIS J. COX
15506 SUNDOWNER
BEACH CITY, TX 77523
Phone: 512-825-9771
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
CXO
Sunset to Sunrise
--
N/A
Yes
No
No
Hanger, Tie-Down
No
None
None
None
None
Aircraft Sales

Runway 08/26

5035 ft. x 40 ft.
ASPH
Fair
NONE
LOW

6,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 89°269°
Traffic Pattern Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 29° 45' 42"N 29° 45' 42"N
Longitude 94° 51' 16"W 94° 50' 19"W
Elevation 30' 27'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

3532 ft. x 100 ft.
TURF
Fair
NONE


4,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 148°328°
Traffic Pattern
Markings
Markings Condition
Latitude 29° 45' 59"N 29° 45' 29"N
Longitude 94° 51' 11"W 94° 50' 49"W
Elevation 33' 28'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2TWY TOO NARROW FOR SOME ACFT.
A110-4RWY 08 28 FT PLINE (MKD & LGTD), 468 FT FM RWY END.
A110-5FOR CD CTC HOUSTON APCH AT 281-443-5844 TO CNL IFR CALL 281-443-5888.
A32-08/26EAST 1100 FT 60 FT WIDE.
A40-08/26LIRL LCTD 15 FT FM RWY EDGE WEST, 4000 FT LGTD.
A42-08_MARKRWY MKGS NSTD, NRS 35 FT TALL, THR BAR 15 INS WIDE.
A42-26_MARKDSPLCD THR MKGS NSTD, NRS 35 FT TALL, THR BAR 15 INS WIDE.
A52-14APCH SLOPE 21:1 TO DSPLCD THR OVR 31 FT TREES, 675 FT DSTC, 35 FT B.
A57-14APCH RATIO 15:1 TO DSPLCD THR OVER 36 FT BLDG, 565 FT DSTC, 45 FT L.
A57-26APCH SLOPE 0:1 TO DSPLCD THR; +4 FT FENCE 92 FT R CNTRLN & +15 FT RD, 60 FT R CNTRLN AT DSPLCD THR; 18:1 OVR 85 FT WATER TWR 1600 FT 185 FT L.
A58-26+10 FT RD 0-200 FT FM THR 60 FT R CNTRLN; +4 FT FENCE 0-200 FT FM THR 92 FT R CNTRLN.
A70-100LLFOR FUEL SERVICES CALL 281-383-2320.
RWJ AIRPARK (IATA: 54T) is a public airport located in BAYTOWN, TX, US.
