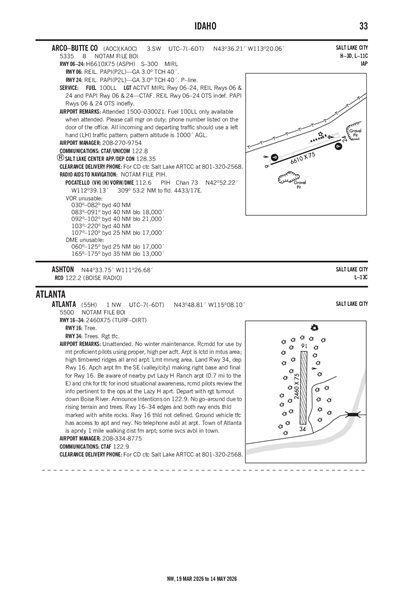

ATLANTA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

55H
Local 55H
ATLANTA
PublicPUB

1 miles NW of ATLANTA, ID, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 48' 49"N 115° 08' 06"W
Elevation
5500' MSL
Pattern Alt
6500' MSL
Mag Variation
13°E
Declination
17°E
Fuel
None Listed
FSS
BOISE (BOI)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
5/14/26-6/11/26
KSNT (23nm) VFR
9:51 PM MDT
No Clouds
N/A
51°F
33°F
30.10"Hg
180° 4kts
AO1 SLP125 T01060006
METAR KSNT 040351Z AUTO 18004KT 11/01 A3010 RMK AO1 SLP125 T01060006
+ Add Your Business

55H FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSUN (41nm)
Wed, 6/3 5:20 PM MDT
Wed, 6/3 6:00 PM MDT - Fri, 6/5 12:00 AM MDT
VFR
6:00 PM MDT - 9:00 PM MDT
Showers in vicinity
Scattered 15,000'
Scattered 10,000'
6sm
200° 10kts
VFR
9:00 PM MDT - 11:00 AM MDT
Broken 12,000'
Scattered 9,000'
6sm
320° 10kts
VFR
11:00 AM MDT - 9:00 PM MDT
Few 9,000'
6sm
250° 11kts
VFR
9:00 PM MDT - 12:00 AM MDT
Sky Clear
6sm
300° 8kts
TAF KSUN 032320Z 0400/0506 20010KT P6SM VCSH SCT100 SCT150
   FM040300 32010KT P6SM SCT090 BKN120
   FM041700 25011KT P6SM FEW090
   FM050300 30008KT P6SM SKC
55H
No NOTAM Available
No
UNATNDD
IDAHO STATE-ITD/DIV OF AERONAUTICS
BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
IDAHO STATE-ITD/DIV OF AERONAUTICS
BOX 7129
BOISE, ID 83707
Phone: 208-334-8775
BOISE FSS (BOI)
Toll Free: 1-800-WX-BRIEF
BOI
--
--
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 16/34

2460 ft. x 75 ft.
TURF DIRT
Good
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading Not ListedNot Listed
Traffic Pattern Right
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RCMDED FOR USE BY MT PROFICIENT PILOTS USING PROPER, HIGH PER ACFT. ARPT IS LCTD IN MTUS AREA; HIGH TIMBERED RIDGES ALL ARND ARPT. LTD MNVRG AREA. LAND RWY 34, DEP RWY 16. APCH ARPT FM THE SE (VALLEY/CITY) MAKING RIGHT BASE AND FINAL FOR RWY 16. BE AWARE OF NEARBY PVT LAZY H RANCH ARPT (.7 MI TO THE EAST) AND CK FOR TFC FOR INCRD SITUATIONAL AWARENESS. RCMD PILOTS REVIEW THE INFO PERTINENT TO THE OPRNS AT THE LAZY H ARPT.
A110-2DEPART WITH A RIGHT TURNOUT DOWN BOISE RIVER. ANNOUNCE INTENTIONS ON 122.9. NO GO-AROUND DUE TO RISING TERRAIN AND TREES.
A110-3NO WINTER MAINT.
A110-4GND VEHICLE TFC HAS ACES TO ARPT & RWY.
A110-5NO FONE AVBL AT ARPT. TOWN OF ATLANTA IS APRXLY 1 MI WALKING DIST FM ARPT; SOME SVCS AVBL IN TOWN.
A110-6FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A42-16_MARKRWY 16/34 EDGES & BOTH RWY ENDS THR MKD WITH W ROCKS.
A52-1675 FT - 100 FT TREES AT 130 FT ON CNTRLN; +500 FT TIMBERED MT 1000 FT ON CNTRLN; 50 FT - 75 FT TREES AT 0 FT 100 FT LEFT.
A52-34+60 FT TREE 250 FT 125 FT LEFT; +1000 FT TIMBERED RIDGE AT 5000 FT ON CNTRLN.
A57-16RISING TRRN WITH 80 FT - 100 FT TALL TREES STARTING AT 50 FT PAST THE END OF RWY.
E111PROVIDED ARRIVAL/DEPARTURE PROCEDURES, INCLUDING RECOMMENDED COMMUNICATIONS PROCEDURES, AS SPECIFIED IN THE GREENE/COOKE AGREEMENT BE PUBLISHED IN THE IDAHO AIRPORT DIRECTORY; A WARNING NOTE ABOUT THE CLOSE PROXIMITY OF THE TWO AIRPORTS SHOULD BE PUBLISHED.
ATLANTA (IATA: 55H) is a public airport located in ATLANTA, ID, US.
