iFlightPlanner



...

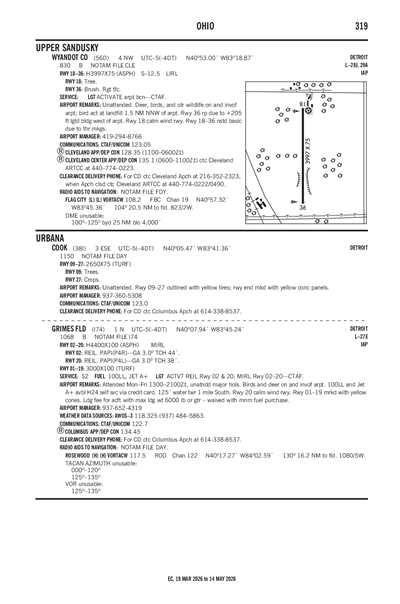

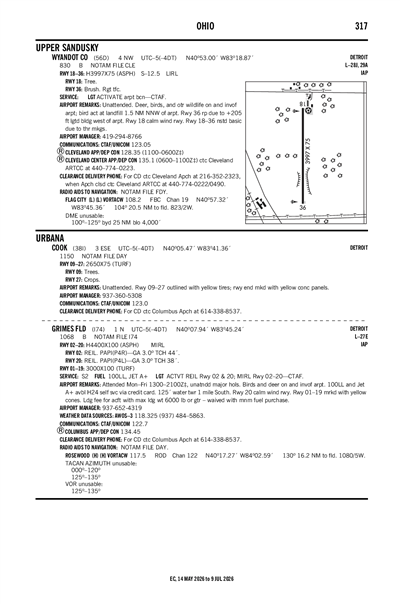

WYANDOT COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

56D
Local 56D
WYANDOT COUNTY
PublicPUB

4 miles NW of UPPER SANDUSKY, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 53' 00"N 83° 18' 52"W
Elevation
830' MSL
Pattern Alt
1830' MSL
Mag Variation
7°W
Declination
5°W
Fuel
None Listed
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
6/11/26-7/9/26
KFDY (18nm) VFR
4:53 PM EDT
Light Rain
Scattered 7,000'
Scattered 6,000'
Few 3,900'
10sm
72°F
61°F
29.91"Hg
200° 10kts
AO2 PK WND 25036/2035 WSHFT 2028 LTG DSNT S AND SW RAB01E12B36 SLP122 P0001 60001 T02220161 56003
METAR KFDY 252053Z AUTO 20010KT 10SM -RA FEW039 SCT060 SCT070 22/16 A2991 RMK AO2 PK WND 25036/2035 WSHFT 2028 LTG DSNT S AND SW RAB01E12B36 SLP122 P0001 60001 T02220161 56003
+ Add Your Business

56D FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.05
ACTVT ABN - CTAF.; ACTVT LIRL RWY 18/36 - CTAF.
UNICOM 123.05

Approach

CLEVELAND APPROACH 128.35

Departure

CLEVELAND DEPARTURE 128.35

Center

CLEVELAND CENTER 135.1
LOW, APCH/DEP SVC PRVDD BY CLEVELAND APCH (CLE) 0600-0100. APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 135.1/291.725 (FINDLAY RCAG) 0100-0600.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KFDY (18nm)
Thu, 6/25 3:04 PM EDT
Thu, 6/25 3:00 PM EDT - Fri, 6/26 2:00 PM EDT
VFR
3:00 PM EDT - 4:00 PM EDT
Scattered 4,500'
6sm
220° 10kts
VFR
4:00 PM EDT - 7:00 PM EDT
Thunderstorm in vicinity
Broken 3,500'
6sm
250° 8kts
VFR
7:00 PM EDT - 1:00 AM EDT
Scattered 3,500'
6sm
250° 5kts
VFR
1:00 AM EDT - 2:00 PM EDT
Broken 25,000'
6sm
VRB° 3kts
TAF KFDY 251904Z 2519/2618 22010KT P6SM SCT045
   FM252000 25008KT P6SM VCTS BKN035CB
   FM252300 25005KT P6SM SCT035
   FM260500 VRB03KT P6SM BKN250
56D
EffectiveExpiresCategoryNOTAM
Domestic
6/19/26
1506Z
8/3/26
1505Z
!CLE 06/750 56D OBST TOWER LGT (ASR 1014019) 404930.00N0831506.00W (4.5NM SE 56D) 1185.0FT (333.0FT AGL) U/S 2606191506-2608031505
6/16/26
0134Z
7/16/26
2300Z
!CLE 06/632 56D OBST TOWER LGT (ASR 1296657) 410118.80N0832348.50W (9.1NM NNW 56D) 1096.1FT (265.1FT AGL) U/S 2606160134-2607162300
5/28/26
1901Z
7/30/26
2359Z
!CLE 05/867 56D OBST TOWER LGT (ASR 1253122) 405453.40N0830732.00W (8.8NM ENE 56D) 1419.0FT (499.0FT AGL) U/S 2605281901-2607302359
FDC
5/27/26
1832Z
!FDC 6/3358 56D IAP WYANDOT COUNTY, UPPER SANDUSKY, OH.
VOR-A, AMDT 3E...
CHANGE ALTIMETER NOTE TO READ: USE FINDLAY ALTIMETER SETTING, WHEN NOT RECEIVED, USE MARION ALTIMETER SETTING AND INCREASE ALL MDA 40 FEET.
2605271832-2805281832EST
No
UNATNDD
COUNTY AIRPORT AUTHORITY
109 S SANDUSKY AVE
UPPER SANDUSKY, OH 43351
MITCHEL GRENWALT
10841 COUNTY HIGHWAY 42
UPPER SANDUSKY, OH 43351
Phone: 419-294-8766
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
ACTVT LIRL RWY 18/36 - CTAF.
ACTVT ABN - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 18/36

3997 ft. x 75 ft.
ASPH
Good
NONE
LOW

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Right
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 40° 53' 20"N 40° 52' 40"N
Longitude 83° 18' 52"W 83° 18' 52"W
Elevation 824' 828'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-2RWY 36 RP DUE TO +205 FT LGTD BLDG WEST OF ARPT.
A110-4DEER, BIRDS, & OTR WILDLIFE ON & INVOF ARPT; BIRD ACT AT LANDFILL 1.5 NM NNW OF ARPT.
A110-7FOR CD CTC CLEVELAND APCH AT 216-352-2323, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0222/0490.
A14MGRENWALT@SCHMIDTMACHINE.COM.
A16OR 419-294-3814.
A30A-18CALM WIND RWY.
A42-18_CONDFADED.
A42-18_MARKNSTD BASIC DUE TO THR MKGS.
A42-36_CONDFADED.
A42-36_MARKNSTD BASIC DUE TO THR MKGS.
A58-36OBST CLNC SLP 0:1 DUE TO +5-10 FT BRUSH, 0-200 FT DIST, 120 FT L; +1-7 FT BRUSH, 0-200 FT DIST, 92 FT R.
A75-TROPES NOT PRVDD.
A81-APTACTVT LIRL RWY 18/36 - CTAF.
A81-BCNACTVT ABN - CTAF.
WYANDOT COUNTY (IATA: 56D) is a public airport located in UPPER SANDUSKY, OH, US.
