57B
Local 57B
ISLESBORO
PublicPUB

1 miles W of ISLESBORO, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 18' 09"N 68° 54' 38"W
Elevation
88' MSL
Pattern Alt
1088' MSL
Mag Variation
15°W
Declination
18°W
Fuel
None Listed
FSS
BANGOR (BGR)
Sectional
HALIFAX
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KRKD (17nm) VFR
11:56 AM EDT
Clear
10sm
34°F
17°F
30.51"Hg
100° 7kts
AO2 SLP331 T00111083 FZRANO
METAR KRKD 151556Z AUTO 10007KT 10SM CLR 01/M08 A3051 RMK AO2 SLP331 T00111083 FZRANO
+ Add Your Business

57B FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Approach

BANGOR APPROACH 118.925

Departure

BANGOR DEPARTURE 118.925

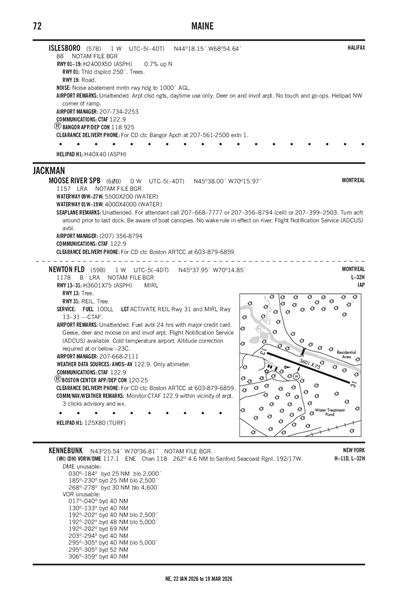

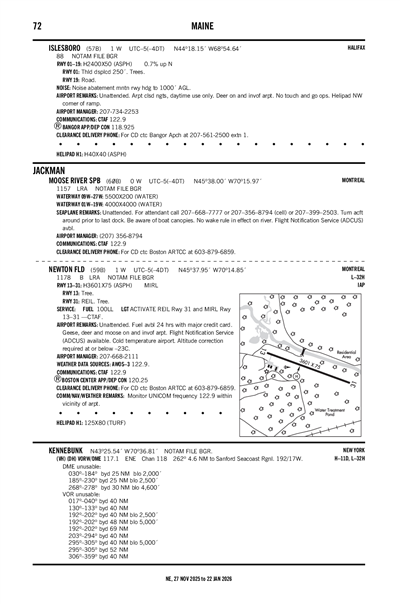

FAA A/FD Pages

Terminal Area Forecast

KRKD (17nm)
Sun, 3/15 8:04 AM EDT
Sun, 3/15 8:00 AM EDT - Mon, 3/16 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Sky Clear
6sm
280° 9kts
VFR
11:00 AM EDT - 8:00 PM EDT
Few 25,000'
6sm
340° 7kts
VFR
8:00 PM EDT - 1:00 AM EDT
Broken 9,000'
6sm
150° 5kts
VFR
1:00 AM EDT - 8:00 AM EDT
Scattered 25,000'
6sm
150° 10kts
Gusts 19kts
TAF KRKD 151204Z 1512/1612 28009KT P6SM SKC
   FM151500 34007KT P6SM FEW250
   FM160000 15005KT P6SM BKN090
   FM160500 15010G19KT P6SM SCT250
57B
No NOTAM Available
No
UNATNDD
TOWN OF ISLESBORO
PO BOX 76
ISLEBORO, ME 04848
Phone: 207-734-2253
JANET R. ANDERSON
PO BOX 76
ISLESBORO, ME 04848
Phone: 207-734-2253
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

2400 ft. x 50 ft.
ASPH
Excellent
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 348°168°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 44° 17' 57"N 44° 18' 20"N
Longitude 68° 54' 35"W 68° 54' 42"W
Elevation 71' 88'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

40 ft. x 40 ft.
ASPH
Excellent
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 44° 18' 19"N N/A
Longitude 68° 54' 43"W N/A
Elevation 88' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1ARPT CLSD NGTS, DAYTIME USE ONLY.
A110-2DEER ON & INVOF ARPT.
A110-5NO TGL OPS.
A110-6NOISE ABATEMENT - MNTN RWY HDG TO 1000 FT AGL.
A110-7HELIPAD: NW CORNER OF RAMP.
A110-9FOR CD CTC BANGOR APCH AT 207-561-2500 EXTN 1.
A14TOWN MGR OF ISLEBORO.
A57-01APCH RATIO 0:1 TO DTHR DUE TO 35 FT TREE, 0 FT FM DTHR, 120 FT L.
A58-0135-45 FT TREES, 0- 200 FT FM THR, 90-125 FT L OF CNTRLN AND 120-125 FT L AND R OF CNTRLN.
A58-1910 FT ROAD, 107 FT R OF CNTRLN; 45 FT TREES 100-200 FT FM THR, 120 FT R OF CNTRLN; 10-20 FT BRUSH 100-200 FT FM THR, 105 FT L OF CNTRLN.
E111VFR OPS ONLY.
ISLESBORO (IATA: 57B) is a public airport located in ISLESBORO, ME, US.
