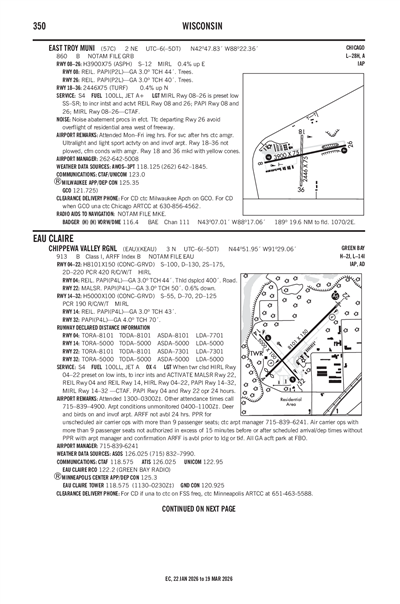

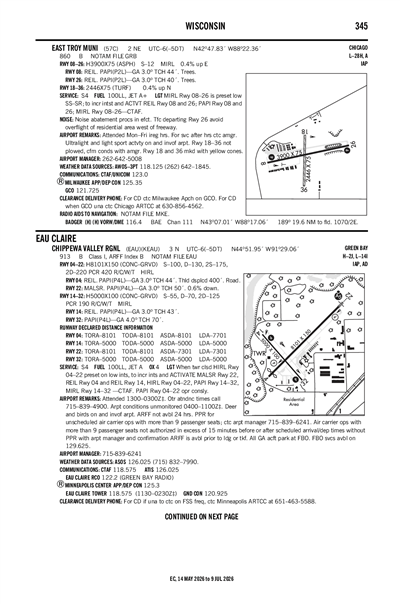

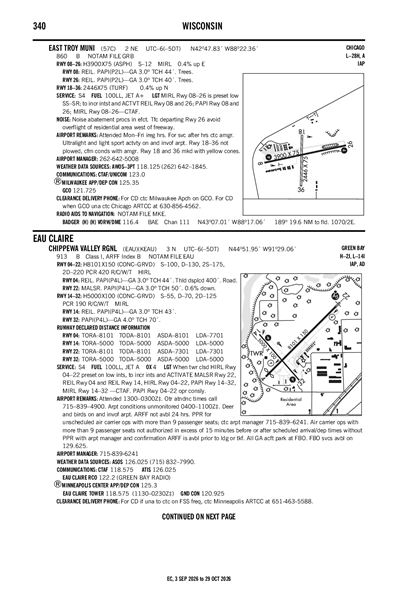

EAST TROY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

57C
Local 57C
EAST TROY MUNI
PublicPUB

2 miles NE of EAST TROY, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 47' 50"N 88° 22' 21"W
Elevation
860' MSL
Pattern Alt
1860' MSL
Mag Variation
4°W
Declination
2°W
Fuel
JET A (FSII), 100LL
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
10/29/26-11/26/26
K57C VFR
6:55 AM CST
Broken 7,000'
10sm
32°F
32°F
29.92"Hg
360° 10kts
Gusts 15kts
AO2
METAR K57C 121255Z AUTO 36010G15KT 330V030 10SM BKN070 A2992 RMK AO2
+ Add Your Business

57C FBOs

Promote Listing
Aviator Services
UNICOM: 123.0
Phone: (262) 642-5008
Other: (262) 215-2949
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 11/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.89 5.89
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.125
(262) 642-1845

Common

CTAF 123.0
MIRL RWY 08/26 PRESET LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL 08/26 - CTAF.
UNICOM 123.0

Arrival

GOPAC STAR 126.5

Approach

MILWAUKEE APPROACH 125.35

Departure

MILWAUKEE DEPARTURE 125.35

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725.

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KUES (16nm)
Thu, 11/12 5:34 AM CST
Thu, 11/12 6:00 AM CST - Fri, 11/13 6:00 AM CST
MVFR
6:00 AM CST - 8:00 AM CST
Overcast 7,000'
Broken 1,900'
6sm
350° 13kts
Gusts 22kts
MVFR
8:00 AM CST - 3:00 PM CST
Overcast 7,000'
Broken 2,500'
6sm
350° 15kts
Gusts 26kts
VFR
3:00 PM CST - 7:00 PM CST
Broken 3,500'
6sm
360° 14kts
Gusts 24kts
VFR
7:00 PM CST - 6:00 AM CST
Broken 4,000'
6sm
340° 9kts
TAF KUES 121134Z 1212/1312 35013G22KT P6SM BKN019 OVC070
   FM121400 35015G26KT P6SM BKN025 OVC070
   FM122100 36014G24KT P6SM BKN035
   FM130100 34009KT P6SM BKN040
57C
EffectiveExpiresCategoryNOTAM
Domestic
11/12/26
0503Z
2/12/27
2359Z
!GRB 11/145 57C OBST TOWER LGT (ASR 1042742) 425552.00N0882105.00W (8.1NM NE 57C) 1354.3FT (404.2FT AGL) U/S 2611120503-2702122359
11/10/26
1448Z
12/15/26
2359Z
!GRB 11/118 57C SVC AUTOMATED WX BCST SYSTEM T/DP NOT AVBL 2611101448-2612152359
10/30/26
2028Z
1/27/27
2359Z
!GRB 10/435 57C OBST TOWER LGT (ASR 1048004) 425241.50N0882412.00W (5NM N 57C) 1270FT (255FT AGL) U/S 2610302028-2701272359
10/2/26
1858Z
1/1/27
2359Z
Runway!GRB 10/035 57C RWY 26 RWY END ID LGT U/S 2610021858-2701012359
6/5/26
1209Z
Runway!GRB 06/075 57C RWY 08 RWY END ID LGT U/S 2606051209-2612072111EST
No
MON-FRI IREG
FOR SVC AFTER HRS CTC AMGR.
VILLAGE OF EAST TROY
2015 ENERGY DRIVE
EAST TROY, WI 53120
Phone: 262-642-6255
DOUG GAUGER
2015 ENERGY DR
EAST TROY, WI 53120
Phone: 262-642-5008
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
MIRL RWY 08/26 PRESET LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL 08/26 - CTAF.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Parachute Jump Activity

Runway 08/26

3900 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 79°259°
Traffic Pattern Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 47' 47"N 42° 47' 55"N
Longitude 88° 22' 46"W 88° 21' 55"W
Elevation 843' 860'
Threshold Crossing Height 44 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

2446 ft. x 75 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 183°3°
Traffic Pattern
Markings
Markings Condition
Latitude 42° 47' 60"N 42° 47' 36"N
Longitude 88° 22' 22"W 88° 22' 24"W
Elevation 839' 828'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ULTRALIGHT & LSA ACTVTY ON & INVOF ARPT.
A110-2NOISE ABATEMENT PROCS IN EFCT. TFC DEPARTING RWY 26 AVOID OVERFLIGHT OF RESIDENTIAL AREA WEST OF FREEWAY.
A110-3FOR CD CTC MILWAUKEE APCH ON GCO. FOR CD WHEN GCO UNA CTC CHICAGO ARTCC AT 630-856-4562.
A110-4GCO AVBL ON FREQ 121.725.
A17-H1FOR SVC AFTER HRS CTC AMGR.
A30-18/36NOT PLOWED, CFM CONDS WITH AMGR.
A31-08/26SLOPES UP APRXLY 20 FT FM WEST TO EAST.
A42-18_MARKMKD WITH YELLOW CONES.
A42-36_MARKMKD WITH YELLOW CONES.
A81-APTMIRL RWY 08/26 PRESET LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL 08/26 - CTAF.
E111ESTAB PRIOR TO 1959.
EAST TROY MUNI (IATA: 57C) is a public airport located in EAST TROY, WI, US.
