57D
Local 57D
RAY COMMUNITY
PublicPUB

2 miles SE of RAY, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 44' 12"N 82° 53' 20"W
Elevation
632' MSL
Pattern Alt
1632' MSL
Mag Variation
8°W
Declination
6°W
Fuel
100LL
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
6/11/26-7/9/26
KMTC (8nm) VFR
8:56 PM EDT
Few 25,000'
Few 5,500'
10sm
69°F
62°F
29.88"Hg
350° 3kts
AO2A SLP121 T02080164 $
METAR KMTC 260056Z 35003KT 10SM FEW055 FEW250 21/16 A2988 RMK AO2A SLP121 T02080164 $
+ Add Your Business

57D FBOs

Promote Listing
Ray Community Airport
UNICOM: 122.7
Phone: (586) 749-9558
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 6/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.49
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
ACTVT ABN - CTAF.; ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
UNICOM 122.7

Approach

SELFRIDGE APPROACH 119.6

Departure

SELFRIDGE DEPARTURE 119.6

Center

SELFRIDGE CENTER 126.525
HIGH, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 126.525/285.525 (ALGONAC RCAG) WHEN SELFRIDGE APCH CTL CLSD.

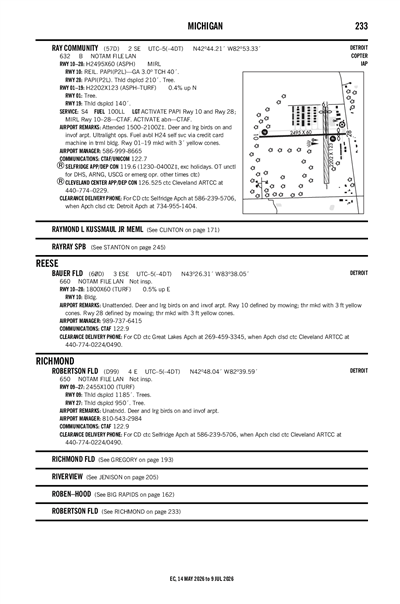

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMTC (8nm)
Thu, 6/25 5:35 PM EDT
Thu, 6/25 5:00 PM EDT - Fri, 6/26 9:00 PM EDT
VFR
5:00 PM EDT - 7:00 PM EDT
Light Showers and Rain
Broken 10,000'
Scattered 5,000'
5.59sm
29.76"Hg
270° 9kts
IFR
Temporary 5:00 PM EDT - 8:00 PM EDT
Light Thunderstorm and Rain
Overcast 5,000'
Broken 2,000'
2.98sm
240° 15kts
Gusts 25kts
VFR
Becoming 7:00 PM EDT - 7:00 AM EDT
Few 5,000'
Few 3,000'
6sm
29.79"Hg
VRB° 6kts
IFR
Becoming 7:00 AM EDT - 10:00 AM EDT
Mist
Overcast 600'
3.73sm
29.91"Hg
VRB° 6kts
MVFR
Becoming 10:00 AM EDT - 9:00 PM EDT
Overcast 5,000'
Broken 3,000'
Few 2,000'
6sm
29.97"Hg
VRB° 6kts
TAF AMD KMTC 252135Z 2521/2701 27009KT 9000 -SHRA SCT050 BKN100 QNH2975INS
   TEMPO 2521/2524 24015G25KT 4800 -TSRA BKN020CB OVC050
   BECMG 2523/2524 VRB06KT 9999 NSW FEW030 FEW050 QNH2980INS
   BECMG 2611/2612 VRB06KT 6000 BR OVC006 QNH2990INS
   BECMG 2614/2615 VRB06KT 9999 NSW FEW020 BKN030 OVC050 QNH2996INS TX28/2522Z TN14/2611Z LAST NO AMDS AFT 2603 NEXT 2611
57D
EffectiveExpiresCategoryNOTAM
Domestic
6/27/26
1000Z
6/27/26
1600Z
!LAN 06/416 57D AIRSPACE NUMEROUS ACFT WI AN AREA DEFINED AS 5NM RADIUS OF 57D SFC-1600FT AGL 2606271000-2606271600
6/24/26
1134Z
8/8/26
1133Z
!LAN 06/388 57D OBST TOWER LGT (ASR 1007943) 424240.00N0824637.00W (5.1NM ESE 57D) 910.1FT (310.4FT AGL) U/S 2606241134-2608081133
FDC
9/23/24
1519Z
!FDC 4/9277 57D IAP RAY COMMUNITY, RAY, MI.
RNAV (GPS)-A, ORIG-B...
CIRCLING RWY 1/19 NA.
2409231519-2609231519EST
No
1000-1600
MACOMB AIRWAYS, INC
59819 INDIAN TRL
RAY, MI 48096
Phone: 586-749-9558
JOSEPH KOZAR
59819 INDIAN TRL
RAY, MI 48096
Phone: 586-999-8665
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
ACTVT ABN - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
None

Runway 01/19

2202 ft. x 123 ft.
ASPH TURF
Fair
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 359°179°
Traffic Pattern Left Left
Markings BSC
Markings Condition FAIR GOOD
Latitude 42° 43' 60"N 42° 44' 22"N
Longitude 82° 53' 15"W 82° 53' 15"W
Elevation 624' 632'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

2495 ft. x 60 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 10 Runway 28
True Heading 88°268°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 44' 13"N 42° 44' 14"N
Longitude 82° 53' 41"W 82° 53' 07"W
Elevation 630' 628'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes No
A110-1DEER & LRG BIRDS ON & INVOF ARPT.
A110-2ULTRALIGHT OPS.
A110-3FOR CD CTC SELFRIDGE APCH AT 586-239-5706, WHEN APCH CLSD CTC DETROIT APCH AT 734-955-1404.
A16ADMIN BLDG 586-749-9558.
A42-01_MARK3 FT YELLOW CONES.
A42-19_MARK3 FT YELLOW CONES.
A57-10+8 FT SEASONAL CROPS, 226 FT DIST.
A57-19APCH RATIO 20:1 TO DTHR.
A57-28APCH RATIO 20:1 TO DTHR.
A58-28ROAD, 65 FT DIST.
A70-100LLAVBL H24 SELF SVC VIA CREDIT CARD MACHINE IN TRML BLDG.
A81-APTACTVT PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
A81-BCNACTVT ABN - CTAF.
E111ESTABD BFR 1959.
RAY COMMUNITY (IATA: 57D) is a public airport located in RAY, MI, US.
