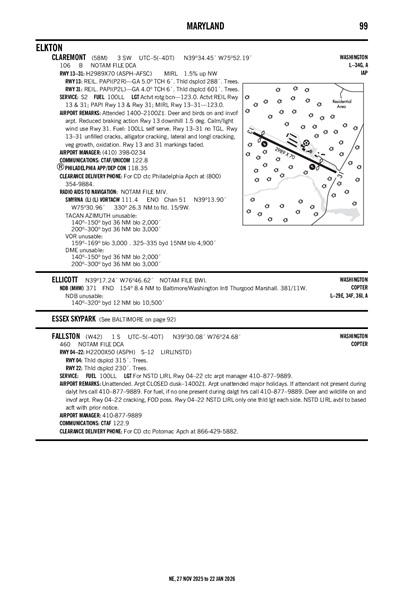

CLAREMONT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

58M
Local 58M
CLAREMONT
PublicPUB

3 miles SW of ELKTON, MD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 34' 27"N 75° 52' 11"W
Elevation
106' MSL
Pattern Alt
1106' MSL
Mag Variation
11°W
Declination
12°W
Fuel
100LL
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
NEW YORK (ZNY)
Data Effective
10/1/26-10/29/26
KILG (14nm) VFR
10:51 PM EDT
Clear
10sm
60°F
54°F
30.27"Hg
060° 7kts
AO2 SLP251 T01560122 51007 PNO $
METAR KILG 040251Z AUTO 06007KT 10SM CLR 16/12 A3027 RMK AO2 SLP251 T01560122 51007 PNO $
+ Add Your Business

58M FBOs

Promote Listing
Claremont Airport
UNICOM: 122.8
Phone: (410) 398-0234
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 9/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.29
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
UNICOM 122.8

Approach

PHILADELPHIA APPROACH 118.35

Departure

PHILADELPHIA DEPARTURE 118.35

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KILG (14nm)
Sat, 10/3 7:23 PM EDT
Sat, 10/3 8:00 PM EDT - Sun, 10/4 8:00 PM EDT
VFR
8:00 PM EDT - 3:00 AM EDT
Overcast 10,000'
Few 5,000'
6sm
080° 6kts
VFR
3:00 AM EDT - 8:00 AM EDT
Overcast 5,000'
6sm
060° 8kts
MVFR
8:00 AM EDT - 1:00 PM EDT
Light Showers and Rain
Overcast 2,000'
6sm
060° 6kts
MVFR
1:00 PM EDT - 6:00 PM EDT
Light Showers and Rain
Overcast 1,000'
6sm
060° 8kts
IFR
6:00 PM EDT - 8:00 PM EDT
Showers in vicinity
Overcast 700'
6sm
040° 6kts
TAF KILG 032323Z 0400/0424 08006KT P6SM FEW050 OVC100
   FM040700 06008KT P6SM OVC050
   FM041200 06006KT P6SM -SHRA OVC020
   FM041700 06008KT P6SM -SHRA OVC010
   FM042200 04006KT P6SM VCSH OVC007
58M
EffectiveExpiresCategoryNOTAM
Domestic
9/28/26
1337Z
10/31/26
2359Z
Runway!DCA 09/771 58M RWY 13 RWY END ID LGT U/S 2609281337-2610312359
9/28/26
1337Z
10/31/26
2359Z
Runway!DCA 09/770 58M RWY 31 RWY END ID LGT U/S 2609281337-2610312359
9/27/26
1526Z
10/12/26
1426Z
!DCA 09/749 58M OBST TOWER LGT (ASR 1275611) 393323.80N0755437.90W (2.2NM WSW 58M) 432.7FT (154.9FT AGL) U/S 2609271526-2610121426
6/1/26
1226Z
Runway!DCA 06/013 58M RWY 13 PAPI U/S 2606011226-2612012111EST
No
0900-1600
CJ FLIGHT CLA LLC
P.O. BOX 445
ELKTON, MD 21922
Phone: (410) 398-0234
MARY HALL
P.O. BOX 445
ELKTON, MD 21922
Phone: (410) 398-0234
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
ACTVT REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 13/31 - 123.0.
ACTVT ROTG BCN - 123.0.
N/A
Yes - Lighted
No
No
Tie-Down
No
Minor
Minor
None
None
Avionics

Runway 13/31

2989 ft. x 70 ft.
ASPH
Poor
AFSC
MED

--
--
--
--
  Runway 13 Runway 31
True Heading 116°296°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition FAIR FAIR
Latitude 39° 34' 33"N 39° 34' 21"N
Longitude 75° 52' 28"W 75° 51' 54"W
Elevation 106' 62'
Threshold Crossing Height 6 ft. AGL 6 ft. AGL
Visual Glide Path Angle 5° 4°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A11CJ FLIGHT CLA LLC DBA CLAREMONT AIRPORT.
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-4REDUCED BRAKING ACTION RWY 13 DOWNHILL 1.5 DEG.
A110-5CALM/LIGHT WIND USE RWY 31.
A110-6FOR CD CTC PHILADELPHIA APCH AT (800) 354-9884.
A30-13/31RWY 13/31 NO TGL.
A33-13/31_CONDUNFILLED CRACKS, ALLIGATOR CRACKING, LATERAL & LONGL CRACKING, VEG GROWTH, OXIDATION.
A42-13_CONDFADED.
A42-31_CONDFADED.
A57-13APCH SLOPE 20:1 TO DSPLCD THR AT CNTRLN.
A57-31APCH SLOPE 20:1 TO DSPLCD THR AT CNTRLN.
A58-31PLINE, MKD 10 FT, 40 FT FM THR. TREES 35 FT, 145 FT FM THR.
A70-100LLSELF SERVE.
A81-APTACTVT REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 13/31 - 123.0.
A81-BCNACTVT ROTG BCN - 123.0.
E111VFR PVT USE ONLY.
CLAREMONT (IATA: 58M) is a public airport located in ELKTON, MD, US.
