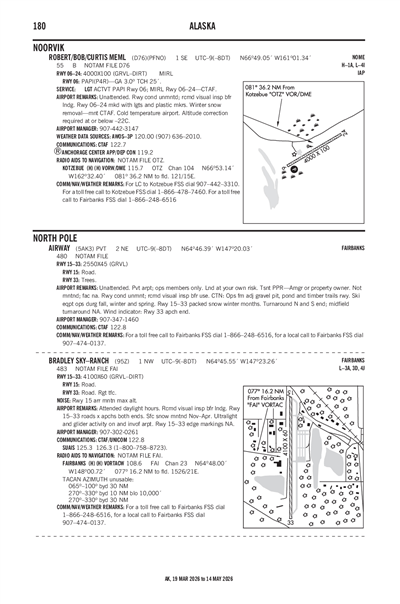

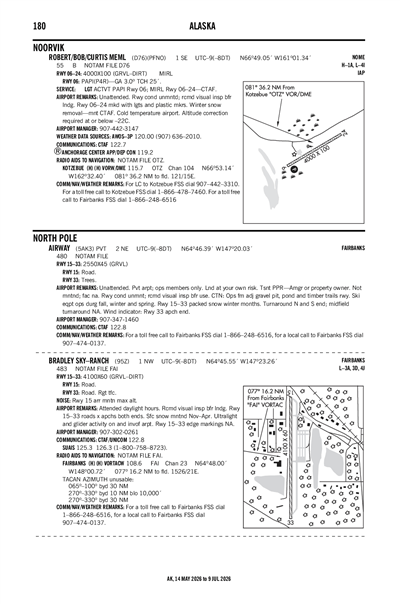

AIRWAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5AK3
Local 5AK3
AIRWAY
PrivatePVT

2 miles NE of NORTH POLE, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
64° 46' 23"N 147° 20' 02"W
Elevation
480' MSL
Pattern Alt
1480' MSL
Mag Variation
16°E
Declination
28°E
Fuel
None Listed
FSS
FAIRBANKS (FAI)
Sectional
FAIRBANKS
ARTCC
ANCHORAGE (ZAN)
Data Effective
2/19/26-3/19/26
PAFB (8nm) IFR
9:25 AM AKST
Light Snow and Mist
Overcast 2,800'
Broken 2,000'
1.88sm
1°F
-4°F
30.53"Hg
Calm
AO2A SLP362 RVRNO PWINO $
SPECI PAFB 221825Z 00000KT 1 7/8SM -SN BR BKN020 OVC028 M17/M20 A3053 RMK AO2A SLP362 RVRNO PWINO $
+ Add Your Business

5AK3 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8

FAA A/FD Pages

Terminal Area Forecast

PAFB (8nm)
Sun, 2/22 6:00 AM AKST
Sun, 2/22 6:00 AM AKST - Mon, 2/23 12:00 PM AKST
IFR
6:00 AM AKST - 1:00 PM AKST
Light Snow and Mist
Overcast 3,000'
Broken 2,000'
2.98sm
30.53"Hg
VRB° 6kts
IFR
Becoming 1:00 PM AKST - 10:00 PM AKST
Light Snow and Mist
Overcast 2,500'
Broken 1,500'
1.99sm
30.30"Hg
VRB° 6kts
LIFR
Becoming 10:00 PM AKST - 12:00 PM AKST
Light Snow and Mist
Overcast 1,000'
0.99sm
29.91"Hg
VRB° 6kts
Moderate, In Cloud, Occasional: 2,500 - 5,500'
LIFR
Temporary 11:00 PM AKST - 3:00 AM AKST
Snow and Mist
Obscured
0.5sm
Calm
TAF PAFB 221500Z 2215/2321 VRB06KT 4800 -SN BR BKN020 OVC030 620208 QNH3052INS
   BECMG 2222/2223 VRB06KT 3200 -SN BR BKN015 OVC025 620159 QNH3029INS
   BECMG 2307/2308 VRB06KT 1600 -SN BR OVC010 650109 540253 QNH2992INS
   TEMPO 2308/2312 0800 SN BR VV003 650039 TXM10/2301Z TNM19/2216Z
5AK3
No NOTAM Available
No
UNATNDD
AIRWAY INC
PO BOX 57366
NORTH POLE, AK 99705
Phone: (907) 347-1460
GENE SCARBORO
PO BOX 55506
NORTH POLE, AK 99705
Phone: 907-347-1460
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
N/A
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

2550 ft. x 45 ft.

GRAVEL
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1PVT ARPT; OPS MEMBERS ONLY. LND AT YOUR OWN RISK. TSNT PPR - AMGR OR PROPERTY OWNER.
A110-2NOT MNTND; FAC NA. RWY COND UNMNT; RCMD VISUAL INSP BFR USE.
A110-4SKI EQPT OPS DURG FALL, WINTER & SPRING.
A110-5CTN: OPS FM ADJ GRAVEL PIT, POND & TIMBER TRAILS RWY.
A30-15/33PACKED SNOW WINTER MONTHS. TURNAROUND N & S END; MIDFIELD TURNAROUND NA.
A75-TTSNT TIE DOWN AREA NA.
A83RWY 33 APCH END.
AIRWAY (IATA: 5AK3) is a private airport located in NORTH POLE, AK, US.
