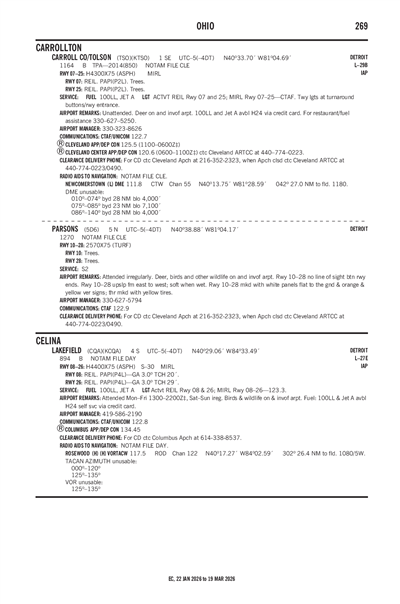

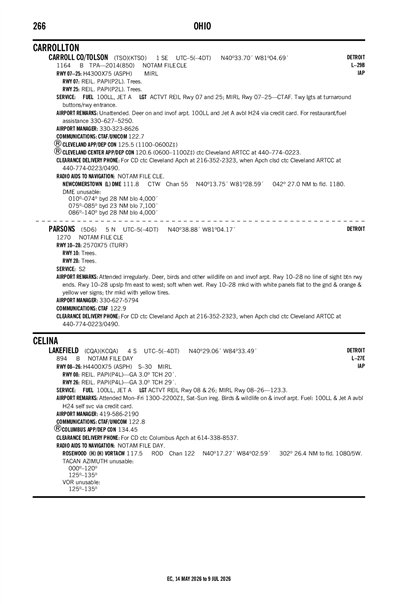

PARSONS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5D6
Local 5D6
PARSONS
PublicPUB

5 miles N of CARROLLTON, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 38' 53"N 81° 04' 10"W
Elevation
1270' MSL
Pattern Alt
2270' MSL
Mag Variation
9°W
Declination
7°W
Fuel
None Listed
FSS
CLEVELAND (CLE)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
5/14/26-6/11/26
KPHD (19nm) VFR
7:53 PM EDT
Clear
10sm
58°F
32°F
29.99"Hg
340° 9kts
AO2 SLP156 T01440000 10161 20139 53007
METAR KPHD 142353Z AUTO 34009KT 10SM CLR 14/00 A2999 RMK AO2 SLP156 T01440000 10161 20139 53007
+ Add Your Business

5D6 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KCAK (24nm)
Thu, 5/14 7:54 PM EDT
Thu, 5/14 8:00 PM EDT - Fri, 5/15 8:00 PM EDT
VFR
8:00 PM EDT - 11:00 PM EDT
Sky Clear
6sm
330° 12kts
Gusts 22kts
VFR
11:00 PM EDT - 3:00 AM EDT
Sky Clear
6sm
330° 5kts
VFR
3:00 AM EDT - 11:00 AM EDT
Few 25,000'
6sm
VRB° 3kts
VFR
11:00 AM EDT - 8:00 PM EDT
Broken 25,000'
6sm
260° 8kts
TAF KCAK 142354Z 1500/1524 33012G22KT P6SM SKC
   FM150300 33005KT P6SM SKC
   FM150700 VRB03KT P6SM FEW250
   FM151500 26008KT P6SM BKN250
5D6
EffectiveExpiresCategoryNOTAM
Domestic
5/14/26
1940Z
9/11/26
1940Z
!CLE 05/430 5D6 OBST TOWER LGT (ASR 1052862) 404200.00N0810934.00W (5.1NM NW 5D6) 1514.1FT (309.1FT AGL) U/S 2605141940-2609111940
No
IREG
DONNA M PARSONS
5043 KENSINGTON RD NE
CARROLLTON, OH 44615
Phone: 330-627-5794
LEE PARSONS
5043 KENSINGTON RD NE
CARROLLTON, OH 44615
Phone: 330-627-5794
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 10/28

2570 ft. x 75 ft.
TURF
Good
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 92°272°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 38' 53"N 40° 38' 53"N
Longitude 81° 04' 27"W 81° 03' 54"W
Elevation 1,269' 1,220'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER, BIRDS, & WILDLIFE ON & INVOF ARPT.
A110-3FOR CD CTC CLEVELAND APCH AT 216-352-2323, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0223/0490.
A30-10/28NO LINE OF SIGHT BTN RWY ENDS.
A33-10/28_CONDUPSLP FM EAST TO WEST; SOFT WHEN WET.
A42-10_MARKRWY MKD WITH WHITE PANELS FLAT TO THE GND & ORANGE & YELLOW VER SIGNS; THR MKD WITH YELLOW TIRES.
A42-28_MARKRWY MKD WITH WHITE PANELS FLAT TO THE GND & ORANGE & YELLOW VER SIGNS; THR MKD WITH YELLOW TIRES.
A52-28ALSO +25 FT BLDG, 126 FT DIST, 95 FT R, 5:1.
A75-TROPES NOT PRVDD.
E111VFR ONLY.
PARSONS (IATA: 5D6) is a public airport located in CARROLLTON, OH, US.
