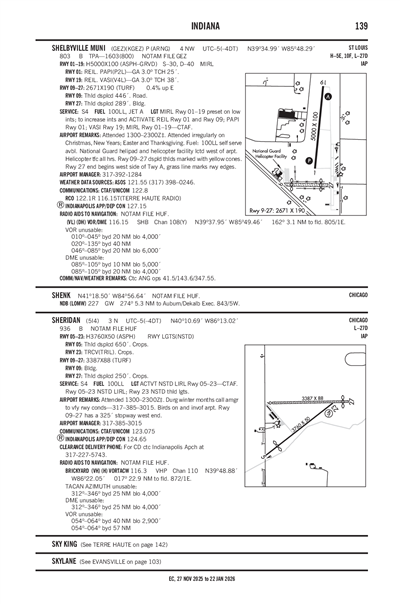

SHERIDAN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5I4
SHERIDAN
PublicPUB

3 miles N of SHERIDAN, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 10' 41"N 86° 13' 01"W
936' MSL
1936' MSL
00E
100LL
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
11/27/25-12/25/25
KTYQ (9nm) MVFR
9:55 AM EST
Broken 2,100'
10sm
25°F
14°F
30.08"Hg
190° 6kts
AO2 T10391100
METAR KTYQ 161455Z AUTO 19006KT 10SM BKN021 M04/M10 A3008 RMK AO2 T10391100
+ Add Your Business

5I4 FBOs

Promote Listing
Sheridan Airport
UNICOM: 123.075
Phone: (317) 385-3015
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/2
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.90
Full Serve
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIND (27nm)
Tue, 12/16 6:25 AM EST
Tue, 12/16 7:00 AM EST - Wed, 12/17 1:00 PM EST
VFR
7:00 AM EST - 9:00 AM EST
Few 25,000'
6sm
170° 7kts
MVFR
9:00 AM EST - 1:00 PM EST
Broken 25,000'
Broken 2,500'
6sm
200° 9kts
VFR
1:00 PM EST - 9:00 PM EST
Scattered 25,000'
Few 2,500'
6sm
190° 11kts
VFR
9:00 PM EST - 7:00 AM EST
Broken 25,000'
Broken 10,000'
Few 2,500'
6sm
220° 13kts
VFR
7:00 AM EST - 1:00 PM EST
Few 25,000'
6sm
240° 7kts
TAF KIND 161125Z 1612/1718 17007KT P6SM FEW250
   FM161400 20009KT P6SM BKN025 BKN250
   FM161800 19011KT P6SM FEW025 SCT250
   FM170200 22013KT P6SM FEW025 BKN100 BKN250 WS020/24040KT
   FM171200 24007KT P6SM FEW250
5I4
EffectiveExpiresCategoryNOTAM
Domestic
11/27/25
2211Z
12/26/25
1700Z
!HUF 11/621 5I4 OBST TOWER LGT (ASR 1040451) 400754.30N0861028.90W (3.4NM SE 5I4) 1225.1FT (283.1FT AGL) U/S 2511272211-2512261700
11/14/25
1024Z
12/29/25
1023Z
!HUF 11/356 5I4 OBST TOWER LGT (ASR 1036348) 400756.00N0861029.00W (3.4NM SE 5I4) 1177.8FT (238.8FT AGL) U/S 2511141024-2512291023
No
0800-1800
HAMILTON COUNTY AIRPORT AUTHORITY
11329 E. SR 32
ZIONSVILLE, IN 46077
Phone: 317-385-3015
SAM SACHS
27045 JERKWATER ROAD
SHERIDAN, IN 46069
Phone: 317-385-3015
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT NSTD LIRL RY 05/23 - CTAF.
PHONE REQ
N/A
Yes
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 05/23

3760 ft. x 50 ft.
ASPH
Fair
NONE
NSTD

--
--
--
--
  Runway 05 Runway 23
True Heading 52°232°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 40° 10' 24"N 40° 10' 47"N
Longitude 86° 13' 24"W 86° 12' 45"W
Elevation 930' 932'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- TRIL
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 09/27

3387 ft. x 88 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 88°268°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 40° 10' 47"N 40° 10' 48"N
Longitude 86° 13' 20"W 86° 12' 36"W
Elevation 936' 934'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-10BIRDS ON & INVOF ARPT
A110-7DURG WINTER MONTHS CALL AMGR TO VFY RWY CONDS - 317-385-3015.
A110-9FOR CD CTC INDIANAPOLIS APCH AT 317-227-5743.
SHERIDAN (IATA: 5I4) is a public airport located in SHERIDAN, IN.
