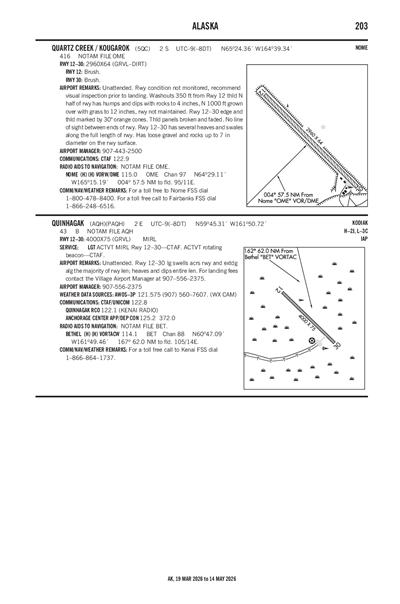

QUARTZ CREEK / KOUGAROK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5QC
Local 5QC
QUARTZ CREEK / KOUGAROK
PublicPUB

2 miles S of QUARTZ CREEK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
65° 24' 21"N 164° 39' 21"W
Elevation
416' MSL
Pattern Alt
1416' MSL
Mag Variation
9°E
Declination
18°E
Fuel
None Listed
FSS
NOME (OME)
Sectional
NOME
ARTCC
ANCHORAGE (ZAN)
Data Effective
5/14/26-6/11/26
PATE (43nm) VFR
3:56 PM AKDT
Broken 3,400'
N/A
50°F
37°F
29.76"Hg
330° 6kts
AO2 SLP082 T01000028 10106 20039 53006 PWINO $
METAR PATE 142356Z AUTO 33006KT BKN034 10/03 A2976 RMK AO2 SLP082 T01000028 10106 20039 53006 PWINO $
+ Add Your Business

5QC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAOM (57nm)
Thu, 5/14 3:20 PM AKDT
Thu, 5/14 4:00 PM AKDT - Fri, 5/15 4:00 PM AKDT
VFR
4:00 PM AKDT - 9:00 PM AKDT
Broken 5,000'
6sm
VRB° 3kts
VFR
9:00 PM AKDT - 11:00 PM AKDT
Mist
Broken 5,000'
6sm
Calm
IFR
11:00 PM AKDT - 8:00 AM AKDT
Mist
Broken 5,000'
1sm
Calm
VFR
8:00 AM AKDT - 4:00 PM AKDT
Broken 5,000'
6sm
VRB° 2kts
TAF PAOM 142320Z 1500/1524 VRB03KT P6SM BKN050
   FM150500 00000KT 6SM BR BKN050
   FM150700 00000KT 1SM BR BKN050
   FM151600 VRB02KT P6SM BKN050
5QC
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: (907) 451-2200
GEORGE
BOX 1048
NOME, AK 99762
Phone: 907-443-2500
NOME FSS (OME)
Toll Free: 1-800-478-8400
OME
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

2960 ft. x 64 ft.
GRVL DIRT
Good
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation 416' 336'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-2NO LINE OF SIGHT BETWEEN ENDS OF RY.
A110-3THLD PANELS BROKEN AND FADED.
A33-12/30_CONDWASHOUTS 350 FT FROM RY 12 THSD N HALF OF RY HAS HUMPS AND DIPS WITH ROCKS TO 4 INCHES, N 1000 FT GROWN OVER WITH GRASS TO 12 INCHES, RY NOT MAINTAINED.
A33-12/30_SURFRWY HAS SEVERAL HEAVES AND SWALES ALONG THE FULL LENGTH OF RWY. HAS LOOSE GRAVEL AND ROCKS UP TO 7 IN DIAMETER ON THE RWY SURFACE.
A42-12_MARKRY 12/30 EDGE AND THR MKD BY 30 IN ORANGE CONES.
E111ESTABD PRIOR TO 1959.
QUARTZ CREEK / KOUGAROK (IATA: 5QC) is a public airport located in QUARTZ CREEK, AK, US.
