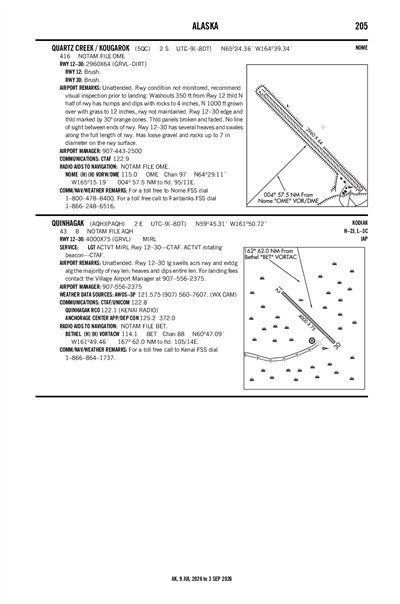

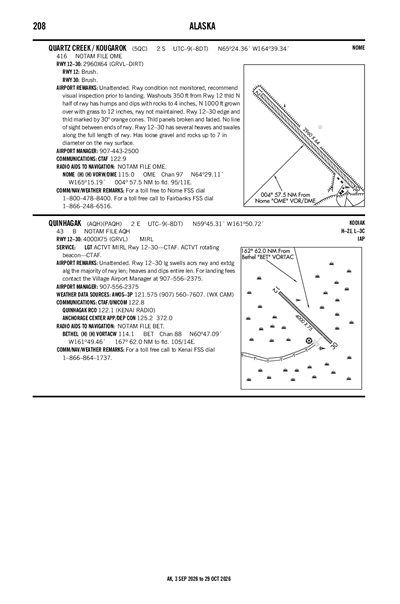

QUARTZ CREEK / KOUGAROK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5QC
Local 5QC
QUARTZ CREEK / KOUGAROK
PublicPUB

2 miles S of QUARTZ CREEK, AK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
65° 24' 21"N 164° 39' 21"W
Elevation
416' MSL
Pattern Alt
1416' MSL
Mag Variation
9°E
Declination
18°E
Fuel
None Listed
FSS
NOME (OME)
Sectional
NOME
ARTCC
ANCHORAGE (ZAN)
Data Effective
6/11/26-7/9/26
PATE (43nm) LIFR
4:56 AM AKDT
Mist
Overcast 300'
6sm
43°F
43°F
30.07"Hg
Calm
AO2 SLP185 T00610061
METAR PATE 171256Z AUTO 00000KT 6SM BR OVC003 06/06 A3007 RMK AO2 SLP185 T00610061
+ Add Your Business

5QC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

PAOM (57nm)
Wed, 6/17 3:32 AM AKDT
Wed, 6/17 4:00 AM AKDT - Thu, 6/18 4:00 AM AKDT
IFR
4:00 AM AKDT - 11:00 AM AKDT
Mist
Obscured
1sm
240° 5kts
LIFR
11:00 AM AKDT - 10:00 PM AKDT
Overcast 300'
6sm
200° 7kts
LIFR
10:00 PM AKDT - 4:00 AM AKDT
Mist
Overcast 300'
1sm
200° 7kts
TAF PAOM 171132Z 1712/1812 24005KT 1SM BR VV002
   FM171900 20007KT P6SM OVC003
   FM180600 20007KT 1SM BR OVC003 AMD NOT SKED
5QC
No NOTAM Available
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: (907) 451-2200
GEORGE
BOX 1048
NOME, AK 99762
Phone: 907-443-2500
NOME FSS (OME)
Toll Free: 1-800-478-8400
OME
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 12/30

2960 ft. x 64 ft.
GRVL DIRT
Good
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation 416' 336'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY CONDITION NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-2NO LINE OF SIGHT BETWEEN ENDS OF RY.
A110-3THLD PANELS BROKEN AND FADED.
A33-12/30_CONDWASHOUTS 350 FT FROM RY 12 THSD N HALF OF RY HAS HUMPS AND DIPS WITH ROCKS TO 4 INCHES, N 1000 FT GROWN OVER WITH GRASS TO 12 INCHES, RY NOT MAINTAINED.
A33-12/30_SURFRWY HAS SEVERAL HEAVES AND SWALES ALONG THE FULL LENGTH OF RWY. HAS LOOSE GRAVEL AND ROCKS UP TO 7 IN DIAMETER ON THE RWY SURFACE.
A42-12_MARKRY 12/30 EDGE AND THR MKD BY 30 IN ORANGE CONES.
E111ESTABD PRIOR TO 1959.
QUARTZ CREEK / KOUGAROK (IATA: 5QC) is a public airport located in QUARTZ CREEK, AK, US.
