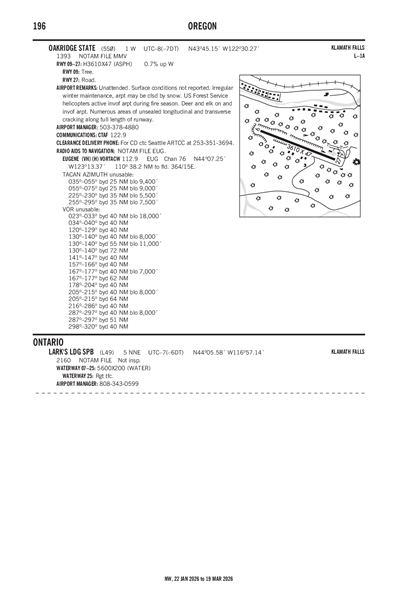

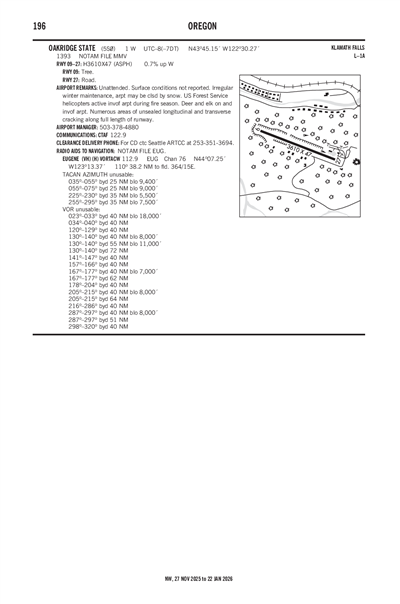

OAKRIDGE STATE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5S0
Local 5S0
OAKRIDGE STATE
PublicPUB

1 miles W of OAKRIDGE, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 45' 09"N 122° 30' 16"W
Elevation
1393' MSL
Pattern Alt
2393' MSL
Mag Variation
14°E
Declination
19°E
Fuel
None Listed
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
6/11/26-7/9/26
K77S (24nm) VFR
3:35 PM PDT
Broken 11,000'
10sm
75°F
37°F
29.86"Hg
VRB° 6kts
A01
METAR K77S 252235Z AUTO VRB06KT 10SM BKN110 24/03 A2986 RMK A01
+ Add Your Business

5S0 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KEUG (38nm)
Thu, 6/25 10:36 AM PDT
Thu, 6/25 11:00 AM PDT - Fri, 6/26 11:00 AM PDT
VFR
11:00 AM PDT - 1:00 PM PDT
Overcast 15,000'
6sm
190° 7kts
VFR
1:00 PM PDT - 7:00 PM PDT
Overcast 10,000'
6sm
220° 7kts
VFR
7:00 PM PDT - 9:00 PM PDT
Overcast 8,000'
Broken 4,500'
6sm
230° 8kts
VFR
9:00 PM PDT - 6:00 AM PDT
Light Rain
Overcast 3,500'
6sm
180° 9kts
MVFR
6:00 AM PDT - 11:00 AM PDT
Light Showers and Rain
Overcast 2,500'
6sm
200° 7kts
TAF KEUG 251736Z 2518/2618 19007KT P6SM OVC150
   FM252000 22007KT P6SM OVC100
   FM260200 23008KT P6SM BKN045 OVC080
   FM260400 18009KT P6SM -RA OVC035
   FM261300 20007KT P6SM -SHRA OVC025
5S0
EffectiveExpiresCategoryNOTAM
Domestic
6/1/26
1300Z
7/31/26
2359Z
!MMV 05/184 5S0 AD AP CLSD 2606011300-2607312359
No
UNATNDD
OREGON DEPARTMENT OF AVIATION
3040 25TH ST, SE
SALEM, OR 97310
Phone: 503-378-4880
STATE AIRPORTS MGR.
3040 25TH ST, SE
SALEM, OR 97310
Phone: 503-378-4880
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
--
--
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

3610 ft. x 47 ft.
ASPH
Poor
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 103°283°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 43° 45' 13"N 43° 45' 05"N
Longitude 122° 30' 40"W 122° 29' 52"W
Elevation 1,393' 1,367'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1USFS HELICOPTERS ACTIVE INVOF ARPT DURING FIRE SEASON.
A110-2DEER AND ELK ON AND INVOF ARPT.
A110-3IRREGULAR WINTER MAINTENANCE; ARPT MAY BE CLOSED BY SNOW.
A110-4SURFACE CONDITIONS NOT REPORTED.
A110-5FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A33-09/27_CONDNUMEROUS AREAS OF UNSEALED LONGITUDINAL AND TRANSVERSE CRACKING ALONG FULL LENGTH OF RUNWAY.
A57-09BEYOND ROAD SLOPE IS 8:1 BASED ON 130' TREE AT 1275' FROM RUNWAY END AND 100' RIGHT OF CENTERLINE.
A58-09RWY 09 +35 FT TREES; 70FT FM RY END 72 FT RIGHT.
A58-27TERRAIN RISES SMOOTHLY AT 14:1 FM RY END TO +14 FT AT 200 FT FM RY & CONTINUES TO RISE TO +65 FT AT 920 FT FM RY END ON CNTRLN.
A84SEGMENTED CIRCLE MKD WITH ORANGE AND WHITE TIRES.
OAKRIDGE STATE (IATA: 5S0) is a public airport located in OAKRIDGE, OR, US.
