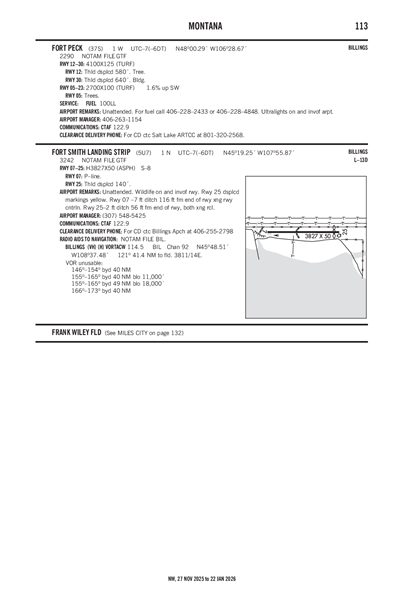

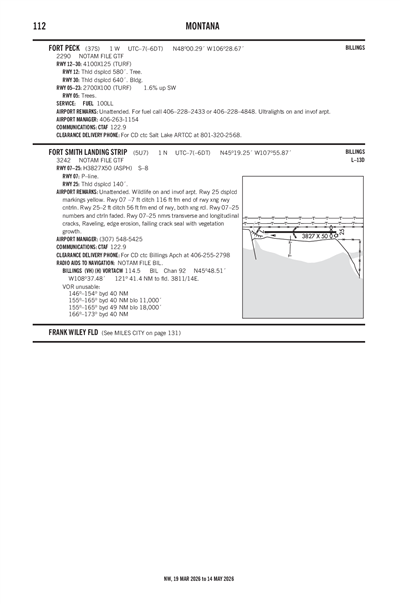

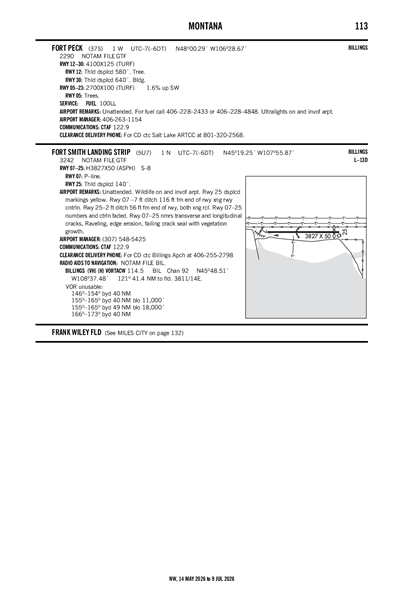

FORT SMITH LANDING STRIP - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5U7
Local 5U7
FORT SMITH LANDING STRIP
PublicPUB

1 miles N of FORT SMITH, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 19' 15"N 107° 55' 52"W
Elevation
3242' MSL
Pattern Alt
4242' MSL
Mag Variation
10°E
Declination
14°E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
BILLINGS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
6/11/26-7/9/26
K00U (28nm) VFR
3:35 PM MDT
Few 10,000'
10sm
70°F
57°F
29.88"Hg
150° 12kts
A01
METAR K00U 252135Z AUTO 15012KT 10SM FEW100 21/14 A2988 RMK A01
+ Add Your Business

5U7 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KBIL (39nm)
Thu, 6/25 11:24 AM MDT
Thu, 6/25 12:00 PM MDT - Fri, 6/26 12:00 PM MDT
VFR
12:00 PM MDT - 9:00 PM MDT
Showers in vicinity
Broken 11,000'
Scattered 5,000'
6sm
100° 9kts
MVFR
1:00 PM MDT - 7:00 PM MDT
Light Thunderstorm and Rain
Broken 5,000'
5sm
VRB° 15kts
Gusts 30kts
VFR
9:00 PM MDT - 6:00 AM MDT
Broken 14,000'
Scattered 7,000'
6sm
VRB° 6kts
VFR
6:00 AM MDT - 12:00 PM MDT
Broken 15,000'
Few 8,000'
6sm
070° 6kts
TAF KBIL 251724Z 2518/2618 10009KT P6SM VCSH SCT050 BKN110
   PROB30 2519/2601 VRB15G30KT 5SM -TSRA BKN050CB
   FM260300 VRB06KT P6SM SCT070 BKN140
   FM261200 07006KT P6SM FEW080 BKN150
5U7
EffectiveExpiresCategoryNOTAM
Domestic
6/18/26
2014Z
8/18/26
2359Z
!GTF 06/133 5U7 OBST TOWER LGT (ASR 1229832) 450741N1072247W (26.8NM ESE 5U7) 4343FT (349FT AGL) U/S 2606182014-2608182359
No
UNATNDD
NATIONAL PARK SERVICE
BIG HORN CANYON PO PO BOX 7458
HARDIN, MT 59035
Phone: 406-666-2412
SUPERINTENDENT
BIGHORN CANYON NRA PO BOX 7458
FORT SMITH, MT 59035
Phone: (307) 548-5425
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
--
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Charter Service

Runway 07/25

3827 ft. x 50 ft.
ASPH
Poor
NONE


8,000lbs
--
--
--
  Runway 07 Runway 25
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings BSC NSTD
Markings Condition POOR POOR
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE ON & INVOF ARPT.
A110-2FOR CD CTC BILLINGS APCH AT 406-255-2798
A110-3RWY 07 -7 FT DITCH 116 FT FM END OF RWY XNG RWY CNTRLN.
A110-4RWY 25-2 FT DITCH 56 FT FM END OF RWY, BOTH XNG RCL.
A14KEVIN TILLMAN CHIEF RANGER - STEVE GRISHAM FACILITIES 307-548-5425 STEVE_GRISHAM@NPS.GOV
A33-07/25_CONDNMRS TRANSVERSE AND LONGITUDINAL CRACKS. RAVELING, EDGE EROSION, FAILING CRACK SEAL WITH VEGETATION GROWTH.
A42-07_CONDRY 07 NUMBERS AND CNTRLN FADED.
A42-25_CONDRY 25 NUMBERS AND CNTRLN FADED.
A42-25_MARKRY 25 DSPLCD MARKINGS YELLOW.
A52-07BE ALERT: MULTIPLE POWERLINES OF VARYING ELEVATIONS AND DISTANCES INVOF ARPT.
A57-25RWY 25 APCH SLP 9:1 TO DTHR.
A58-25RWY 25 +4 FT FENCE 20 FT FM END OF RWY, PERPENDICULAR +4 FT FENCE PARL TO RCL & 75 FT R ENDING AT 20 FT FM END OF RWY. RWY 25 +17 FT TREE 10 FT FM END OF RWY 60 FT L.
FORT SMITH LANDING STRIP (IATA: 5U7) is a public airport located in FORT SMITH, MT, US.
