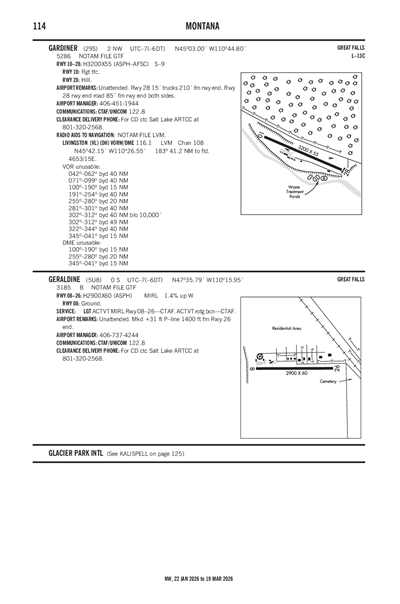

GERALDINE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

5U8
Local 5U8
GERALDINE
PublicPUB

0 miles S of GERALDINE, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 35' 47"N 110° 15' 57"W
Elevation
3185' MSL
Pattern Alt
4185' MSL
Mag Variation
11°E
Declination
16°E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
4/16/26-5/14/26
K1BM (19nm) IFR
12:49 PM MDT
Light Snow and Mist
Overcast 2,800'
Broken 1,900'
Scattered 1,400'
Few 700'
1.75sm
28°F
25°F
29.88"Hg
270° 21kts
Gusts 25kts
AO2 VIS 1V1 3/4 CIG 014V019 SLP153 $
SPECI K1BM 241849Z AUTO 27021G25KT 1 3/4SM -SN BR FEW007 SCT014 BKN019 OVC028 M02/M04 A2988 RMK AO2 VIS 1V1 3/4 CIG 014V019 SLP153 $
+ Add Your Business

5U8 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT ROTG BCN - CTAF.; ACTVT MIRL RWY 08/26 - CTAF.
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KGTF (46nm)
Fri, 4/24 11:50 AM MDT
Fri, 4/24 12:00 PM MDT - Sat, 4/25 12:00 PM MDT
VFR
12:00 PM MDT - 3:00 PM MDT
Broken 5,000'
Scattered 2,500'
6sm
320° 12kts
Gusts 18kts
IFR
Temporary 12:00 PM MDT - 3:00 PM MDT
Light Showers and Snow
Broken 2,500'
Scattered 1,500'
1sm
Calm
MVFR
Temporary 3:00 PM MDT - 6:00 PM MDT
Light Showers and Snow
Broken 2,500'
Scattered 1,500'
3sm
Calm
VFR
3:00 PM MDT - 8:00 PM MDT
Light Showers and Snow
Broken 5,000'
Scattered 2,500'
6sm
340° 13kts
Gusts 25kts
VFR
8:00 PM MDT - 3:00 AM MDT
Broken 3,500'
Scattered 1,500'
6sm
VRB° 6kts
MVFR
3:00 AM MDT - 11:00 AM MDT
Broken 2,500'
Scattered 1,500'
6sm
VRB° 6kts
VFR
11:00 AM MDT - 12:00 PM MDT
Broken 5,000'
Scattered 2,500'
6sm
VRB° 6kts
TAF KGTF 241750Z 2418/2518 32012G18KT P6SM SCT025 BKN050
   TEMPO 2418/2421 1SM -SHSN SCT015 BKN025
   FM242100 34013G25KT 6SM -SHSN SCT025 BKN050
   TEMPO 2421/2424 3SM -SHSN SCT015 BKN025
   FM250200 VRB06KT P6SM SCT015 BKN035
   FM250900 VRB06KT P6SM SCT015 BKN025
   FM251700 VRB06KT P6SM SCT025 BKN050
5U8
No NOTAM Available
No
UNATNDD
GERALDINE AND CHOTEAU CO
COUNTY COURTHOUSE
FT BENTON, MT 59442
Phone: 406-622-5151
LESTER L HANKINS
427 BROADWAY AVE. SQUARE BUTTE
GERALDINE, MT 59446
Phone: 406-737-4244
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
ACTVT MIRL RWY 08/26 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 08/26

2900 ft. x 60 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 35' 47"N 47° 35' 47"N
Longitude 110° 16' 18"W 110° 15' 36"W
Elevation 3,185' 3,146'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1MKD +31 FT PLINE 1400 FT FM RWY 26 END.
A110-2FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A58-08RISING TERRAIN AT 13:1 STARTING AT 150 FT FM RWY END TO A MAX HEIGHT OF +15 FT AT 385 FT FM END OF RWY.
A81-APTACTVT MIRL RWY 08/26 - CTAF.
A81-BCNACTVT ROTG BCN - CTAF.
GERALDINE (IATA: 5U8) is a public airport located in GERALDINE, MT, US.
