5W5
TRIPLE W
Public
PUB
11 miles SW of RALEIGH, NC
View on
Map
Status
Operational
Coordinates
35° 37' 13"N
78° 42' 01"W
Elevation
244' MSL
Pattern Alt
1244' MSL
Mag Variation
07W
Fuel
None Listed
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
4/18/24-5/16/24
KJNX (16nm)
VFR
1:10 PM EDT
RAW
Broken 9,500'
Viz
10sm
Temp
73°F
Dew
48°F
Pres
30.02"Hg
Wind
260° 3kts
RMK
AO2
KJNX 241710Z AUTO 26003KT 10SM BKN095 23/09 A3002 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
List Your Business
5W5 FBOs, Flight Schools and Ground Support
No FBOs, flight schools or aircraft ground support businesses are listed for this airport.
5W5 Ground Transportation (Taxi, Limo, Car Service)
No ground transportation services are listed for this airport.
5W5 Hotels
No hotels are listed for this airport.
5W5 Restaurants
No restaurants are listed for this airport.
5W5 Other Airport-Related Businesses
No other airport-related businesses are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.7
CTAF
122.7
No communication frequencies available for this airport.

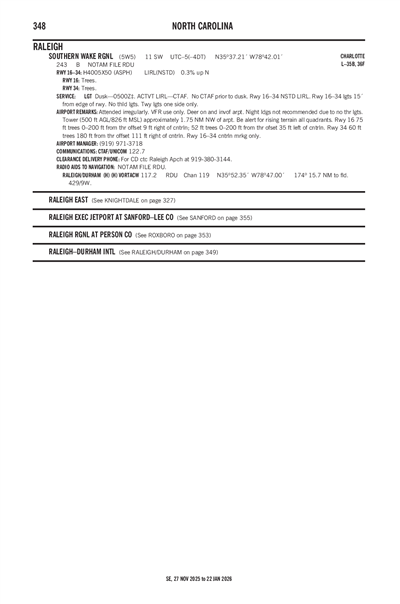

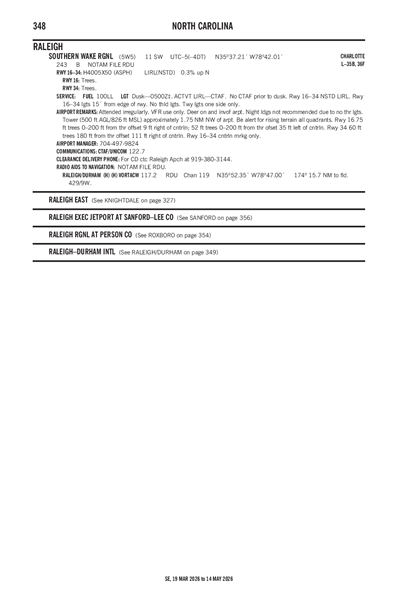

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KRDU (17nm)
RAW
Reported
Wed, 4/24 7:20 AM EDT
Valid
Wed, 4/24 8:00 AM EDT - Thu, 4/25 8:00 AM EDT
VFR
8:00 AM EDT - 2:00 PM EDT
Broken 25,000'
Scattered 10,000'
Viz
6sm
Wind
240° 10kts
VFR
2:00 PM EDT - 7:00 PM EDT
Broken 5,000'
Viz
6sm
Wind
270° 11kts
VFR
7:00 PM EDT - 8:00 AM EDT
Broken 25,000'
Viz
6sm
Wind
350° 5kts
KRDU 241120Z 2412/2512 24010KT P6SM SCT100 BKN250
FM241800 27011KT P6SM BKN050
FM242300 35005KT P6SM BKN250
5W5
Domestic
4/22/24
1344Z
!RDU 04/275 5W5 OBST TOWER LGT (ASR 1006703) 354035.10N0783207.20W (8.8NM ENE 5W5) 2323.5FT (1999.7FT AGL) U/S 2404221344-2405222359
4/4/24
1200Z
!RDU 04/049 5W5 AIRSPACE SEE RDU 04/048 UAS DLY 1200-0300 2404041200-2501020300
4/1/24
2137Z
!RDU 04/008 5W5 OBST TOWER LGT (ASR 1018651) 354206.20N0783500.90W (7.6NM NE 5W5) 701.1FT (324.1FT AGL) U/S 2404012137-2405010001
ATC Tower
No
Attendance
IREG
Owner
TRIPLE W ENTERPRISES INC
7124 BLUE JUPITER COURT
FUQUAY VARINA, NC 27526
Phone: (919) 971-3718
Manager
PAUL WILLIAMS
7124 BLUE JUPITER COURT
FUQUAY VARINA, NC 27526
Phone: (919) 971-3718
FSS
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
NOTAM
RDU
Light Schedule
--
Lights
DUSK-2400 ACTVT LIRL - CTAF. NO CTAF PRIOR TO DUSK.
Beacon
N/A
Wind Indicator
No
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
18
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 16/34
Dimensions
3004 ft. x 40 ft.
Surface Type
ASPH
Surface Cond
Poor
Treatment
NONE
Rwy Edge Lgts
NSTD
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 16
Runway 34
True Heading
154°
334°
Traffic Pattern
Markings
NSTD
NSTD
Markings Condition
POOR
POOR
Latitude
35° 37' 27"N
35° 37' 00"N
Longitude
78° 42' 09"W
78° 41' 53"W
Elevation
243'
235'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
ALL ACFT OVER 6500 LBS PROHIBITED.
A110-10
RWY 16/34 PAEW PARL TWY.
A110-11
DEER ON AND INVOF ARPT.
A110-12
FOR CD CTC RALEIGH APCH AT 919-380-3144.
A110-13
BE ALERT 1000 FT OF TWY NORTH END RWY 16 UNUSBL DUE TO EROSION UNDER PAVEMENT.
A110-14
CAUTION: VEHICLES ON OR INVOF OF RWY 16/34.
A110-2
BE ALERT FOR RISING TRRN ALL QUADRANTS.
A110-3
4 FT DROP-OFF TWY EDGE BOTH SIDES - S END.
A110-4
TOWER (500 FT AGL/ 826 FT MSL) APPROX 1.75 NM NW OF ARPT.
A110-5
NUMEROUS UNLGTD OBSTR INVOF ARPT. NIGHT OR TSNT TFC LDGS NOT RCMDD.
A110-6
RWY 16/34 HAS 4 FT DROP-OFF 20 FT FROM PAVEMENT EDGE ALL SIDES.
A110-7
TWY NOT LIGHTED.
TRIPLE W (IATA: 5W5) is a public airport located in RALEIGH, NC.
