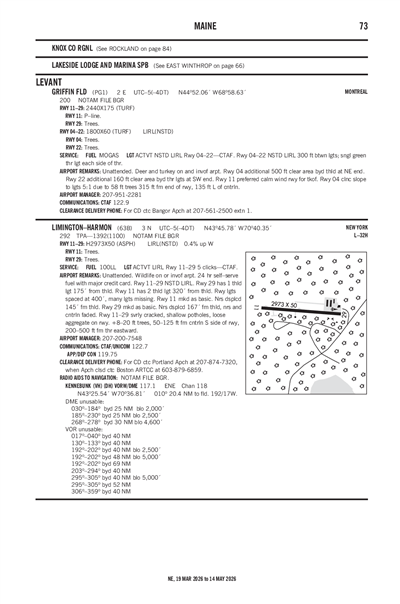

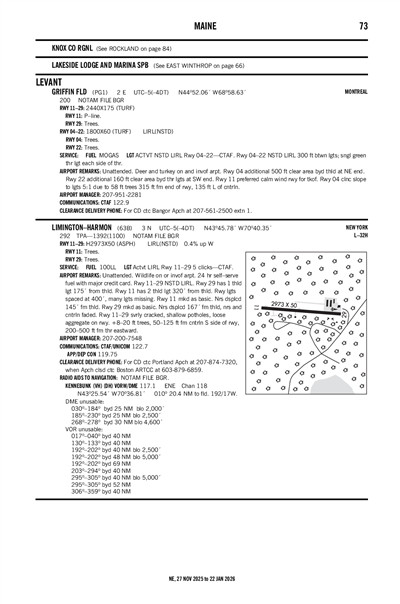

LIMINGTON-HARMON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

63B
Local 63B
LIMINGTON-HARMON
PublicPUB

3 miles N of LIMINGTON, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 45' 47"N 70° 40' 21"W
Elevation
292' MSL
Pattern Alt
1392' MSL
Mag Variation
15°W
Declination
17°W
Fuel
100LL
FSS
BANGOR (BGR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
5/14/26-6/11/26
KPWM (18nm) IFR
11:51 PM EDT
Light Rain
Overcast 500'
7sm
48°F
48°F
29.75"Hg
070° 11kts
Gusts 23kts
AO2 SLP075 LAST P0005 T00890089 $
METAR KPWM 150351Z 07011G23KT 7SM -RA OVC005 09/09 A2975 RMK AO2 SLP075 LAST P0005 T00890089 $
+ Add Your Business

63B FBOs

Promote Listing
Limington-Harmon Airport
UNICOM: 122.7
Phone: (207) 637-2121
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
ACTVT LIRL RWY 11/29 5 CLICKS - CTAF.
UNICOM 122.7

Approach

PORTLAND APPROACH 119.75

Departure

PORTLAND DEPARTURE 119.75

FAA A/FD Pages

Terminal Area Forecast

KPWM (18nm)
Thu, 5/14 7:23 PM EDT
Thu, 5/14 8:00 PM EDT - Fri, 5/15 8:00 PM EDT
LIFR
8:00 PM EDT - 1:00 AM EDT
Light Rain and Mist
Overcast 400'
2sm
080° 9kts
Gusts 21kts
LIFR
1:00 AM EDT - 12:00 PM EDT
Light Rain and Mist
Overcast 300'
1.5sm
060° 11kts
IFR
12:00 PM EDT - 5:00 PM EDT
Light Rain and Mist
Overcast 700'
3sm
060° 8kts
MVFR
5:00 PM EDT - 8:00 PM EDT
Light Rain and Mist
Overcast 1,500'
6sm
120° 6kts
TAF KPWM 142323Z 1500/1524 08009G21KT 2SM -RA BR OVC004
   FM150500 06011KT 1 1/2SM -RA BR OVC003
   FM151600 06008KT 3SM -RA BR OVC007
   FM152100 12006KT 6SM -RA BR OVC015
63B
EffectiveExpiresCategoryNOTAM
Domestic
5/3/26
1351Z
5/31/26
2359Z
!BGR 05/011 63B SVC PCL RWY 11/29 REDL U/S 2605031351-2605312359
5/3/26
1350Z
7/1/26
2359Z
!BGR 05/010 63B AD AP SELF SERVE FUEL NOT AVBL 2605031350-2607012359
No
UNATNDD
STARKWEATHER AIRPORT AUTHORITY, LLC
P.O. BOX 94
ROCHESTER, NH 03868
Phone: 207-200-7548
KYLE STARKWEATHER
12 CROWHILL RD
ROCHESTER, NH 03868
Phone: 207-200-7548
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
BGR
--
ACTVT LIRL RWY 11/29 5 CLICKS - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
None
None
None
None
None

Runway 11/29

2973 ft. x 50 ft.
ASPH
Poor
NONE
NSTD

--
--
--
--
  Runway 11 Runway 29
True Heading 93°273°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 43° 45' 48"N 43° 45' 46"N
Longitude 70° 40' 41"W 70° 40' 01"W
Elevation 292' 279'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1WILDLIFE ON OR INVOF ARPT.
A110-4FOR CD CTC PORTLAND APCH AT 207-874-7320, WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A110-5+8-20 FT TREES, 50-125 FT FM CNTRLN S SIDE OF RWY, 200-500 FT FM THR.EASTWARD.
A33-11/29_CONDSVRLY CRACKED, SHALLOW POTHOLES, LOOSE AGGRETATE ON RWY.
A40-11/29NON-STD LIRL. RWY 29 HAS ONE THR LGT 175 FT FM THR, RWY 11 HAS TWO THR LGTS 320 FT FM THR, RWY LGTS SPACED AT 400 FT, MANY LGTS MISG.
A42-11_CONDMKD AS BASIC, NRS DSPLCD 145 FT FM THR, NRS & CNTRLN FADED.
A42-29_CONDMKD AS BASIC, NRS DSPLCD 167 FT FM THR, NRS & CNTRLN FADED.
A57-11CTLG OBSTN EXCEEDS 45 DEG SLP.
A58-11+2 FT -20 FT BRUSH & TREES 0-200 FT FM THR, 0 FT B; +3 FT -5 FT DITCH 0-200 FT FM THR, 50 FT R OF CNTRLN.
A58-29+15 FT ROAD 50-200 FT FM THR 0-125 FT R; +25 FT POLE 50 FT FM THR 100 FT R; +35 FT PWR LINE 0-200 FT FM THR, 125 FT R; FUEL TANK 0 FT FM THR, 125 FT R.
A70-100LL24 HR SELF-SERVE FUEL WITH MAJOR CREDIT CARD.
A75-HCALL AHD FOR HNGR AVBLY.
A81-APTACTVT LIRL RWY 11/29 5 CLICKS - CTAF.
E111VFR ONLY.
LIMINGTON-HARMON (IATA: 63B) is a public airport located in LIMINGTON, ME, US.
