DIAMONDHEAD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

66Y
DIAMONDHEAD
PublicPUB

0 miles SW of DIAMONDHEAD, MS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 21' 47"N 89° 23' 16"W
14' MSL
1014' MSL
02E
100LL
GREENWOOD (GWO)
NEW ORLEANS
HOUSTON (ZHU)
11/27/25-12/25/25
KMJD (16nm) VFR
8:55 PM CST
Broken 4,200'
10sm
61°F
57°F
29.99"Hg
080° 5kts
AO2
METAR KMJD 180255Z AUTO 08005KT 10SM BKN042 16/14 A2999 RMK AO2
+ Add Your Business

66Y FBOs

Promote Listing
Diamondhead Airport
UNICOM: 123.0
Phone: (985) 774-3830
Other: (228) 255-1900
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 11/27
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.16
Full Serve
Fuel Notes
Prices include tax
Call ahead for availability and pricing of fuel.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

No communication frequencies available for this airport.

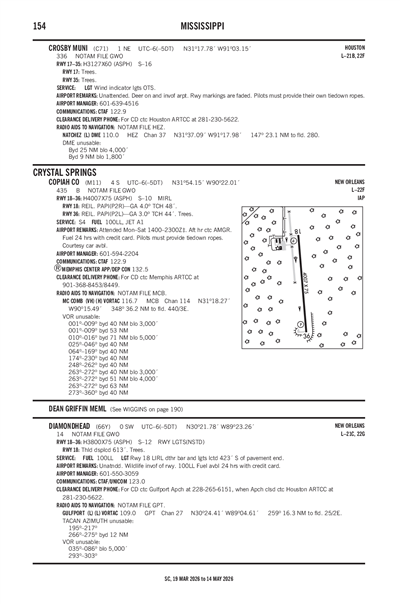

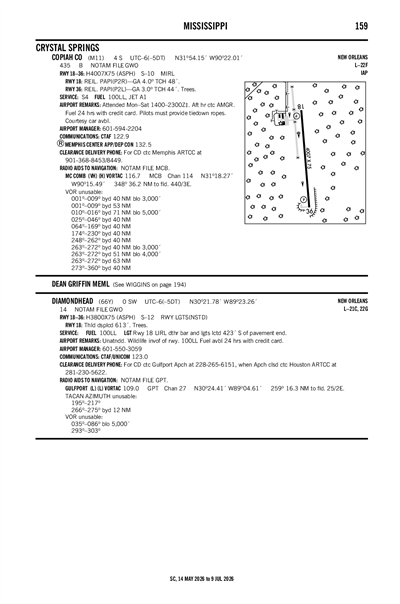

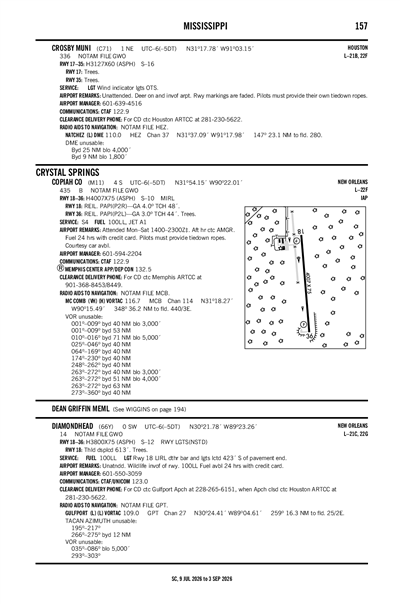

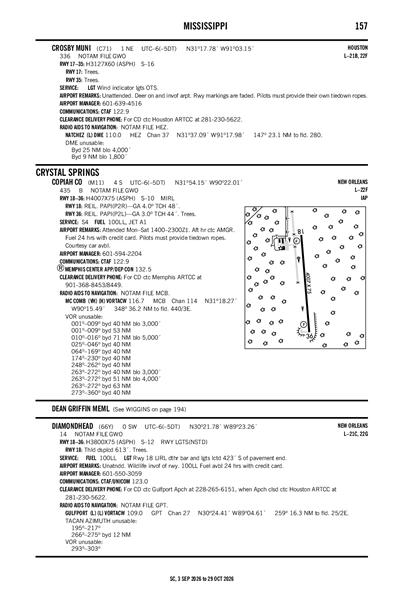

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KGPT (16nm)
Wed, 12/17 5:26 PM CST
Wed, 12/17 6:00 PM CST - Thu, 12/18 6:00 PM CST
MVFR
6:00 PM CST - 10:00 PM CST
Light Rain and Mist
Overcast 5,000'
Broken 4,000'
3sm
070° 6kts
MVFR
10:00 PM CST - 12:00 AM CST
Overcast 4,000'
Broken 2,500'
6sm
100° 8kts
VFR
12:00 AM CST - 8:00 AM CST
Broken 4,500'
Scattered 4,000'
6sm
110° 7kts
IFR
3:00 AM CST - 8:00 AM CST
Thunderstorm and Rain and Mist
Broken 2,500'
2sm
Calm
LIFR
8:00 AM CST - 9:00 AM CST
Thunderstorm and Rain and Mist
Overcast 100'
1sm
Calm
LIFR
8:00 AM CST - 10:00 AM CST
Heavy Showers and Rain and Mist
Overcast 800'
Broken 300'
2sm
130° 7kts
LIFR
10:00 AM CST - 12:00 PM CST
Mist
Overcast 1,500'
Broken 300'
5sm
140° 8kts
LIFR
10:00 AM CST - 12:00 PM CST
Showers and Rain and Mist
Overcast 100'
2sm
Calm
LIFR
12:00 PM CST - 2:00 PM CST
Light Showers and Rain and Mist
Overcast 400'
4sm
Calm
IFR
12:00 PM CST - 6:00 PM CST
Mist
Broken 2,000'
Broken 800'
6sm
170° 9kts
TAF KGPT 172326Z 1800/1824 07006KT 3SM -RA BR BKN040 OVC050
   FM180400 10008KT P6SM BKN025 OVC040
   FM180600 11007KT P6SM SCT040 BKN045
   PROB30 1809/1814 2SM TSRA BR BKN025CB
   FM181400 13007KT 2SM +SHRA BR BKN003 OVC008
   PROB30 1814/1815 1SM TSRA BR OVC001CB
   FM181600 14008KT 5SM BR BKN003 OVC015
   PROB30 1816/1818 2SM SHRA BR OVC001
   FM181800 17009KT 6SM BR BKN008 BKN020
   PROB30 1818/1820 4SM -SHRA BR OVC004
66Y
EffectiveExpiresCategoryNOTAM
Domestic
12/16/25
1646Z
1/16/26
2300Z
!GWO 12/350 66Y OBST TOWER LGT (ASR 1324101) 303044.10N0892043.89W (9.2NM NNE 66Y) 469FT (309FT AGL) U/S 2512161646-2601162300
8/9/18
1941Z
Runway!GWO 08/187 66Y RWY 18 THR DISPLACED 423FT 1808091941-PERM
No
UNATNDD
DIAMONDHEAD PROPERTY
5300 DIAMONDHEAD CIRCLE
DIAMONDHEAD, MS 39525
Phone: 228-255-1900
BRADLEY HOLLIDAY
1200 AIRPORT CIRCLE
DIAMONDHEAD, MS 39525
Phone: 601-550-3059
GREENWOOD FSS (GWO)
Toll Free: 1-800-WX-BRIEF
GWO
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 18/36

3800 ft. x 75 ft.
ASPH
Good
NONE
NSTD

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 22' 06"N 30° 21' 28"N
Longitude 89° 23' 16"W 89° 23' 16"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1WILDLIFE INVOF RWY.
A110-2FOR CD CTC GULFPORT APCH AT 228-265-6151, WHEN APCH CLSD CTC HOUSTON ARTCC AT 281-230-5622.
DIAMONDHEAD (IATA: 66Y) is a public airport located in DIAMONDHEAD, MS.
