MESQUITE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

67L
Local 67L
MESQUITE
PublicPUB

2 miles N of MESQUITE, NV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 49' 59"N 114° 03' 21"W
Elevation
1978' MSL
Pattern Alt
2978' MSL
Mag Variation
11°E
Declination
11°E
Fuel
JET A, 100LL
FSS
RENO (RNO)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
4/16/26-5/14/26
KSGU (29nm) VFR
2:56 PM MDT
Clear
10sm
74°F
13°F
29.78"Hg
250° 11kts
AO2 SLP065 T02331106 56025
METAR KSGU 242056Z AUTO 25011KT 10SM CLR 23/M11 A2978 RMK AO2 SLP065 T02331106 56025
+ Add Your Business

67L FBOs

Promote Listing
Mesquite Airport
UNICOM: 122.8
Phone: (702) 346-2841
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.15
Full Serve 7.29 7.39
Fuel Notes
Prices include tax
100LL SELF SERVICE
JETA ON TRUCK ONLY
Fuel Hours
100LL SELF SERVICE AVAILABLE 24 HOURS
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.525
(702) 345-7634

Common

CTAF 122.8
ACTVT MIRL RWY 02/20 - CTAF.
UNICOM 122.8

Center

L.A. CENTER CENTER 124.2
LOW, APCH/DEP CTL SVC PRVDD BY LOS ANGELES ARTCC (ZLA) ON FREQS 124.2/343.6 (CEDAR CITY RCAG).

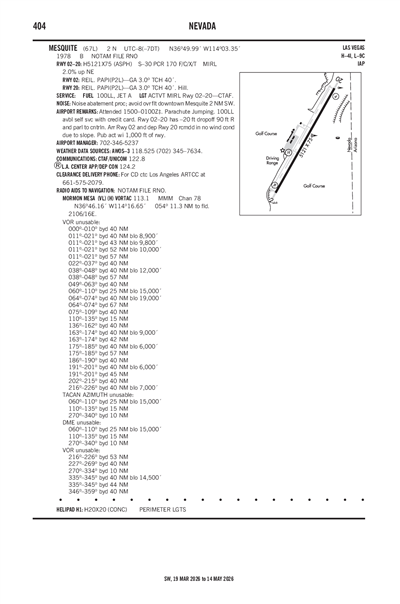

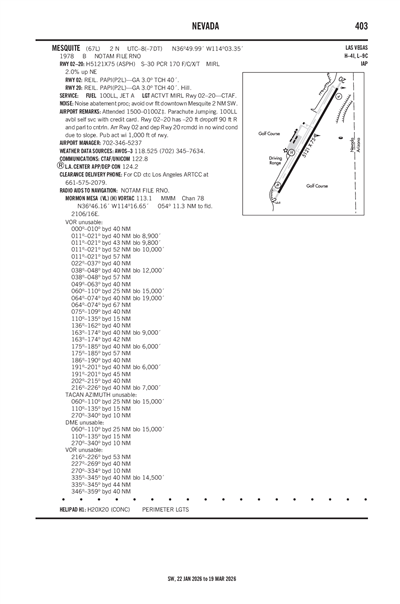

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSGU (29nm)
Fri, 4/24 11:33 AM MDT
Fri, 4/24 12:00 PM MDT - Sat, 4/25 12:00 PM MDT
VFR
12:00 PM MDT - 2:00 PM MDT
Scattered 20,000'
6sm
VRB° 4kts
VFR
2:00 PM MDT - 9:00 PM MDT
Scattered 20,000'
6sm
250° 13kts
Gusts 21kts
VFR
9:00 PM MDT - 12:00 PM MDT
Scattered 20,000'
6sm
VRB° 4kts
TAF KSGU 241733Z 2418/2518 VRB04KT P6SM SCT200
   FM242000 25013G21KT P6SM SCT200
   FM250300 VRB04KT P6SM SCT200
67L
EffectiveExpiresCategoryNOTAM
Domestic
4/25/26
0145Z
4/26/26
0230Z
!RNO 04/181 67L AIRSPACE PJE WI AN AREA DEFINED AS 1.5NM RADIUS OF MMM063010.4 SFC-6000FT DLY 0145-0230 2604250145-2604260230
1/13/26
1251Z
Runway!RNO 01/100 67L RWY 02 PAPI UNUSABLE 2601131251-2607132111EST
No
0700-1700
CITY OF MESQUITE
10 E MESQUITE BLVD
MESQUITE, NV 89027
Phone: 702-346-5295
TRAVIS ANDERSON
10 E MESQUITE BLVD
MESQUITE, NV 89027
Phone: 702-346-5237
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
ACTVT MIRL RWY 02/20 - CTAF.
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
Air Ambulance
Cargo Handling
Glider Service
Parachute Jump Activity

Runway 02/20

5121 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
--
--
--
  Runway 02 Runway 20
True Heading 29°209°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 49' 37"N 36° 50' 21"N
Longitude 114° 03' 37"W 114° 03' 06"W
Elevation 1,876' 1,978'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

20 ft. x 20 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 36° 49' 54"N N/A
Longitude 114° 03' 30"W N/A
Elevation 1,910' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3NOISE ABATEMENT PROC; AVOID OVR FLT DOWNTOWN MESQUITE 2 NM SW.
A110-4PUB ACT WI 1000 FT OF RWY.
A110-6FOR CD CTC LOS ANGELES ARTCC AT 661-575-2079.
A110-7OTR CTC FBO - 702-246-2841/262-707-5980.
A30-02/20-20 FT DROPOFF 90 FT R & PARL TO CNTRLN. ARR RWY 02 & DEP RWY 20 RCMDD IN NO WIND COND DUE TO SLOPE.
A39-02/20PCR VALUE: 170/F/C/X/T
A58-02+3 FT FENCE 88 FT L & PARL TO CNTRLN.
A70-100LL100LL AVBL SELF SVC WITH CREDIT CARD.
A81-APTACTVT MIRL RWY 02/20 - CTAF.
MESQUITE (IATA: 67L) is a public airport located in MESQUITE, NV, US.
