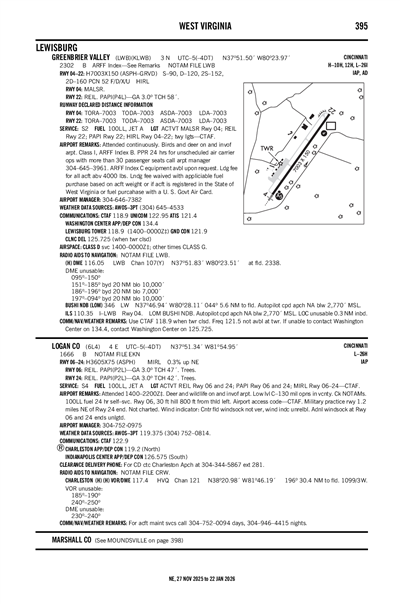

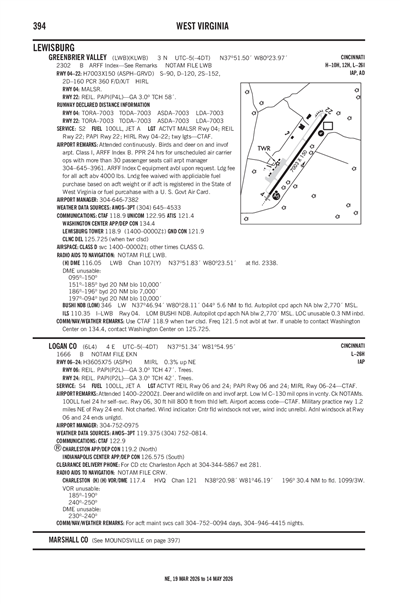

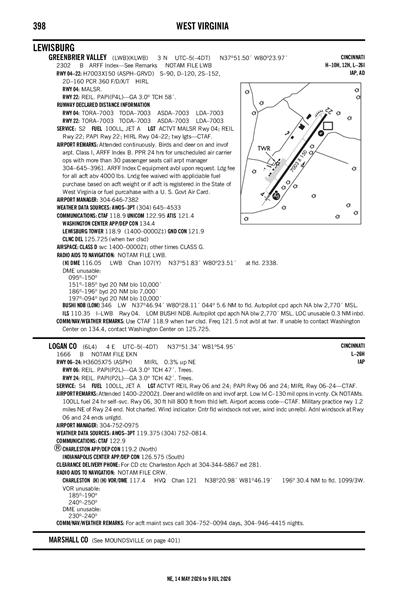

LOGAN COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

6L4
LOGAN COUNTY
PublicPUB

4 miles E of LOGAN, WV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 51' 20"N 81° 54' 57"W
1666' MSL
2666' MSL
07W
Jet A, 100LL
ELKINS (EKN)
CINCINNATI
INDIANAPOLIS (ZID)
4/18/24-5/16/24
K6L4 VFR
12:35 PM EDT
Broken 6,000'
Scattered 4,900'
Scattered 3,900'
10sm
63°F
45°F
30.06"Hg
250° 5kts
Gusts 12kts
AO2
K6L4 241635Z AUTO 25005G12KT 10SM SCT039 SCT049 BKN060 17/07 A3006 RMK AO2
List Your Business

6L4 FBOs, Flight Schools and Ground Support

Promote Listing
Logan County Airport
Freq: 122.9
Phone: (304) 752-0975
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.59 4.49
Full Serve

6L4 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

6L4 Hotels

No hotels are listed for this airport.

6L4 Restaurants

No restaurants are listed for this airport.

6L4 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
304-752-0814
 119.375

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCRW (35nm)
Wed, 4/24 11:08 AM EDT
Wed, 4/24 11:00 AM EDT - Thu, 4/25 8:00 AM EDT
MVFR
11:00 AM EDT - 12:00 PM EDT
Broken 2,500'
6sm
290° 7kts
VFR
12:00 PM EDT - 2:00 PM EDT
Broken 3,500'
6sm
300° 6kts
VFR
2:00 PM EDT - 4:00 AM EDT
Scattered 3,500'
6sm
330° 6kts
MVFR
4:00 AM EDT - 8:00 AM EDT
Mist
Scattered 100'
3sm
360° 4kts
KCRW 241508Z 2415/2512 29007KT P6SM BKN025
   FM241600 30006KT P6SM BKN035
   FM241800 33006KT P6SM SCT035
   FM250800 36004KT 3SM BR SCT001
6L4
Domestic
4/25/241530Z !EKN 04/208 6L4 AIRSPACE AIRDROP WI AN AREA DEFINED AS 3NM RADIUS OF 375200N0815300W (1.6NM NE 6L4) SFC-6000FT AGL 2404251530-2404252000
4/12/241502Z !EKN 04/130 6L4 OBST TOWER LGT (ASN 2023-AEA-8990-OE) 375248N0820902W (11.2NM W 6L4) 1780FT (265FT AGL) U/S 2404121502-2405271500
No
0900-1700
LOGAN COUNTY ARPT AUTH
PO BOX 1973
LOGAN, WV 25601
Phone: 304-752-0975
MEGAN R JOHNSON
P O BOX 1793
LOGAN, WV 25601
Phone: 304-752-0975
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
EKN
--
ACTVT REIL RWY 06 & 24; PAPI RWY 06 & 24; MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
6
2
1
5
0
0
Major
Major
None
None
Air Ambulance
Avionics
Pilot Instruction

Runway 06/24

3605 ft. x 75 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 06 Runway 24
True Heading 58°238°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 37° 51' 11"N 37° 51' 30"N
Longitude 81° 55' 16"W 81° 54' 38"W
Elevation 1,654' 1,666'
Threshold Crossing Height 47 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1RWY 06, 30 FT HILL 800 FT FROM THLD LEFT.
A110-10LOW LVL C-130 MIL OPNS IN VCNTY. CK NOTAMS.
A110-4DEER AND WILDLIFE ON & INVOF ARPT.
A110-6AIRPORT ACCESS CODE- CTAF.
A110-8FOR CD CTC CHARLESTON APCH AT 304-344-5867 EXT 281.
A110-9MILITARY PRACTICE RWY 1.2 MILES NE OF RWY 24 END. NOT CHARTED.
LOGAN COUNTY (IATA: 6L4) is a public airport located in LOGAN, WV.
