iFlightPlanner



...

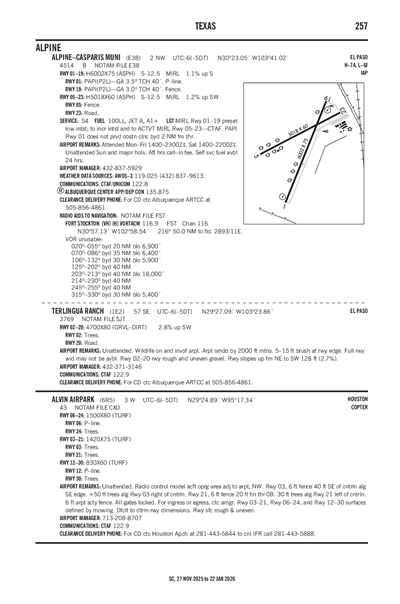

ALVIN AIRPARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

6R5
ALVIN AIRPARK
PublicPUB

3 miles W of ALVIN, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 24' 53"N 95° 17' 20"W
43' MSL
1043' MSL
06E
None Listed
MONTGOMERY COUNTY (CXO)
HOUSTON
HOUSTON (ZHU)
4/18/24-5/16/24
KLVJ (7nm) MVFR
10:53 PM CDT
Broken 1,200'
10sm
74°F
70°F
29.93"Hg
140° 12kts
AO2 SLP135 T02330211
KLVJ 260353Z AUTO 14012KT 10SM BKN012 23/21 A2993 RMK AO2 SLP135 T02330211
List Your Business

6R5 FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

6R5 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

6R5 Hotels

No hotels are listed for this airport.

6R5 Restaurants

No restaurants are listed for this airport.

6R5 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KEFD (13nm)
Thu, 4/25 11:00 PM CDT
Thu, 4/25 11:00 PM CDT - Sat, 4/27 5:00 AM CDT
MVFR
11:00 PM CDT - 9:00 AM CDT
Mist
Overcast 1,500'
4.97sm
29.85"Hg
140° 12kts
Gusts 18kts
Light Turbulence: 300 - 3,300'
VFR
Becoming 9:00 AM CDT - 8:00 PM CDT
Mist
Few 1,000'
5.59sm
29.88"Hg
160° 20kts
Gusts 25kts
Light Turbulence: 300 - 3,300'
IFR
Becoming 8:00 PM CDT - 11:00 PM CDT
Light Showers and Rain
Broken 900'
4.97sm
29.82"Hg
150° 9kts
Light Turbulence: 200 - 3,200'
IFR
Temporary 8:00 PM CDT - 11:00 PM CDT
Light Thunderstorm and Rain
Overcast 1,700'
Broken 900'
4.97sm
VRB° 25kts
Gusts 30kts
MVFR
Becoming 11:00 PM CDT - 1:00 AM CDT
Mist
Few 200'
4.97sm
29.85"Hg
150° 12kts
Light Turbulence: 200 - 3,200'
LIFR
Becoming 1:00 AM CDT - 5:00 AM CDT
Mist
Broken 200'
4.97sm
29.82"Hg
150° 12kts
Light Turbulence: 200 - 3,200'
TAF KEFD 260400Z 2604/2710 14012G18KT 8000 BR OVC015 510033 QNH2985INS
   BECMG 2614/2615 16020G25KT 9000 BR FEW010 510033 QNH2988INS
   BECMG 2701/2702 15009KT 8000 -SHRA BKN009 510023 QNH2981INS
   TEMPO 2701/2704 VRB25G30KT 8000 -TSRA BKN009CB OVC017
   BECMG 2704/2705 15012KT 8000 BR FEW002 510023 QNH2984INS
   BECMG 2706/2707 15012KT 8000 BR BKN002 510023 QNH2983INS TX28/2619Z TN22/2611Z
6R5
Domestic
4/23/241726Z !CXO 04/670 6R5 OBST TOWER LGT (ASR 1047499) 292560.00N0951518.00W (2.1NM ENE 6R5) 423.9FT (379.9FT AGL) U/S 2404231726-2405071600
3/19/241642Z !CXO 03/474 6R5 OBST TOWER LGT (ASR 1048576) 291756.80N0951412.10W (7.4NM SSE 6R5) 1984.9FT (1962.9FT AGL) U/S 2403191642-2405031641
2/1/240020Z !CXO 02/002 6R5 OBST TOWER LGT (ASR 1265887) 292229.40N0951556.60W (2.7NM SSE 6R5) 300.9FT (270.0FT AGL) U/S 2402010020-2404300500
4/20/231546Z !CXO 04/464 6R5 AIRSPACE SEE ZHU 04/460 UAS 2304201546-2503102359
No
UNATNDD
RSNMART PROPERTIES, LLC
2102 CHERRY HILL DR
LEAGUE CITY, TX 77573
Phone: (713) 208-8707
RANDY SMART
12357 CR 280
ALVIN, TX 77511
Phone: (713) 208-8707
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
CXO
--
--
N/A
Yes
No
No
Hanger, Tie-Down
No
3
0
0
0
0
13
None
None
None
None
None

Runway 03/21

1420 ft. x 75 ft.
TURF
Poor
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 41°221°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 29° 24' 48"N 29° 24' 58"N
Longitude 95° 17' 22"W 95° 17' 12"W
Elevation 41' 41'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 06/24

1500 ft. x 80 ft.
TURF
Poor
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 71°251°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 29° 24' 52"N 29° 24' 57"N
Longitude 95° 17' 28"W 95° 17' 12"W
Elevation 41' 42'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

830 ft. x 60 ft.
TURF
Poor
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading 131°311°
Traffic Pattern
Markings
Markings Condition
Latitude 29° 24' 53"N 29° 24' 48"N
Longitude 95° 17' 29"W 95° 17' 22"W
Elevation 42' 41'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 03, 6 FT FENCE 40 FT SE OF CNTRLN ALG SE EDGE. +50 FT TREES ALG RWY 03 RIGHT OF CNTRLN.
A110-2RWY 21, 6 FT FENCE 20 FT FM THR 0B. 30 FT TREES ALG RWY 21 LEFT OF CNTRLN.
A110-4RADIO CONTROL MODEL ACFT OPRG AREA ADJ TO ARPT, NW.
A110-66 FT ARPT SCTY FENCE. ALL GATES LOCKED. FOR INGRESS OR EGRESS, CTC AMGR.
A110-7FOR CD CTC HOUSTON APCH AT 281-443-5844 TO CNL IFR CALL 281-443-5888.
ALVIN AIRPARK (IATA: 6R5) is a public airport located in ALVIN, TX.
