iFlightPlanner



...

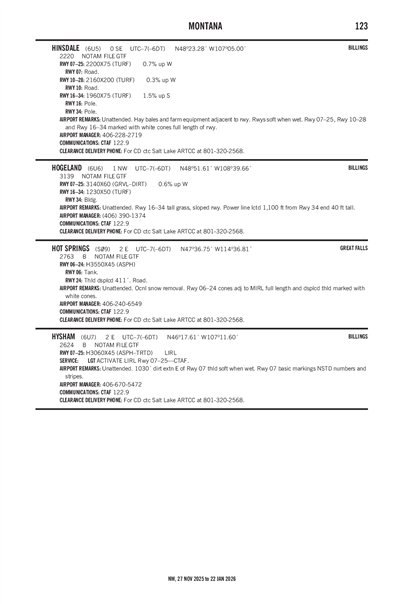

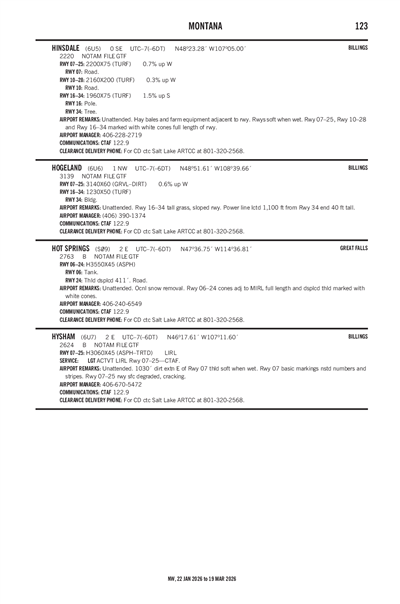

HINSDALE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

6U5
Local 6U5
HINSDALE
PublicPUB

0 miles SE of HINSDALE, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 23' 17"N 107° 04' 60"W
Elevation
2220' MSL
Pattern Alt
3220' MSL
Mag Variation
10°E
Declination
14°E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
BILLINGS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
5/14/26-6/11/26
KGGW (21nm) VFR
9:53 PM MDT
Broken 4,500'
10sm
60°F
49°F
29.97"Hg
300° 5kts
AO2 SLP149 T01560094 TSNO
METAR KGGW 040353Z AUTO 30005KT 10SM BKN045 16/09 A2997 RMK AO2 SLP149 T01560094 TSNO
+ Add Your Business

6U5 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KGGW (21nm)
Wed, 6/3 5:26 PM MDT
Wed, 6/3 6:00 PM MDT - Thu, 6/4 6:00 PM MDT
VFR
6:00 PM MDT - 9:00 PM MDT
Few 6,000'
6sm
290° 12kts
VFR
9:00 PM MDT - 4:00 AM MDT
Few 4,000'
6sm
VRB° 6kts
VFR
4:00 AM MDT - 8:00 AM MDT
Mist
Few 5,000'
6sm
VRB° 6kts
VFR
8:00 AM MDT - 12:00 PM MDT
Few 5,000'
6sm
VRB° 6kts
VFR
12:00 PM MDT - 6:00 PM MDT
Scattered 5,000'
6sm
280° 10kts
VFR
2:00 PM MDT - 6:00 PM MDT
Light Thunderstorm and Rain
Broken 5,000'
6sm
Calm
TAF KGGW 032326Z 0400/0424 29012KT P6SM FEW060
   FM040300 VRB06KT P6SM FEW040
   FM041000 VRB06KT 6SM BR FEW050
   FM041400 VRB06KT P6SM FEW050
   FM041800 28010KT P6SM SCT050
   PROB30 0420/0424 6SM -TSRA BKN050CB
6U5
No NOTAM Available
No
UNATNDD
VALLEY COUNTY
COUNTY COURTHOUSE
GLASGOW, MT 59241
Phone: 406-228-8221
RUSSELL LEADER
89 AIRPORT RD
GLASGOW, MT 59230
Phone: 406-228-2719
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
None

Runway 07/25

2200 ft. x 75 ft.
TURF
Good
NONE


--
--
--
--
  Runway 07 Runway 25
True Heading 97°277°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 48° 23' 17"N 48° 23' 14"N
Longitude 107° 05' 16"W 107° 04' 44"W
Elevation 2,203' 2,188'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

2160 ft. x 200 ft.
TURF
Good
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading 123°303°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 48° 23' 26"N 48° 23' 14"N
Longitude 107° 05' 10"W 107° 04' 43"W
Elevation 2,192' 2,185'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

1960 ft. x 75 ft.
TURF
Good
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 179°359°
Traffic Pattern
Markings
Markings Condition
Latitude 48° 23' 24"N 48° 23' 05"N
Longitude 107° 05' 04"W 107° 05' 04"W
Elevation 2,190' 2,220'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RYS SOFT WHEN WET.
A110-6HAY BALES & FARM EQUIPMENT ADJACENT TO RY.
A110-7FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A30-16/34RY 16/34 MKD WITH WHITE CONES FULL LENGTH OF RY.
A42-07_MARK07/25 MKD WITH WHITE CONES FULL LENGTH OF RY.
A42-10_MARK10/28 MKD WITH WHITE CONES FULL LENGTH OF RY.
A52-16RWY 16 PLINE PR MARKED WITH 1 GLOBE.
A58-344 FT TALL FENCE 10 FT FM RWY END.
HINSDALE (IATA: 6U5) is a public airport located in HINSDALE, MT, US.
