BETHANY MEML
PublicPUB

2 miles NE of BETHANY, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 16' 37"N 94° 00' 27"W
Elevation
1035' MSL
Pattern Alt
2035' MSL
Mag Variation
1°E
Declination
4°E
Fuel
None Listed
FSS
COLUMBIA (COU)
Sectional
OMAHA
ARTCC
KANSAS CITY (ZKC)
Data Effective
5/14/26-6/11/26
KLWD (22nm) VFR
6:53 AM CDT
Few 4,100'
10sm
63°F
55°F
30.07"Hg
160° 7kts
AO2 SLP176 T01720128 10189 20167 57003
METAR KLWD 041153Z AUTO 16007KT 10SM FEW041 17/13 A3007 RMK AO2 SLP176 T01720128 10189 20167 57003
+ Add Your Business

75K FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
LIRL RY 03/21 THREE CLICKS TO ACTVT CTAF.

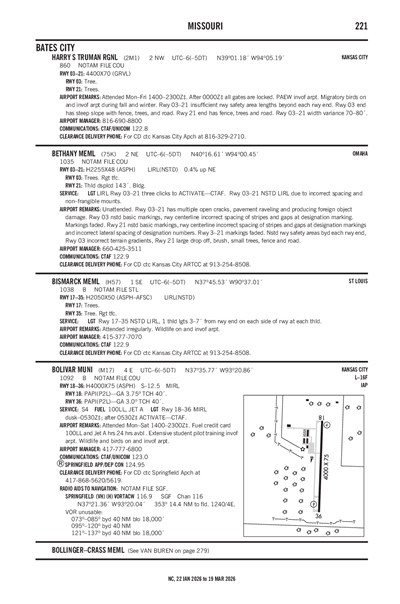

FAA A/FD Pages

Terminal Area Forecast

KSTJ (51nm)
Thu, 6/4 6:39 AM CDT
Thu, 6/4 7:00 AM CDT - Fri, 6/5 7:00 AM CDT
VFR
7:00 AM CDT - 1:00 PM CDT
Scattered 10,000'
Scattered 4,000'
6sm
190° 10kts
VFR
1:00 PM CDT - 7:00 PM CDT
Light Thunderstorm and Rain
Broken 3,500'
N/A
Calm
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 4,500'
6sm
190° 12kts
Gusts 22kts
VFR
7:00 PM CDT - 10:00 PM CDT
Light Showers and Rain
Broken 3,500'
N/A
Calm
VFR
7:00 PM CDT - 10:00 PM CDT
Broken 15,000'
Scattered 4,000'
6sm
170° 11kts
VFR
10:00 PM CDT - 5:00 AM CDT
Light Showers and Rain
Broken 7,000'
6sm
180° 10kts
Gusts 20kts
VFR
5:00 AM CDT - 7:00 AM CDT
Broken 4,000'
6sm
200° 10kts
Gusts 18kts
TAF KSTJ 041139Z 0412/0512 19010KT P6SM SCT040 SCT100
   FM041800 19012G22KT P6SM BKN045
   PROB30 0418/0424 -TSRA BKN035CB
   FM050000 17011KT P6SM SCT040 BKN150
   PROB30 0500/0503 -SHRA BKN035
   FM050300 18010G20KT 6SM -SHRA BKN070
   FM051000 20010G18KT P6SM BKN040
75K
EffectiveExpiresCategoryNOTAM
Domestic
5/26/26
1426Z
8/25/26
0400Z
!COU 05/507 75K OBST TOWER LGT (ASR 1003479) 401522.10N0940924.20W (7.0NM W 75K) 1372.0FT (358.9FT AGL) U/S 2605261426-2608250400
5/25/26
0813Z
7/9/26
0813Z
!COU 05/493 75K OBST TOWER LGT (ASR 1304674) 401503.07N0940102.12W (1.6NM SSW 75K) 1249FT (245FT AGL) U/S 2605250813-2607090813
No
UNATNDD
CITY OF BETHANY
PO BOX 344
BETHANY, MO 64424
Phone: 660-425-3511
CITY ADMINISTRATOR
PO BOX 344
BETHANY, MO 64424
Phone: 660-425-3511
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
LIRL RY 03/21 THREE CLICKS TO ACTVT CTAF.
N/A
Yes
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 03/21

2255 ft. x 48 ft.
ASPH
Poor
NONE
NSTD

--
--
--
--
  Runway 03 Runway 21
True Heading 32°212°
Traffic Pattern Right
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 40° 16' 27"N 40° 16' 46"N
Longitude 94° 00' 34"W 94° 00' 19"W
Elevation 1,015' 1,025'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3NSTD RY SAFETY AREAS BYD EACH RY END; RY 03 INCORRECT TERRAIN GRADIENTS; RY 21 LARGE DROP OFF, BRUSH, SMALL TREES, FENCE AND ROAD.
A110-4FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A33-03/21_CONDRY HAS MULTIPLE OPEN CRACKS, PAVEMENT RAVELING AND PRODUCING FOD.
A40-03/21LIRL NSTD DUE TO INCORRECT SPACING AND NON-FRANGIBLE MOUNTS.
A42-03_CONDRWY 03 MARKINGS FADED
A42-03_MARKRY 03 NSTD BSC MARKINGS; RY CNTRLN INCORRECT SPACING OF STRIPES & GAPS AT DESIGNATION MARKING.
A42-21_CONDRWY 21 MARKINGS FADED
A42-21_MARKRY 21 NSTD BSC MARKINGS; RY CNTRLN INCORRECT SPACING OF STRIPES & GAPS AT DESIGNATION MARKING & INCORRECT LATERAL SPACING OF DESIGNATION NMBRS.
A57-21RY 21 APCH SLOPE 0:1 TO DSPLCD THLD. +1-51 FT TREES; BRUSH; FENCES; UTILITY LINES; POLES; HIGH GND & CONSTRUCTION EQUIP; 0-300 FT FM DSPLCD THLD L/R OF CNTRLN; 9:1 BASED ON DSPLCD THLD.
A58-03RY 03 +1'-3' GND 0'-200' FM RY END, L & R.
A58-21+1-51 FT BRUSH; TREES; FENCES; ROADS; UTILITY LINES &POLES 0-200 FT FM RY END L/R.
A81-APTLIRL RY 03/21 THREE CLICKS TO ACTVT CTAF.
BETHANY MEML (IATA: 75K) is a public airport located in BETHANY, MO, US.
