iFlightPlanner



...

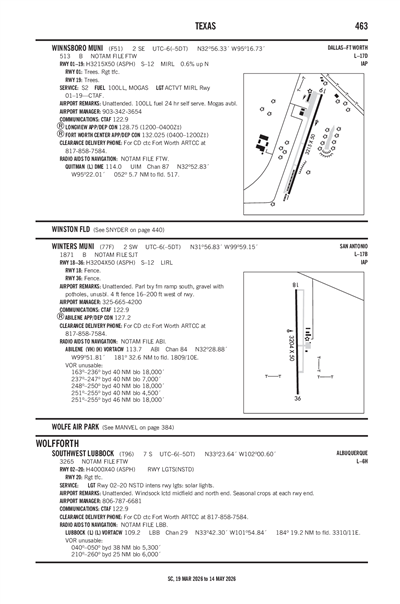

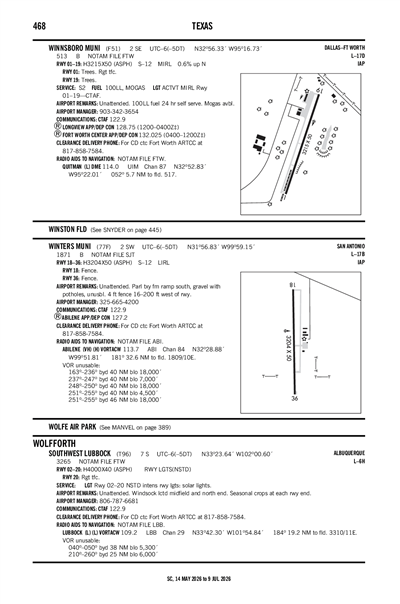

WINTERS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

77F
Local 77F
WINTERS MUNI
PublicPUB

2 miles SW of WINTERS, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 56' 50"N 99° 59' 09"W
Elevation
1871' MSL
Pattern Alt
2871' MSL
Mag Variation
5°E
Declination
4°E
Fuel
None Listed
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
FORT WORTH (ZFW)
Data Effective
5/14/26-6/11/26
KDYS (28nm) VFR
9:55 PM CDT
Scattered 16,000'
10sm
81°F
62°F
30.02"Hg
150° 8kts
AO2 SLP141 T02720168 52015
METAR KDYS 040255Z AUTO 15008KT 10SM SCT160 27/17 A3002 RMK AO2 SLP141 T02720168 52015
+ Add Your Business

77F FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

Approach

ABILENE APPROACH 127.2

Departure

ABILENE DEPARTURE 127.2

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDYS (28nm)
Wed, 6/3 7:39 PM CDT
Wed, 6/3 7:00 PM CDT - Fri, 6/5 1:00 AM CDT
VFR
7:00 PM CDT - 9:00 PM CDT
Thunderstorm in vicinity
Broken 14,000'
Scattered 5,500'
6sm
30.00"Hg
140° 12kts
MVFR
Temporary 7:00 PM CDT - 9:00 PM CDT
Thunderstorm and Rain
Broken 5,500'
3.73sm
VRB° 12kts
Gusts 18kts
VFR
Becoming 9:00 PM CDT - 4:00 AM CDT
Broken 14,000'
Scattered 5,000'
6sm
30.03"Hg
140° 12kts
VFR
Becoming 4:00 AM CDT - 2:00 PM CDT
Sky Clear
6sm
29.94"Hg
180° 9kts
VFR
Becoming 2:00 PM CDT - 6:00 PM CDT
Scattered 5,000'
6sm
29.85"Hg
160° 12kts
VFR
Becoming 6:00 PM CDT - 1:00 AM CDT
Scattered 7,000'
6sm
29.85"Hg
150° 12kts
Gusts 18kts
TAF AMD KDYS 040039Z 0400/0506 14012KT 9999 VCTS SCT055CB BKN140 QNH2999INS
   TEMPO 0400/0402 VRB12G18KT 6000 TSRA BKN055CB
   BECMG 0402/0403 14012KT 9999 NSW SCT050 BKN140 QNH3002INS
   BECMG 0409/0410 18009KT 9999 SKC QNH2994INS
   BECMG 0419/0420 16012KT 9999 SCT050 QNH2985INS
   BECMG 0423/0424 15012G18KT 9999 SCT070 QNH2986INS TX33/0421Z TN20/0411Z
77F
EffectiveExpiresCategoryNOTAM
Domestic
5/30/26
1353Z
6/10/26
2359Z
!SJT 05/482 77F OBST TOWER LGT (ASR 1259040) 315737.90N1000631.20W (6.3NM W 77F) 2221.5FT (269.7FT AGL) U/S 2605301353-2606102359
5/21/26
0218Z
7/5/26
0217Z
!SJT 05/312 77F OBST TOWER LGT (ASN 2006-ASW-7022-OE) 315614N1002854W (25.4NM W 77F) 2365FT (315FT AGL) U/S 2605210218-2607050217
5/20/26
1534Z
6/20/26
1129Z
!SJT 05/303 77F OBST TOWER LGT (ASR 1295481) 321313.40N1000251.80W (16.6NM N 77F) 2811.7FT (354.0FT AGL) U/S 2605201534-2606201129
5/11/26
0026Z
6/11/26
2359Z
!SJT 05/118 77F OBST TOWER LGT (ASN 2007-ASW-4171-OE) 315738N1000631W (6.3NM W 77F) 2222FT (270FT AGL) U/S 2605110026-2606112359
4/26/26
1336Z
6/10/26
0400Z
!SJT 04/329 77F OBST TOWER LGT (ASR 1052923) 315347.60N1002347.50W (21.3NM W 77F) 2377.0FT (420.9FT AGL) U/S 2604261336-2606100400
3/30/26
2211Z
6/29/26
0400Z
!SJT 03/412 77F OBST TOWER LGT (ASR 1201364) 320150.10N0994610.50W (12.2NM ENE 77F) 2723.1FT (503.0FT AGL) U/S 2603302211-2606290400
No
UNATNDD
CITY OF WINTERS
310 S MAIN
WINTERS, TX 79567
Phone: 325-754-4424
RICHARD HUMPHREYS
129 AVENIDA CORTEZ
ABILENE, TX 79602
Phone: 325-665-4200
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
SJT
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 18/36

3204 ft. x 50 ft.
ASPH
Excellent
NONE
LOW

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 57' 06"N 31° 56' 34"N
Longitude 99° 59' 09"W 99° 59' 09"W
Elevation 1,866' 1,871'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-14 FT FENCE 16-200 FT WEST OF RWY.
A110-2PARL TXY FM RAMP SOUTH, GRAVEL WITH POTHOLES, UNUSBL.
A110-3FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A58-185 FT FENCE, 0-199 FT DSTC, 160-196 FT R.
A58-364 FT FENCE 0-199 FT DSTC-196 FT R.
WINTERS MUNI (IATA: 77F) is a public airport located in WINTERS, TX, US.
